Delta Electronics Network Device VFD-S User Manual

Revision August 2008, SE09, SW V2.61 1-1
Chapter 1 Introduction
1.1 Receiving and Inspection
This VFD-S AC motor drive has gone through rigorous quality control tests at the factory before
shipment. After receiving the AC motor drive, please check for the following:

Check to make sure that the package includes an AC motor drive, the User
Manual/Quick Start and CD, dust covers and rubber bushings.

Inspect the unit to assure it was not damaged during shipment.

Make sure that the part number indicated on the nameplate corresponds with the part
number of your order.

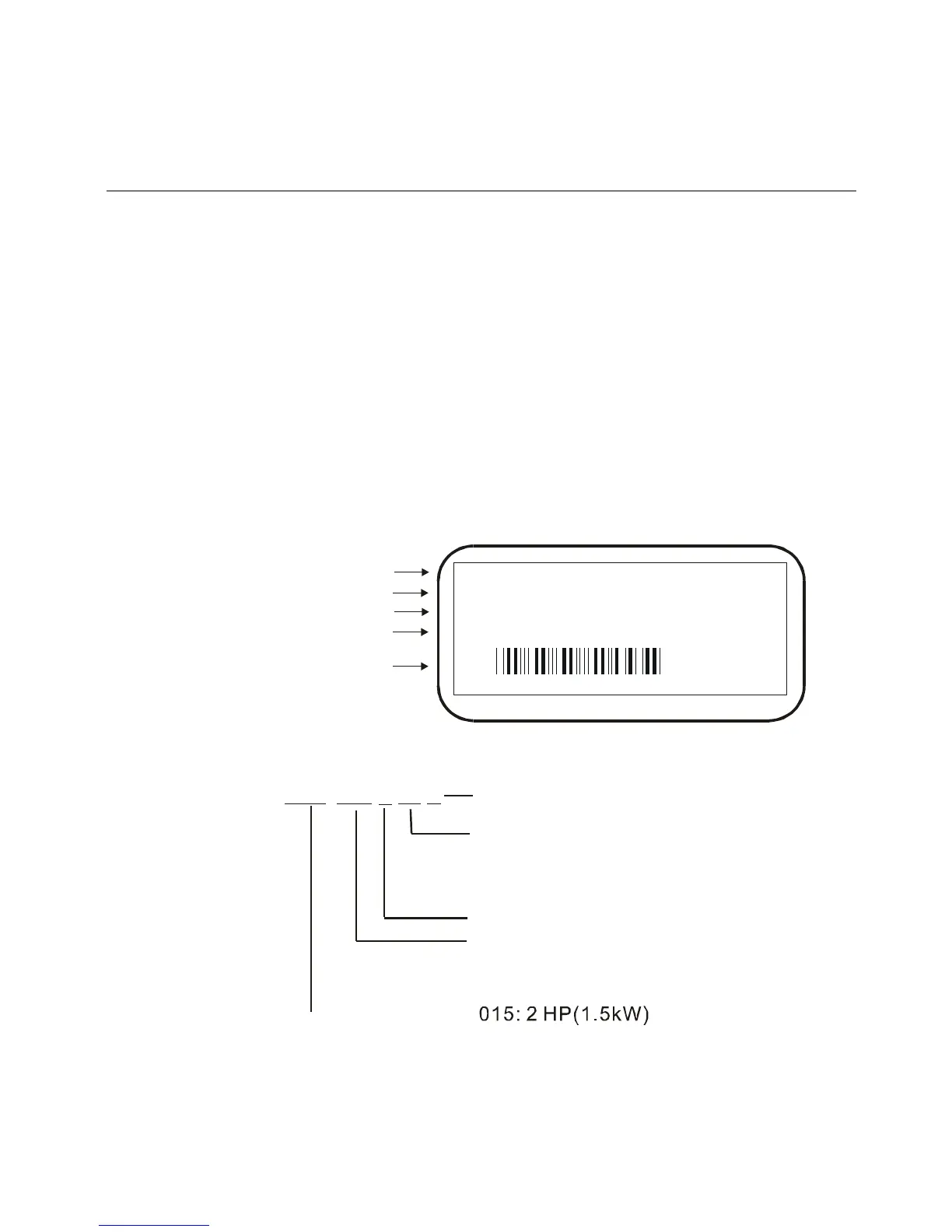

1.1.1 Nameplate Information
Example for 1HP/0.75kW 3-phase 230V AC motor drive
MODEL : VFD007S23A
INPUT : 3PH 200-240V 50/60Hz 5.1A
OUTPUT : 3PH 0-240V 4.2A 1.6kVA 0.75kW/1HP
Frequency Range : 1-400Hz
DELTA ELECTRONICS INC.
MADE IN XXXXX
AC Drive Model
Input Spec.
Output Spec.
Output Frequency Range
Serial Number & Bar Code
007S23A0T7010001
1.1.2 Model Explanation
VFD
A
Version Type
23
Input Voltage
11:Single phase 115V
23:Three phase 230V
43:Three phase 460V
S
S Series
007
Series Name
21:Single phase 230V
Applicable motor capacity
007: 1 HP(0.7kW)
022: 3 HP(2.2kW)
002: 0.25HP(0.2kW)
004: 0.5HP(0.4kW)
