Delta Electronics Network Device VFD-S User Manual

Appendix B Accessories|VFD-S Series
Revision August 2008, SE09, SW V2.61 B-17

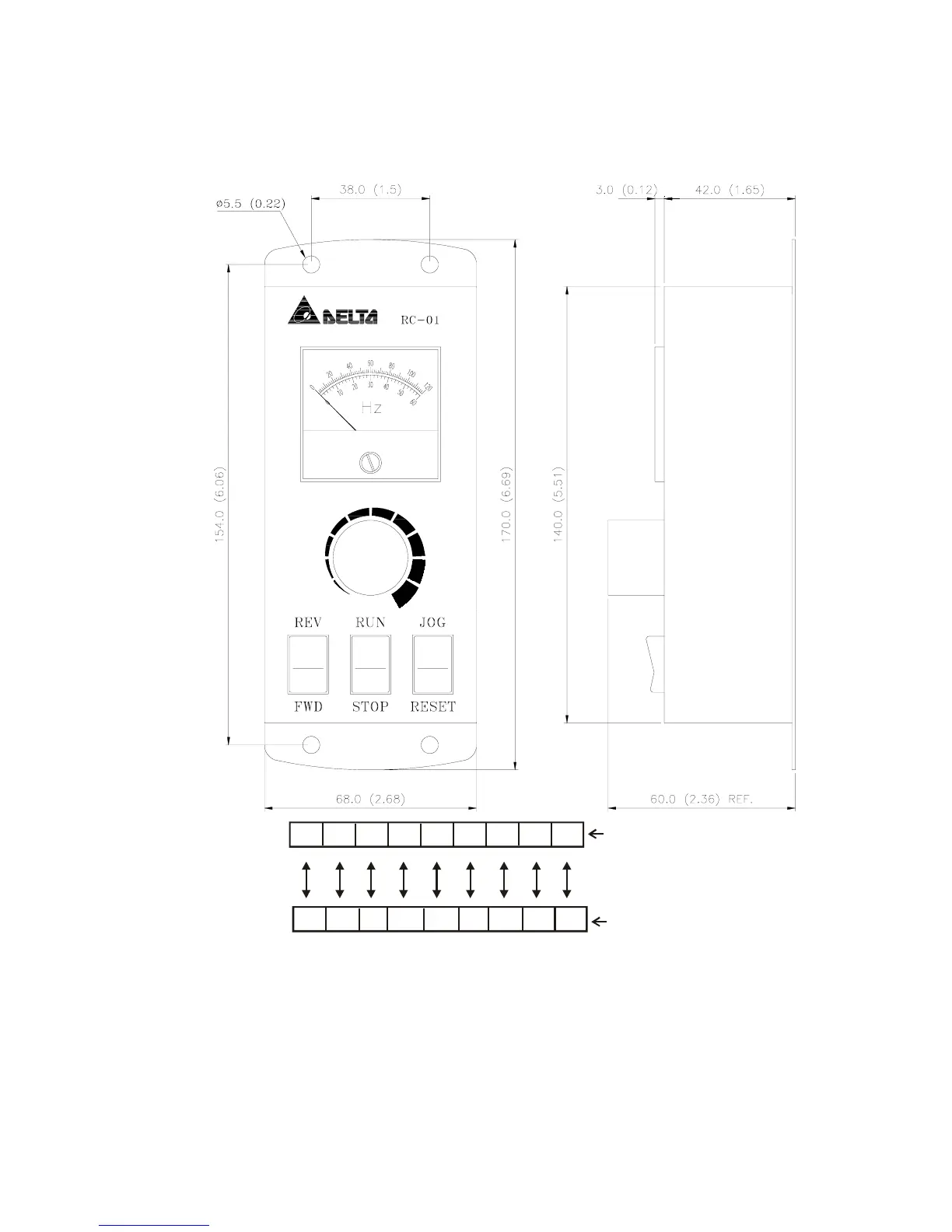

B.7 Remote Controller RC-01
(Dimensions are in millimeter)
AFM GND +10VAVI GND
M2
M0 M1 M3
86
5
4 16151413 11
RC-01
Term ina l
block
(Wiring
connections)
VFD-S
I/O
Bloc
k
VFD-S Programming
Pr. 2-00 set to d01
Pr. 2-01 set to d01
Pr. 4-04 set to d02 (M0, M1 set at RUN/STOP and FWD/REV)
Pr. 4-05 set to d06 (M2 set for reset)
Pr. 4-06 set to d10 (M3 set for jog operation)
