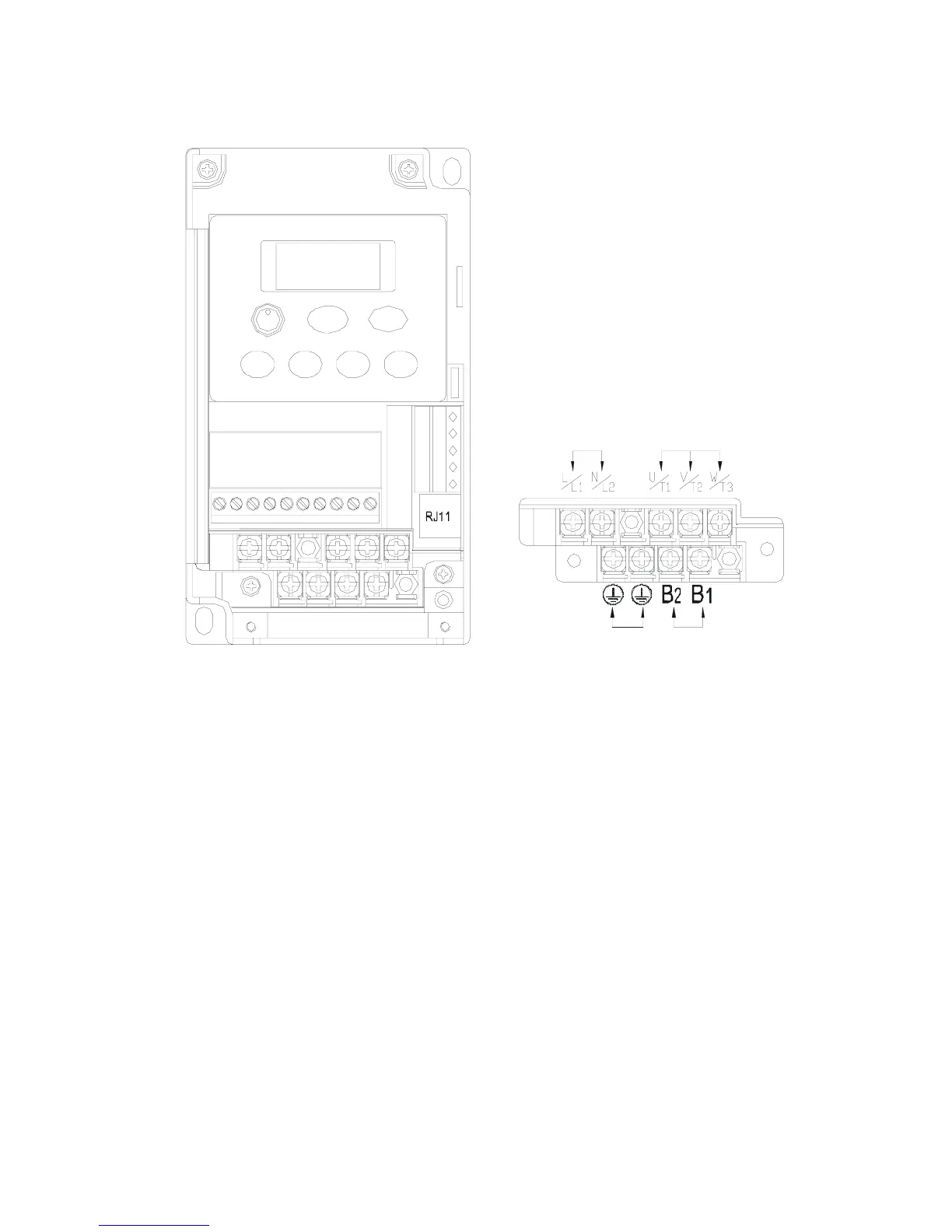

2.4.5 Main Circuit Terminals
VFD002S11A/11B, VFD004S11A/11B
Motor
Connection
Groun d Brake Resistor
Power terminal
AC Input Line
Terminal
Power Terminal:
Torque: 12 kgf-cm (10 lbf-in)
Wire Gauge: 14-20 AWG (2.1-0.5mm
2
)
Wire Type: Copper only, 75
o
C
