Chapter 2 Installation and Wiring|VFD-S Series
Revision August 2008, SE09, SW V2.61 2-29
VFD002S21B/23A, VFD004S21B/23A/43A/43B/43E, VFD007S21B/23A/43A/43B/43E,
VFD015S23D

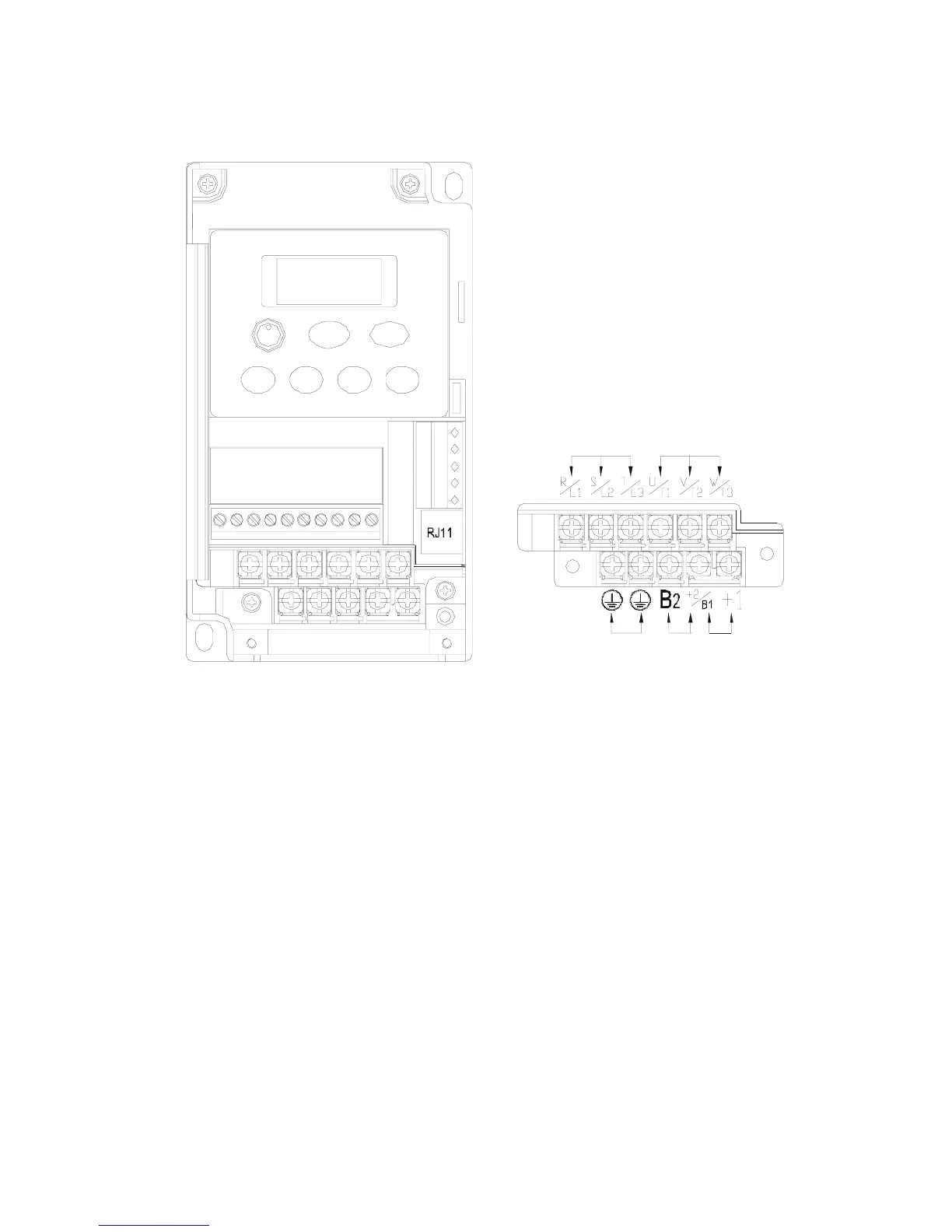

Power terminal
AC Input Line
Terminal
Ground DC ReactorBrake
Resistor
Motor
Connection
Power Terminal:
Torque: 12 kgf-cm (10 lbf-in)
Wire Gauge: 14-20 AWG (2.1-0.5mm
2
)
Wire Type: Copper only, 75
o
C
