Chapter 3 Start Up| VFD-S Series
3-2 Revision August 2008, SE09, SW V2.61

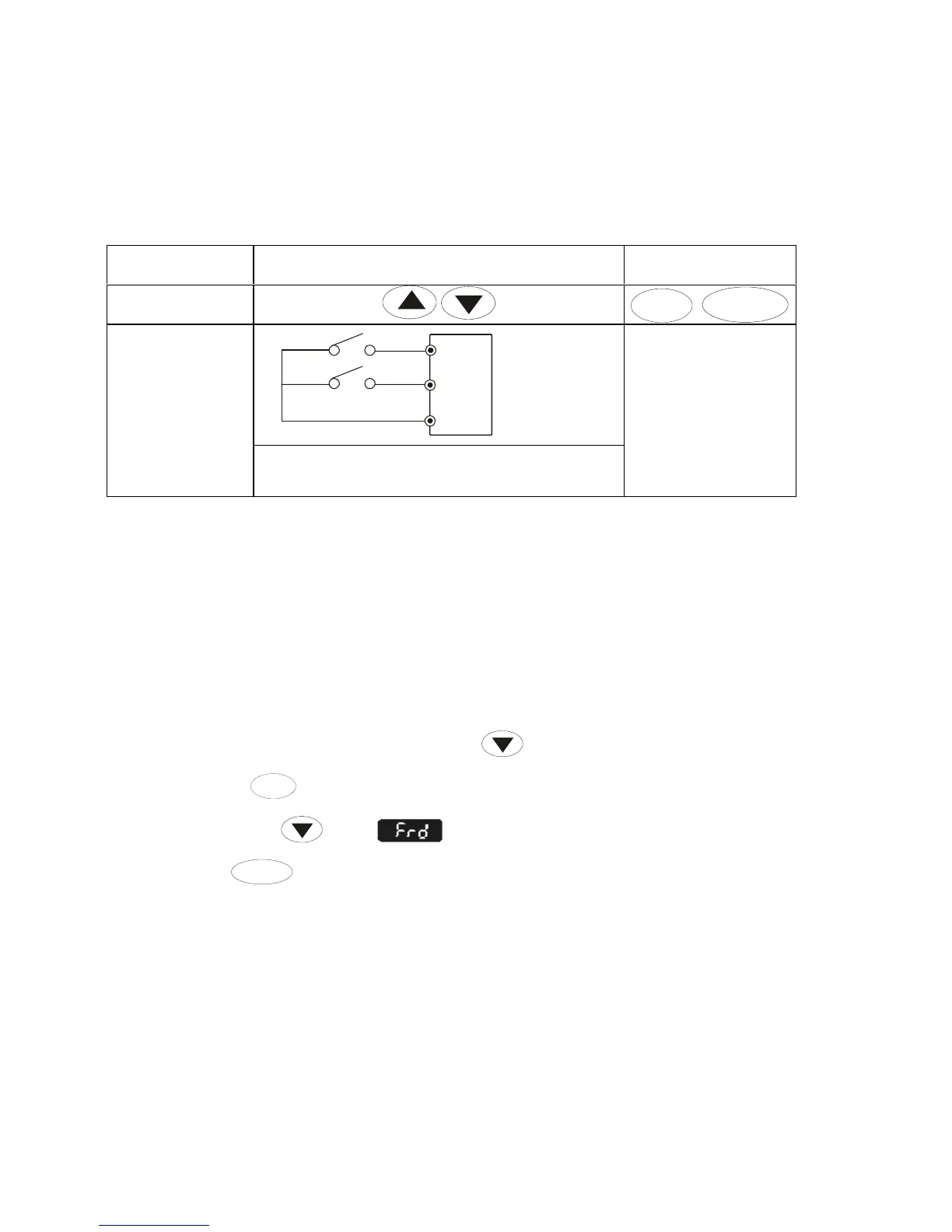

3.2 Operation Method
Refer to 4.2 How to operate the digital keypad and chapter 5 parameters for setting. Please choose
a suitable method depending on application and operation rule. The operation is usually done as
shown in the following table.
3.3 Trial Run
After finishing checking the items in “3.1 preparation before start-up”, you can perform a trial run.
1. After applying power, verify that the display shows “F60.0”.
2. Setting Pr.2-00 to d0, and setting Pr.2-01 to d0 as well. (Refer to Chapter 4 for the operation
of the digital keypad.)
3. Setting frequency to about 5Hz by using
key.
4. Pressing
RUN
key for forward running. And if you want to change to reverse running, you
should press
key in page. And if you want to decelerate to stop, please
press
STOP/RESET
key.
5. Check following items:
Check if the motor direction of rotation is correct.
Check if the motor runs steadily without abnormal noise and vibration.
Check if acceleration and deceleration are smooth.
If the results of trial run are normal, please start the formal run.
Operation Method Frequency Source
Operation Command
Source
Keypad
RUN
STOP/RESET
M2
M3
GND
Parameter
setting:
4-05=15
4-06=16
Operate from
external signal
AVI, ACI
External terminals
input:
M0-GND
M1-GND
To Next Page
