Modbus TCP Remote I/O Communication Module RTU-EN01
DVP-PLC Operation Manual
38

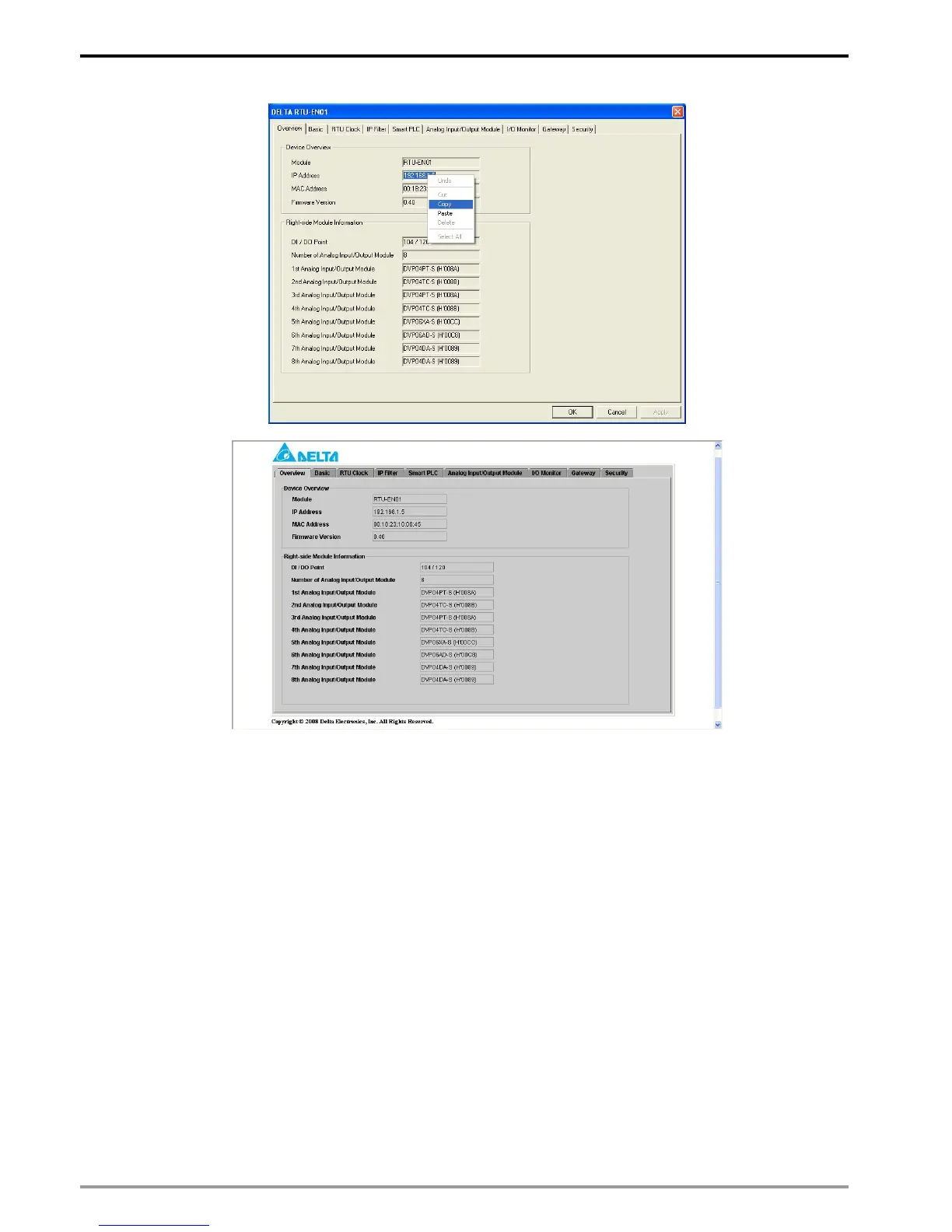

3. To use the page of analog input/output modules on the web, download “DeltaR-Side-S_ENU.eds” file from
Delta’s website first and import the file to the page. Other settings are the same as the settings in DCISoft.
The webpage supports Java Runtime Environment (JRE) v1.4.2_xx and versions above.
4. Webpage troubleshooting
Unable to connect:
(1) Check if Java is correctly installed. Connect to the Java page to confirm.
(2) Check Proxy settings. Close Proxy or set up exceptions.
Close Proxy:
1. In IE, select “Tool” => “Internet Options…”.
To Next Page
