Chapter 7 Motion Control Programming
7-41
1
2
3

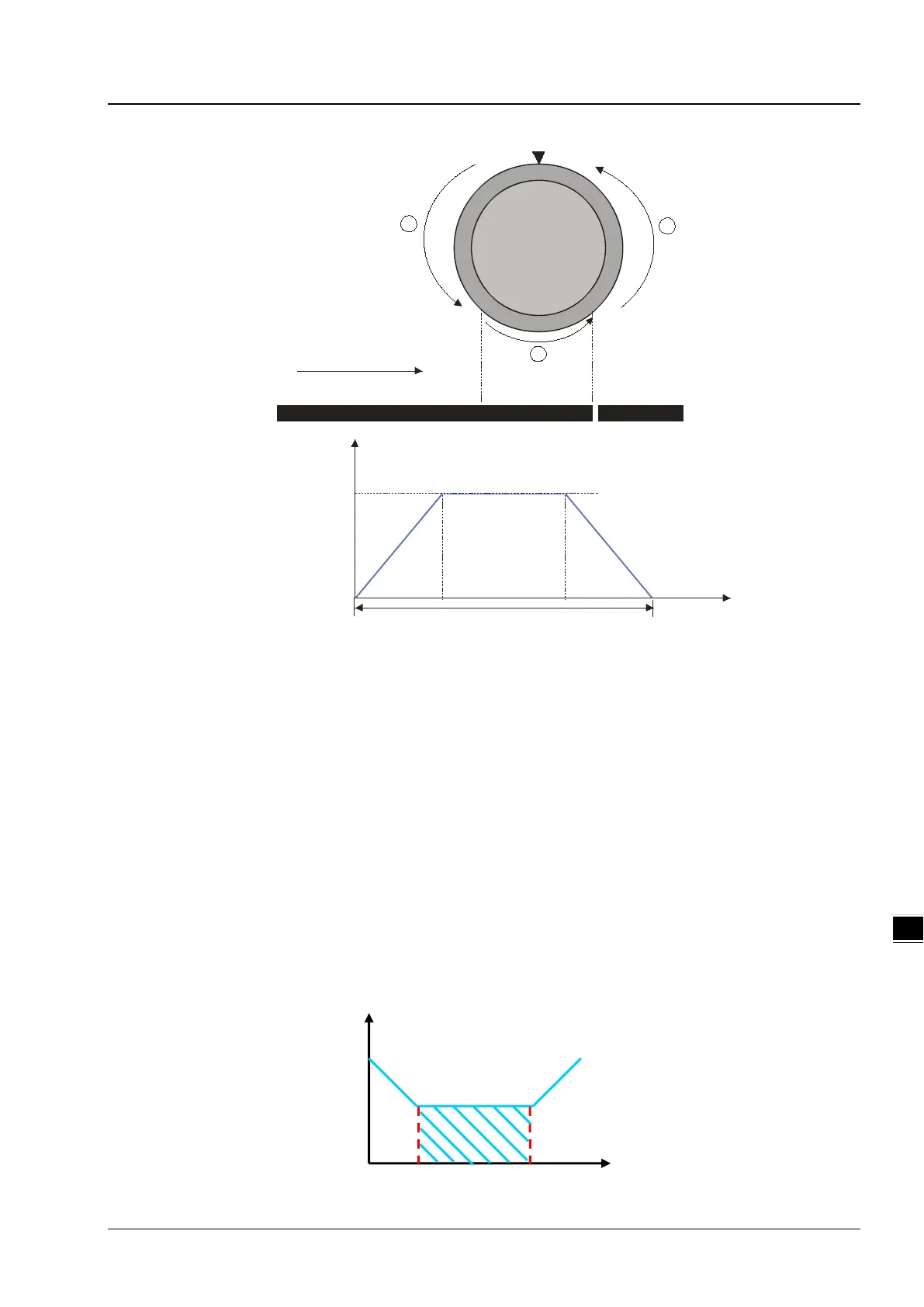

Synchronization
zone
(Cutting zone)
Feeding axis
(master axis)
Cutting axis
(Slave axis)
V
T
Equal to the speed
of the master axis
Acceleration
Synchronization
Deceleration
Distance for which the master axis moves
(Length of a cutting)
Home
2. During the processing of cutting materials, synchronization is an important factor. When the bladed of a rotary cutter
come into contact with a material, the speed of the blade must be the same as the speed of the material. If the speed
of the blade of a rotary cutter is greater than the speed of a material when it comes into contact with the material, the
force which pulls the material forward will appear, and the material will be cut smoothly. If the speed of the blade of a
rotary cutter is less than the speed of a material when it comes into contact with the material, the material will be
jammed.
3. The design of a synchronization zone affects the operation of equipment. The bigger the synchronization zone is in a
cycle, the less time it takes for the slave axis specified to accelerate/decelerate. If equipment needs to
accelerate/decelerate in a short time, there will be a great impact on the electric machinery used and the blade used,
and there will be an overcurrent passing through the servo used.
4. Relation between the length of a cutting and the circumference of a blade
Length of a cutting<Length of the blade used: The speed of cutting roller used is the same as the speed of the
feeding roller used in the synchronization zone designed. After the cutting roller used leaves the synchronization
zone, the cutting roller will accelerate.
master axis
speed of the
slave axis to
the speed of
