4.5.9
Writing a Program

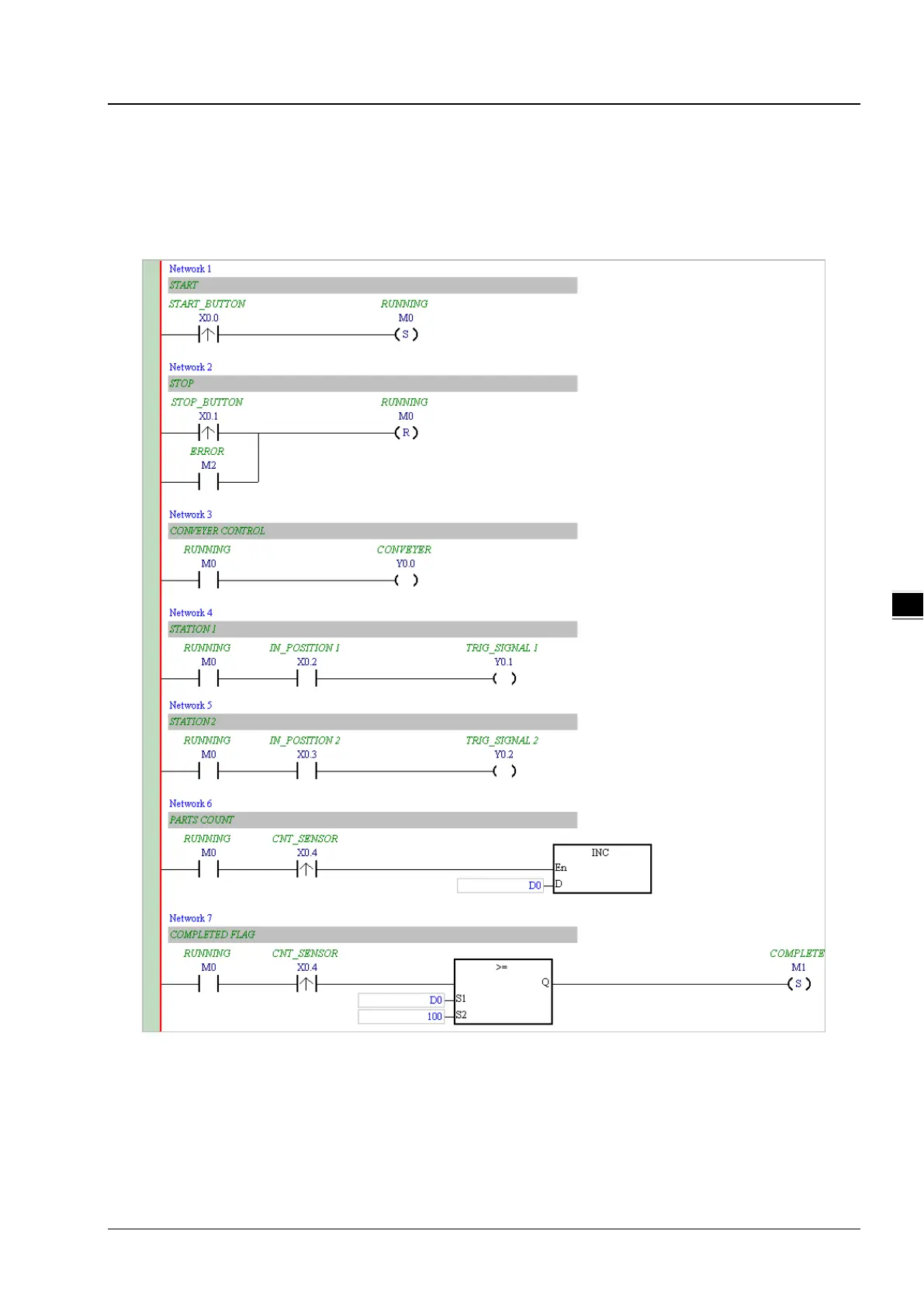

The creation of a traditional ladder diagram in ISPSoft has been introduced. You can write the program shown below in
the way described in the previous sections. Owning to the fact that the program has not been compiled, the mother line at
the left side of the ladder diagram is red during the writing of the program. The following sections will introduce how to
compile the program, and how to download the program which has been compiled to the CPU module to test the program.
*1. The program above is saved in the folder denoted by …\ISPSoft x.xx\Project\Example\Gluing_System_C.
*2. Please refer to chapter 8 of ISPSoft User Manual for more information about creating a ladder diagram.
