AH Motion Controller Operation Manual
2-8
_2
Points for attention:
1. The surge absorber and the PLC system should be grounded separately.
2. Please select the surge absorber whose working voltage is not less than the maximum allowable input voltage.

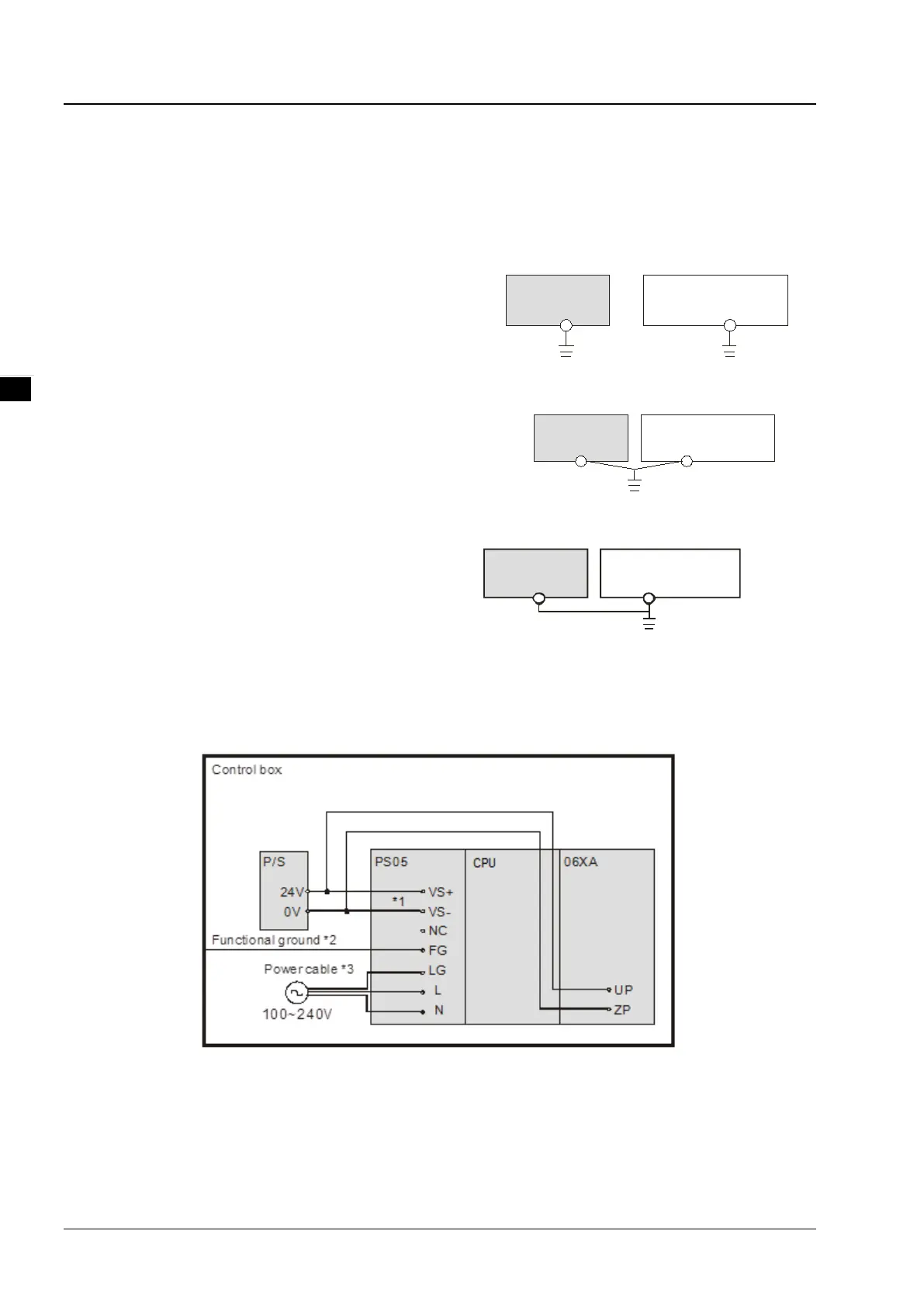

Ground
The diameter of the ground should not be less than the
diameters of the cables connected to the terminals L and N.
If much equipment is used, please use single-point ground.
AHPS05-5A
AHPS15-5A
Another piece of
equipment
The single-point ground is better.
If single-point ground cannot be used, please use
common-point ground.
The common-point ground is permitted.
AHPS05-5A
AHPS15-5A
Another piece of
equipment
You can
not ground equipment in the way shown on
the right.
The equipment can not be grounded in this way.
AHPS05-5A
AHPS15-5A
Another piece of
equipment
Wiring Power Supply Modules
Connecting an AC power cable
*1. 24V on the external power supply is connected to VS+ and VS- on the power supply module. VS+ and VS- can be
used to detect whether the voltage of the external power supply is stable.
*2. FG on the power supply module is connected to the control box as the functional ground.
*3. The live wire and the neutral wire in the AC power cable are connected to L and N on the power supply module
