Delta AH Series User Manual

Chapter 2 Hardware Setup
2-13
2_
Terminal Description
Response
characteristic
Rated input
Current
Voltage
X0.12,
X0.13,
X0.14,
X0.15,
X1.0,
X1.1,
X1.2,
X1.3
1. Common input terminals.
2. The functions of the terminals:
 High-speed count:
 The terminals are for counter 2~counter 5.
 X0.12 and X0.13 are for counter 2.
X0.14 and X0.15 are for counter 3.
X1.0 and X1.1 are for counter 4.
X1.2 and X1.3 are for counter 5.
 High-speed capture: The terminals can function
as trigger signals for high-speed captures.
 Interrupt inputs:
X0.12, X0.13, X0.14 and X0.15 can function as
interrupt inputs.
100kHz(*1) 5mA 24 V
Y0.8,
Y0.9,
Y0.10,
Y0.11
1. Pulse output terminals (open collector).
2. The function of the terminals:
 High-speed comparison: The terminals can
function as high-speed comparison outputs.
200 kHz 15 mA 24 V
*1. If the frequency of input signals received by an input terminal must be 200 kHz, the input terminal must be connected
to a 1 kΩ (2 W) resistor in parallel.

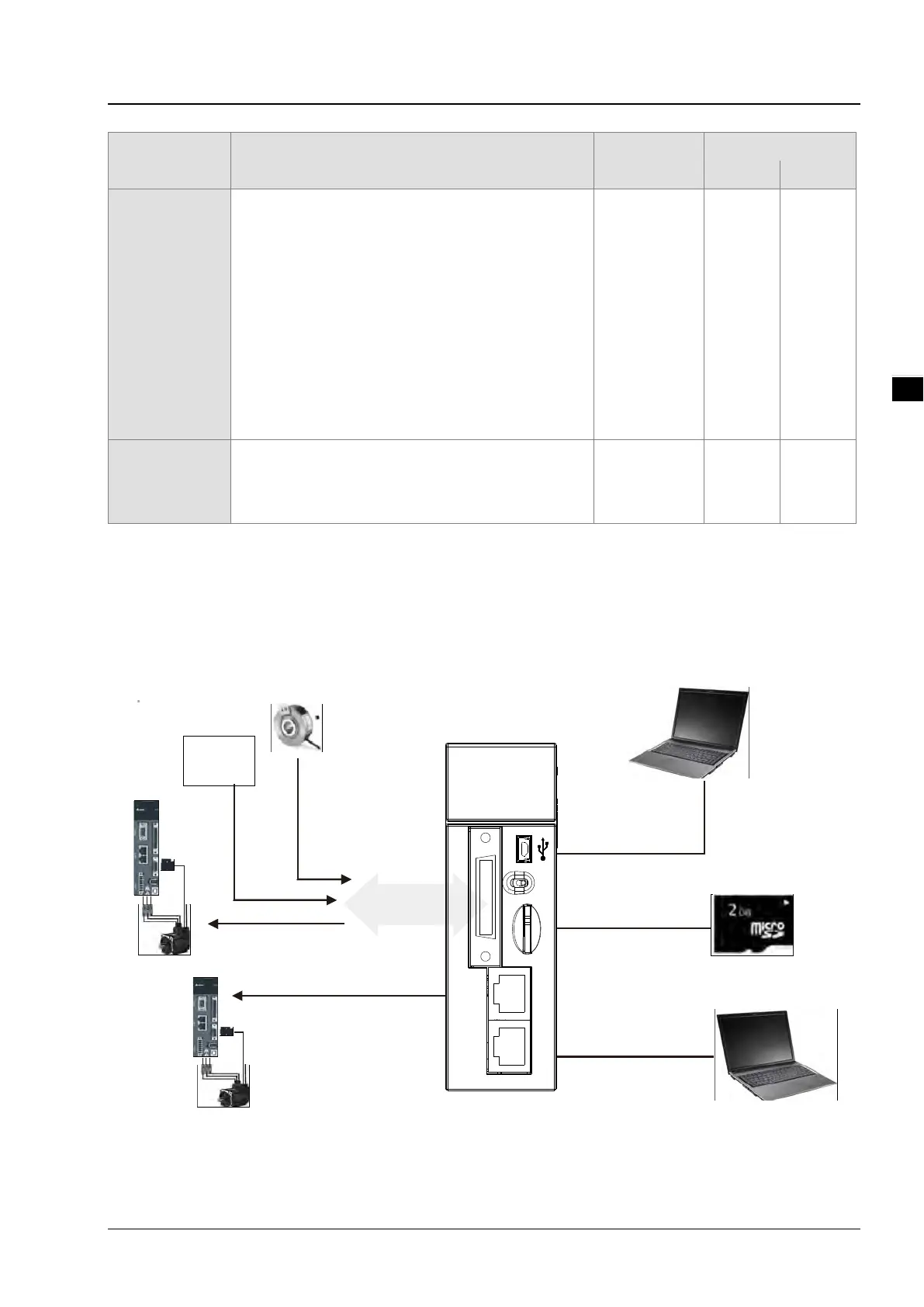

2.2.3.2 Wiring AHxxEMC-5A
 External devices for AHxxEMC-5A
E xt e rn a l
te rm in a l
m o d u le
RJ45 (EtherCAT)
USB
RJ45 (Ethernet)
MicroSD
SD
RUN
ETH
ERROR
RUN
E ther net E ther CAT
C N1
RU N
S TO P
Mic ro S D
Et he rCAT
AHxxEMC
ETH
ERROR
MD R 3 6
c o n n e c to r
