AH Motion Controller – Operation Manual
4-6

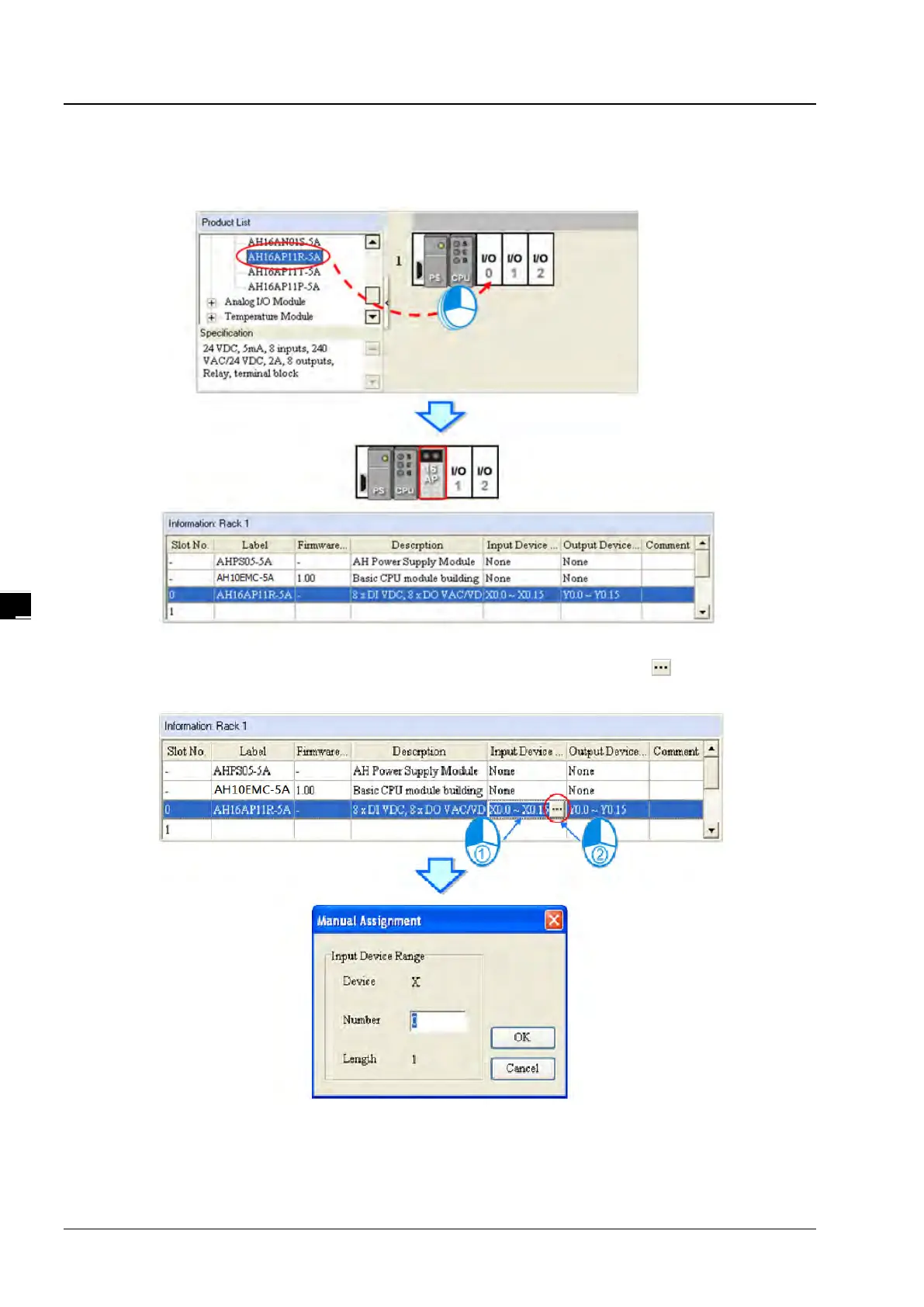

Unfold the Digital I/O Module section on the product list, find AH16AP11R-5A, and drag the module to a vacant slot on
the backplane in the system configuration area. After the module is added successfully, the related information and the
devices assigned to the module will be listed in the table at the bottom of the window.
The system automatically assigns devices to a module which is added. If the devices assigned to a module do no conform
to what is expected, you can click the Input/Output Device Range cell for the module, click
in the cell, and type a
device address in the Manual Assignment window.
