Chapter 7 Motion Control Programming
7-29

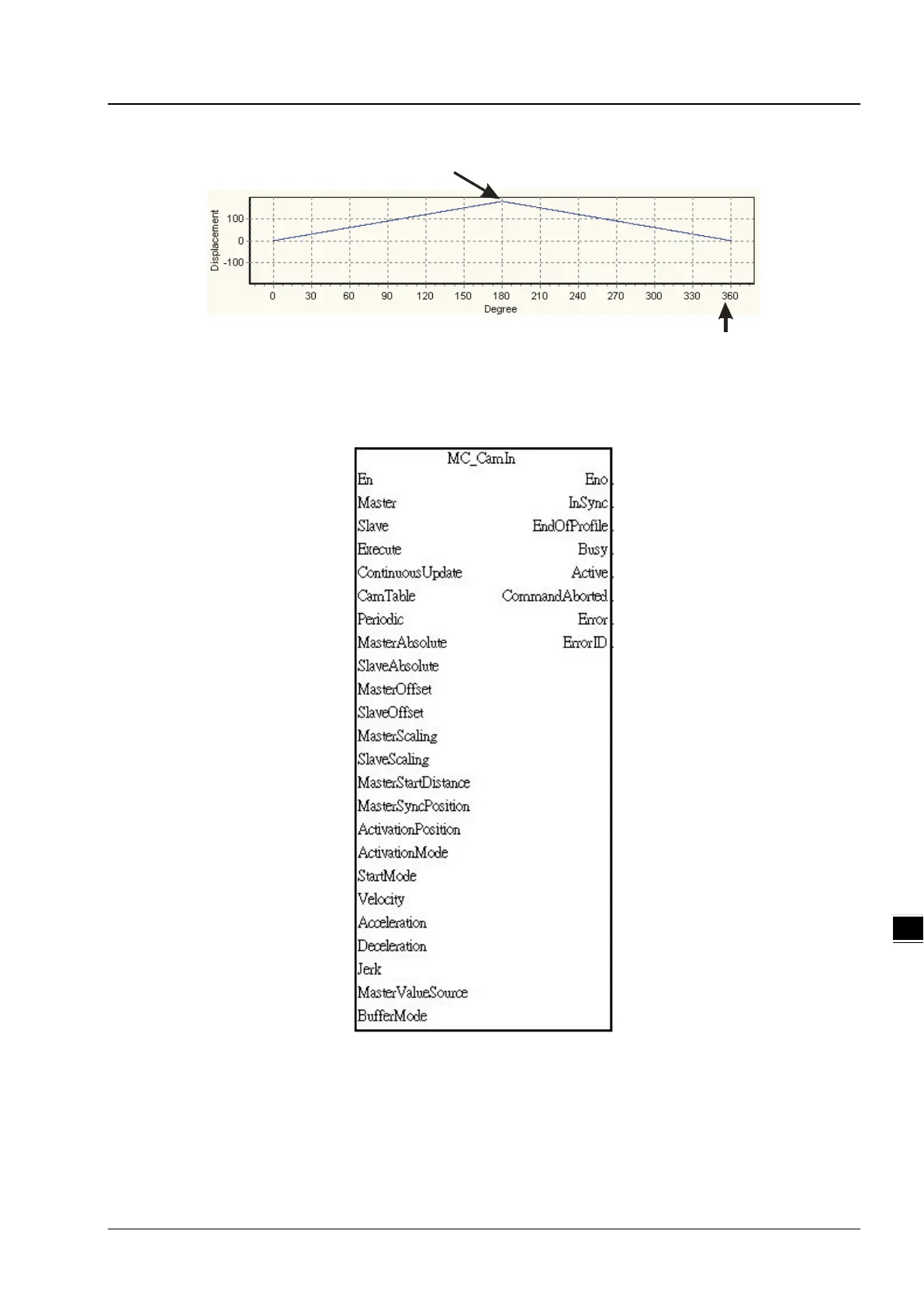

Electronic cam data
Master axis =360(Unit)
Max
Slave axis
Max
=180(Unit)
Starting a Cyclic Electronic Cam Operation
After you set a master axis, a slave axis, and a starting angle by means of inputs in the motion control function block
MC_CamIn, electronic cam motion will be started if the Enable is set to True and the Periodic is set to Ture.
