Delta AH08EMC-5A User Manual

AH Motion Controller – Operation Manual
2-4
_2
D IN r a il
1
2
3
 Removing a DIN rail

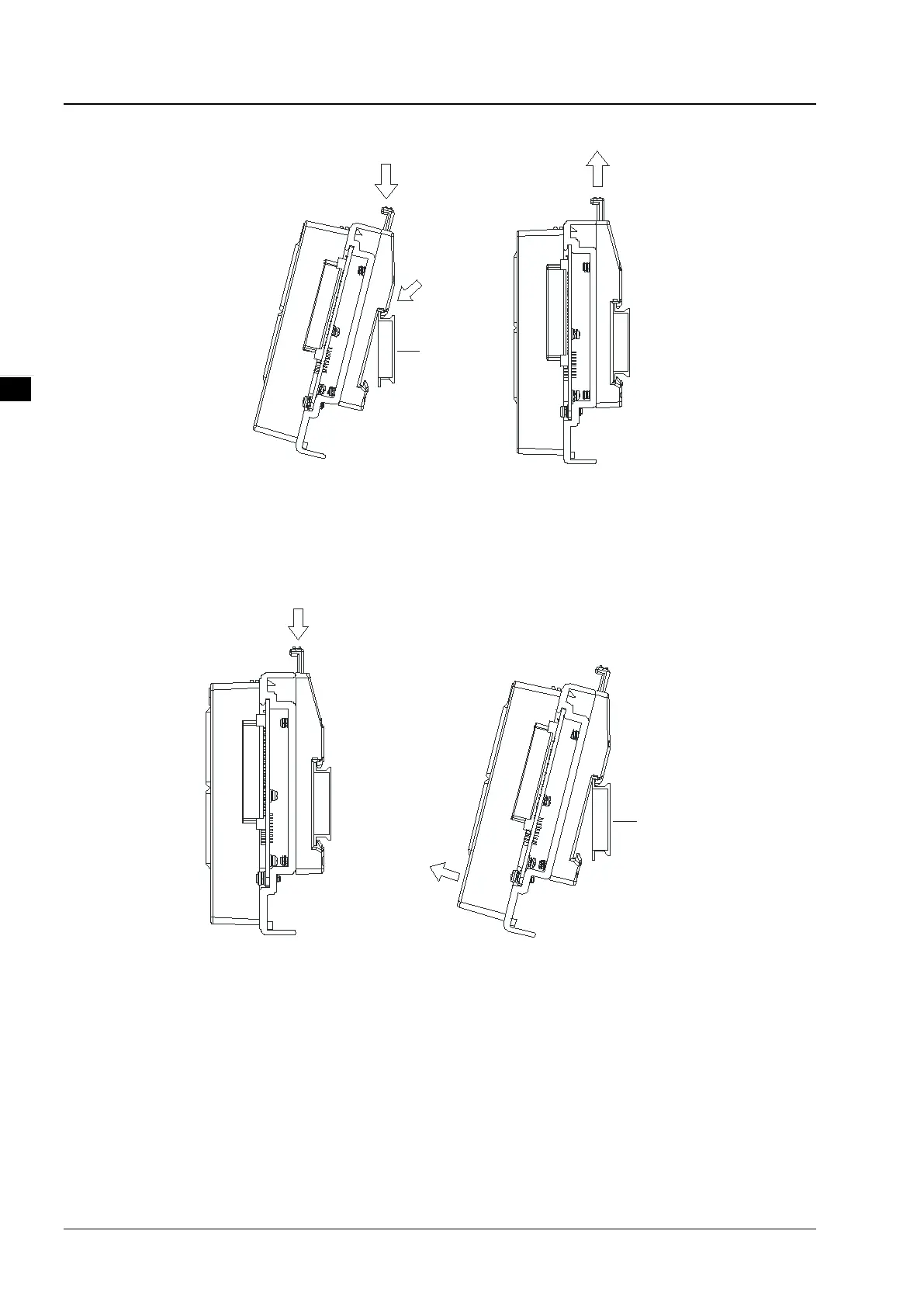

Step 1: Press the hook in the direction indicated by the arrow.
Step 2: Remove the backplane.
D IN ra il
1
2
2.1.3 Installing a CPU Module
Insert a module into a slot, make sure that the module is installed on the backplane properly, and tighen the the screw, as
illustrated below.
1. Insert the hook under the module into the hole in the backplane.
