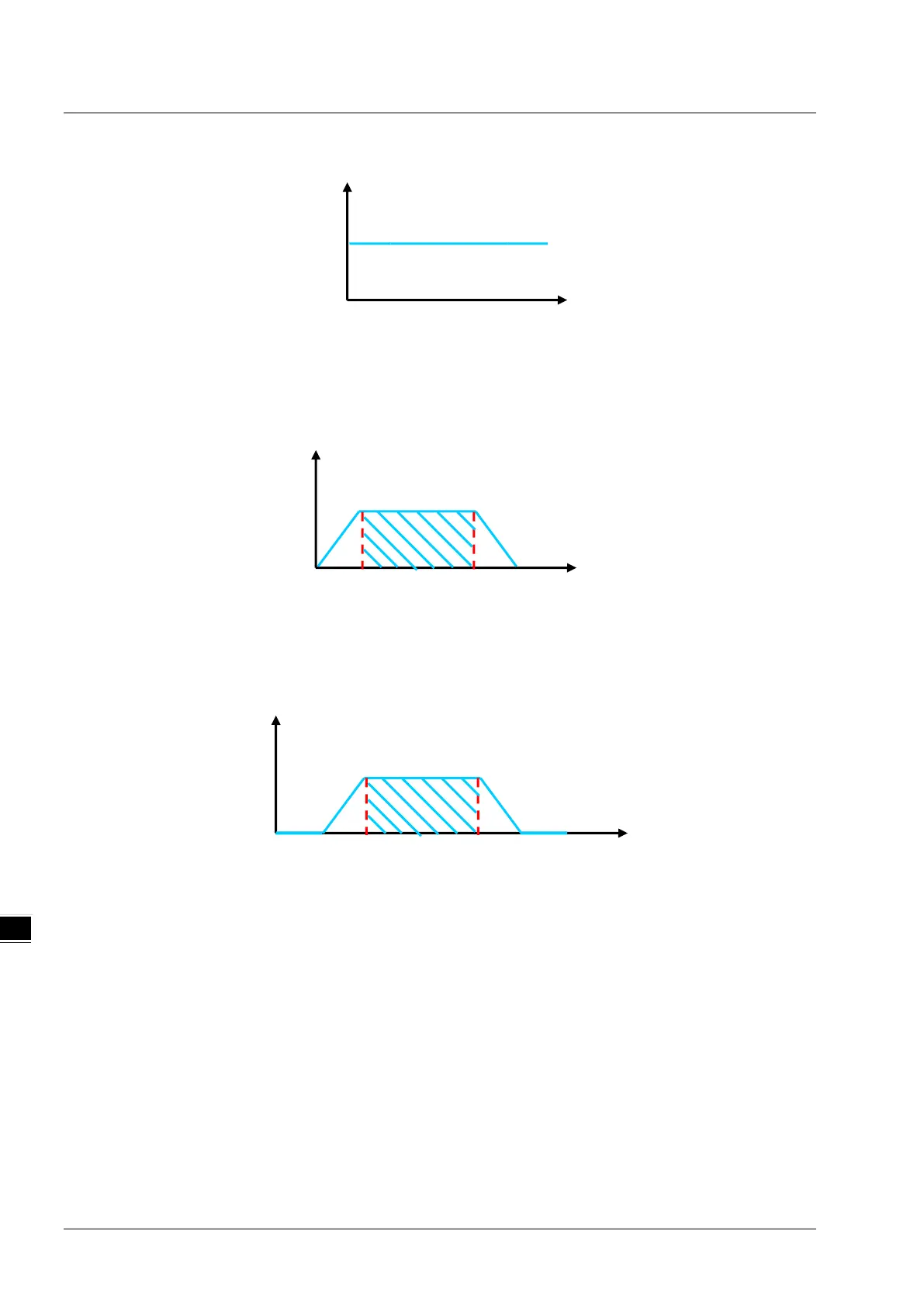

 Length of a cutting=Circumference of the blade used: The cutting roller used rotates at a uniform speed.
 One time the circumference of the blade used<Length of a cutting<Two times the circumference of the blade
used: After the cutting roller used completes cutting in the synchronization zone designed, it will decelerate, and
then accelerate until its speed is the same the speed of the feeding roller used.
 Length of a cutting>Two times the circumference of the blade used: The length of a cutting is greater than two
times the circumference of the blade. (It is a common situation.) After the blade used completes cutting in a cycle,
it will decelerate until it stops. After a material of a certain length is fed, the blade used will start cutting again.
Position of the
master axis
Ratio of the
speed of the
slave axis to
the speed of
the master axis
Synchronization
zone
Position of the
master axis
Synchronization
zone
Ratio of the
speed of the
slave axis to
the speed of
the master axis
Position of the
master axis
1
Ratio of the
speed of the
slave axis to
the speed of
the master axis
