AH Motion Controller – Operation Manual
4-8

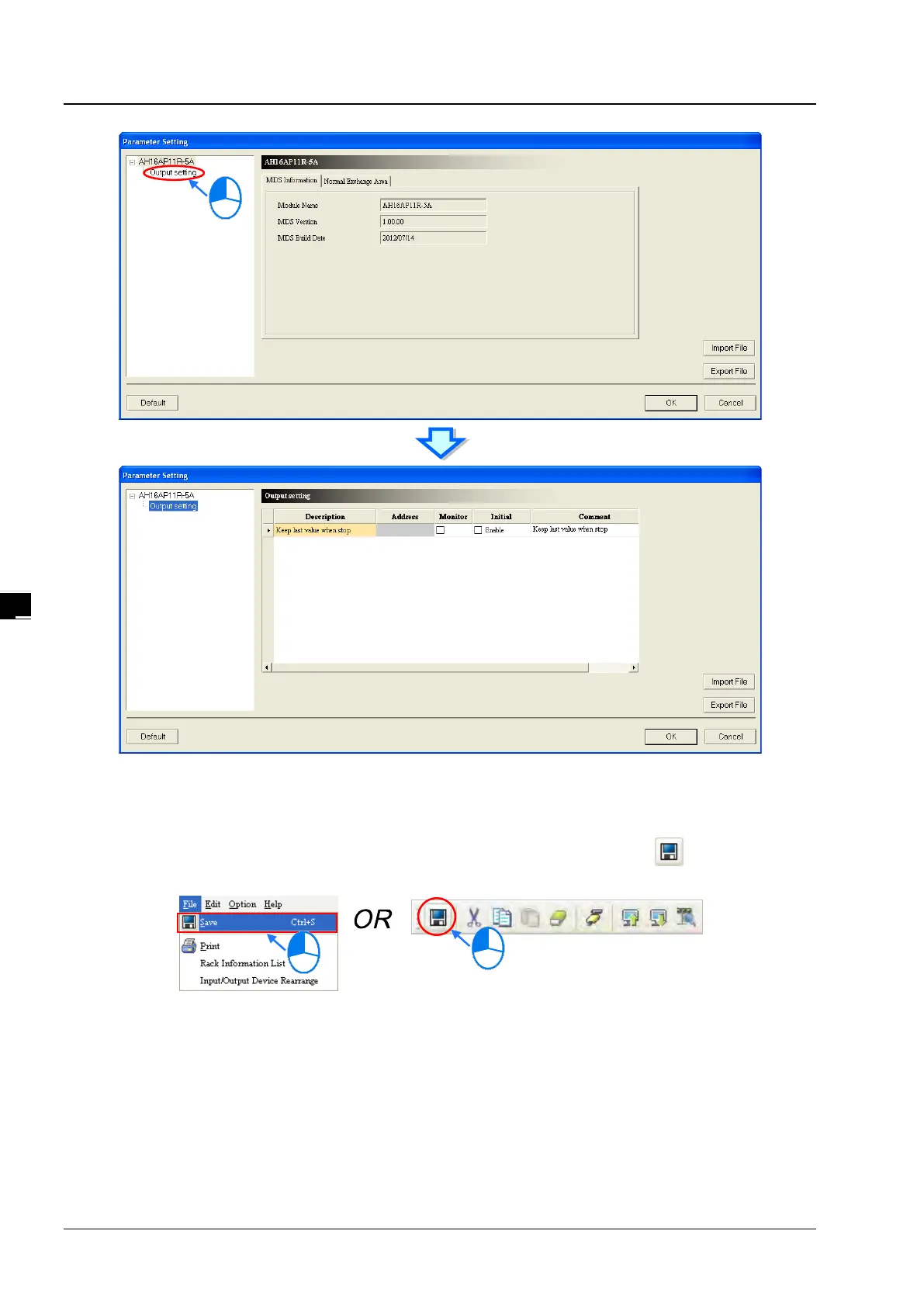

The hardware configuration is not complete until the parameters in the CPU module and AH16AP11R-5A are set.
However, the configuration and the setting must be downloaded to the CPU module so that you can take effect. The
configuration and the setting are saved here, and will be downloaded with the program in the project later.
If you want to save the configuration and the setting, you can click Save on the File menu, or on the toolbar. After
the configuration and the setting are saved, you can close the HWCONFIG window.
*Note: Please refer to section 4.4 for more information about HWCONFIG.
