Chapter 4 Operating ISPSoft
4-17

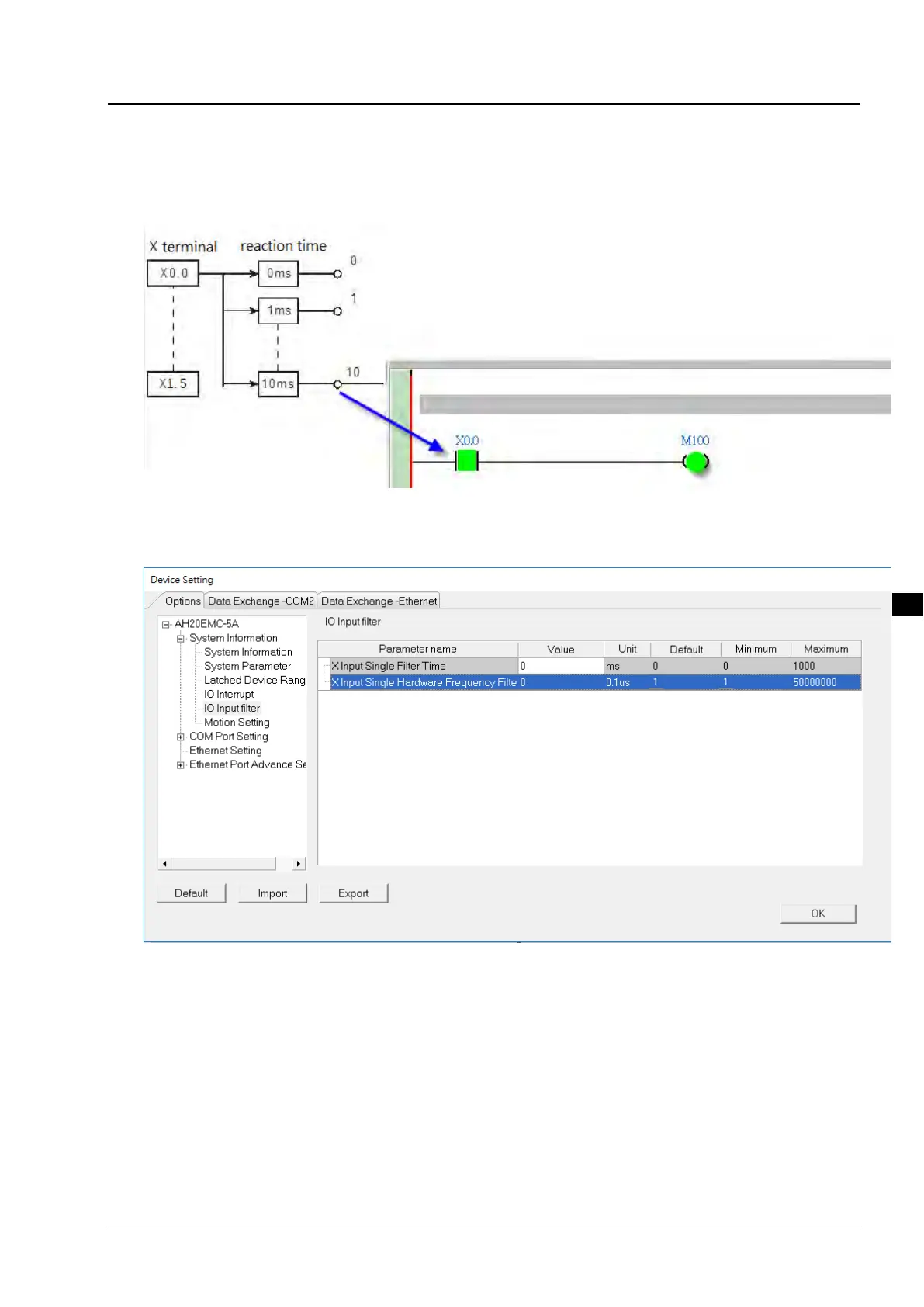

Setting up the responding time for the input filter; setting unit is ms, in the range of 0~1000. The
responding time less than 1000 ms will be filtered out.
Example: the responding time for X input is set to 10 ms: M100 will stay ON, when the X0.0 signal lasts
for more than 10ms.
(2) X Input Single Hardware Frequecny Filter
The hardware frequency filter time should be set less than the Duty On time of the X input. The setting unit is
0.1μs, in the range of 1~50000000.
