Chapter 4 Operating ISPSoft

4-25

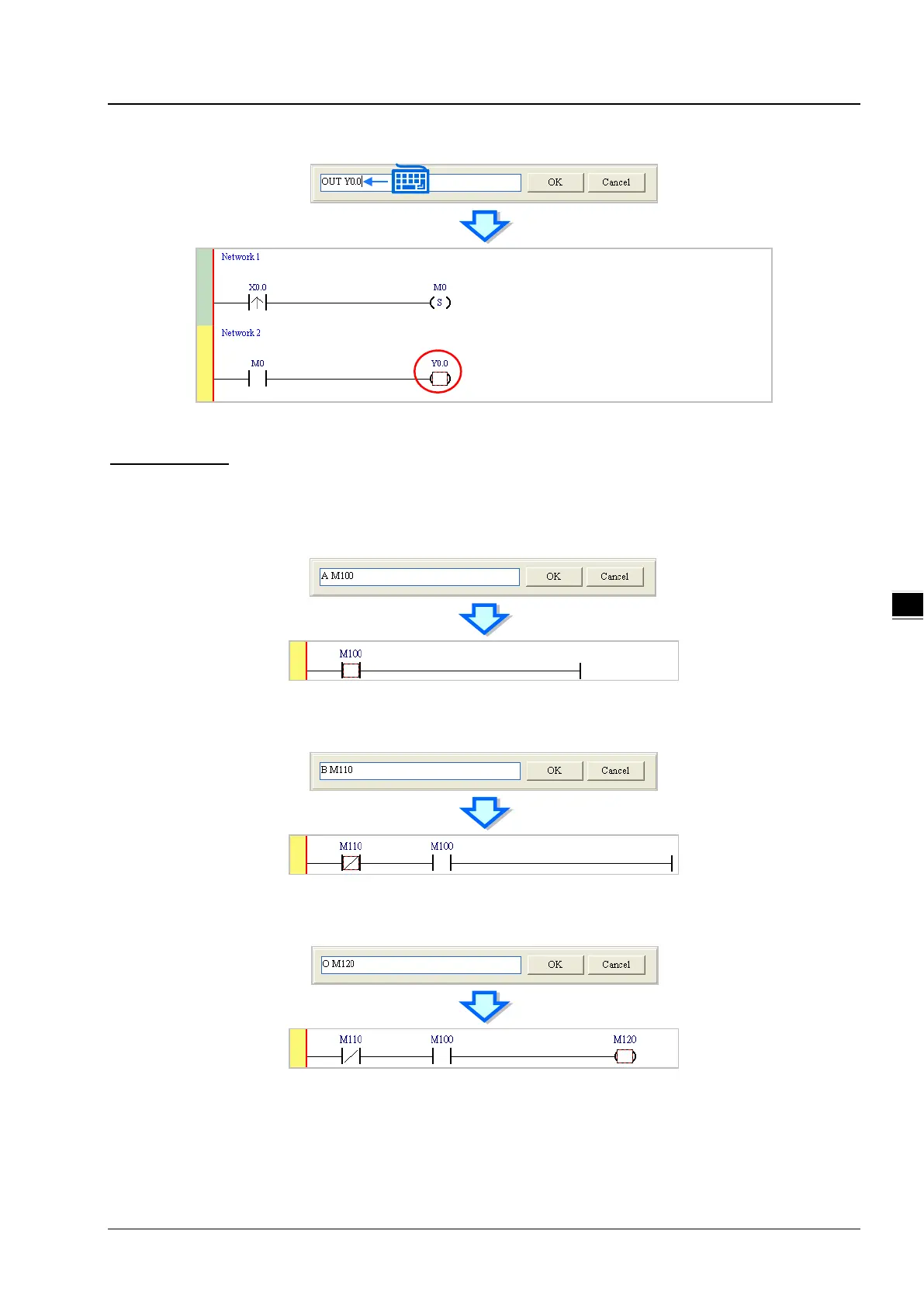

(3) Type the IL instruction “OUT Y0.0”, and write the program shown below.

Additional remark

A contact and a coil can be created by typing simple instructions. Please refer to the description below. (The instructions

typed are case-insensitive.)

 Inserting a normally-open contact (contact A): “A Device address”

 Inserting a normally-closed contact (contact B): “B Device address”

 Inserting an output coil (OUT): “O Device address”
