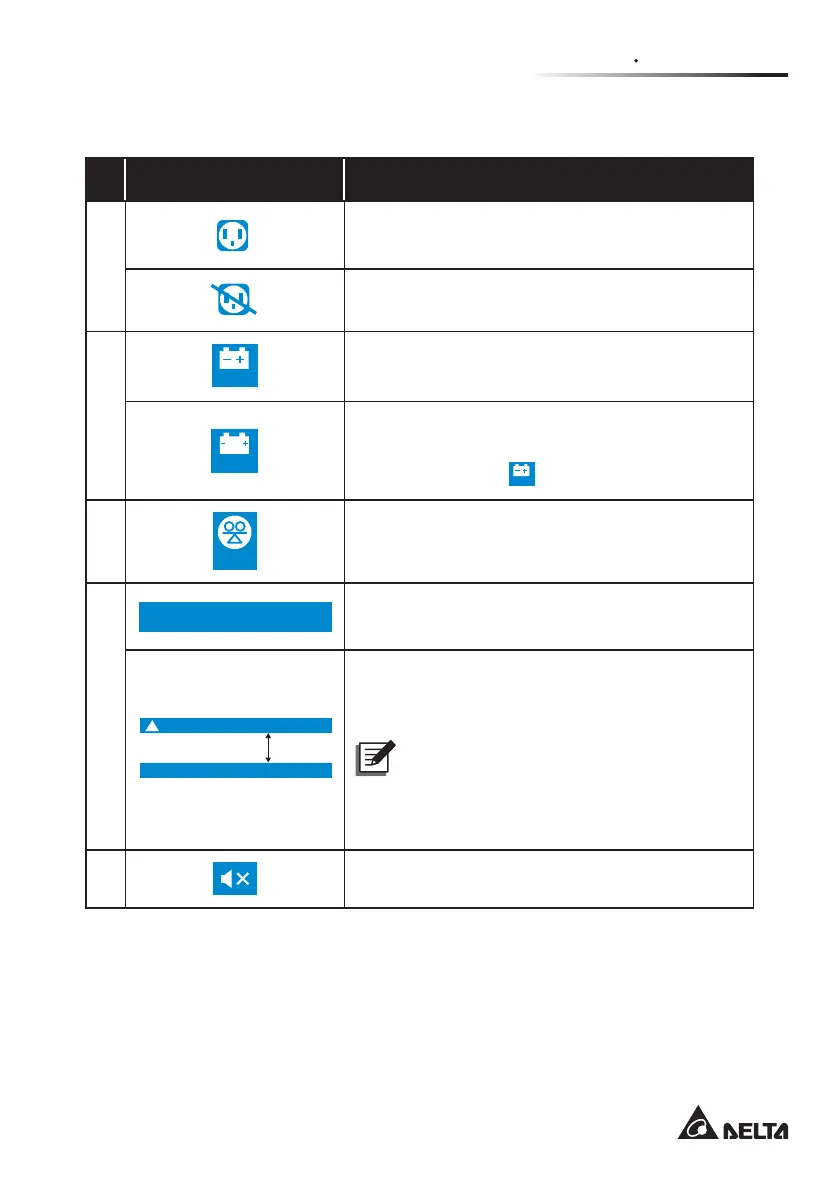

Chapter 3 Operation Panel
,FRQ'LVSOD\'H¿QLWLRQ
No. Icon/ Display Description
1
1
Indicates that the load bank status is ON.
1
Indicates that the load bank status is OFF.
2
100
%
Indicates the battery capacity level.
X
Indicates that the battery is abnormal and needs
replacement. If the battery is abnormal, the bat-
tery capacity icon
(
100
%
)
ZLOOEHRႇ
3
75%
Indicates the load level (%).
4
Input
232.0V 50.0Hz
Output
232.0V 50.0Hz
When the UPS runs normally, the display will
show the input/ output voltage and frequency.
Battery disconnected
0x1003
!
5 seconds
When the UPS has abnormalities or is in fault
condition, the display will show an error code
and its corresponding fault or warning message.
NOTE :
The error code and the fault/ warning
message will appear alternatively for
every 5 seconds.
5
Indicates that the buzzer is muted.
To Next Page
