Delta Amplon RT Series Manual

16
Amplon RT Series

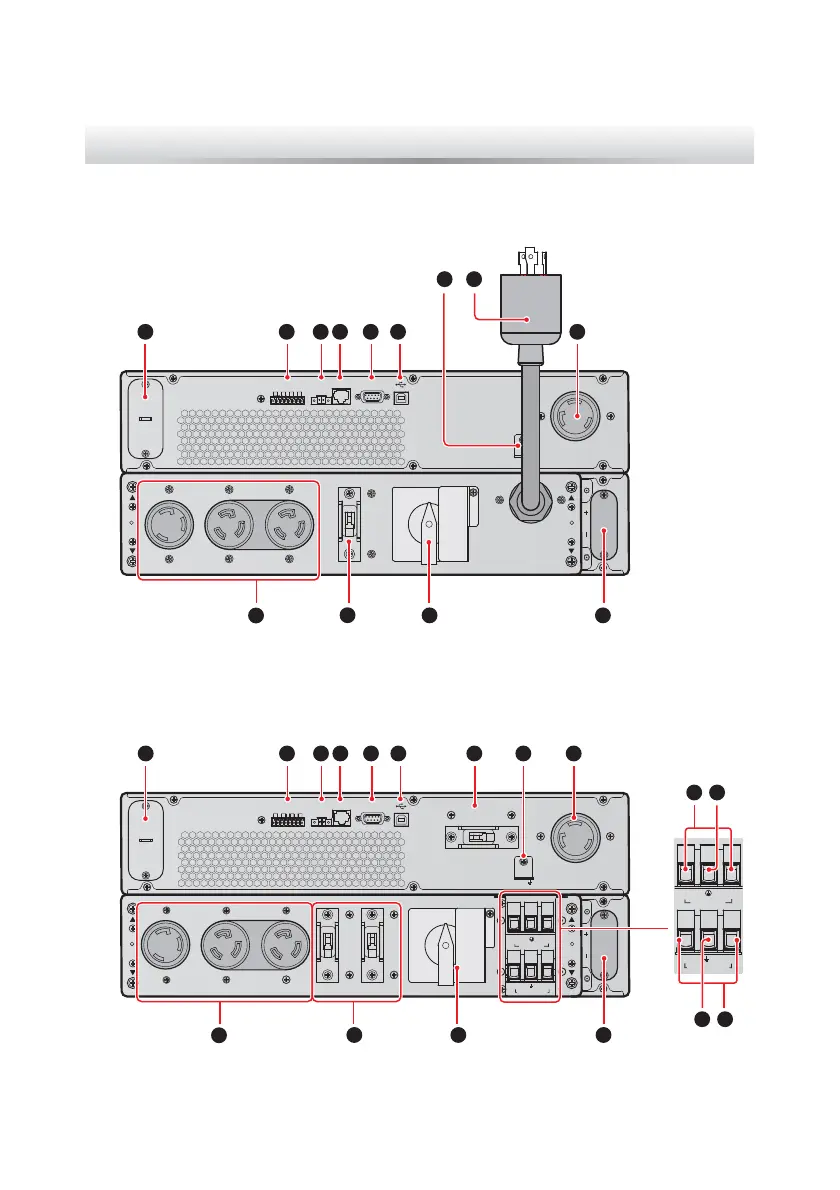

Chapter 4 : Rear Panel

z
Model: UPS502R2RT0B0B8
P2
P3
P4P1
MINI SLOT
DRY CONTACT
RS-485
RS-232
REPO
OUTPUT BREAKER-2
250V AC 20A
OUTPUT SOCKET-2
20A MAX.
OUTPUT SOCKET-3
24A MAX. PER OUTLET
AC INPUT
MANUAL BYPASS SWITCH
WARNING:
OPENING THIS COVER PLATE WILL CAUSE
INVERTER SHUTDOWN.
ONLY AUTHORIZED SERVICE PERSONNEL
CAN OPEN AND OPERATE IT.
NORMA
L
EXTERNAL BATT. CONNECTOR 192V DC 29A
OUTPUT SOCKET-1
29A MAX.
TMOV
1 2 3 4 5 6
7
9
8
17
L6-30P
11 12
10
)LJXUHN9$5HDU3DQHO

z
Model: UPS602R2RT0B0B8
MINI SLOT
DRY CONTACT
RS-485
RS-232
REPO
OUTPUT BREAKER-1
250V AC 30A
MANUAL BYPASS SWITCH
OUTPUT BREAKER-3
250V AC 30A
OUTPUT BREAKER-2
250V AC 20A
P2
P3
P4P1
WARNING:
OPENING THIS COVER PLATE WILL CAUSE
INVERTER SHUTDOWN.
ONLY AUTHORIZED SERVICE PER SONNEL
CAN OPEN AND OPERATE IT.
NORMA
L
EXTERNAL BATT. CONNECTOR 192V DC 35A
UPS OUTPUT
AC INPUT
/1 /2
/2
/
1
UPS OUTPUT
AC INPUT
/1 / 2
/ 2
/
1
OUTPUT SOCKET-3
29A MAX.
OUTPUT SOCKET-2
20A MAX.
TMOV
OUTPUT SOCKET-1
30A MAX.
1 2 3
4 5 6
7
7
98
14
16
10
11
12
13
15
)LJXUHN9$5HDU3DQHO
