AS Series Operation Manual
5-16

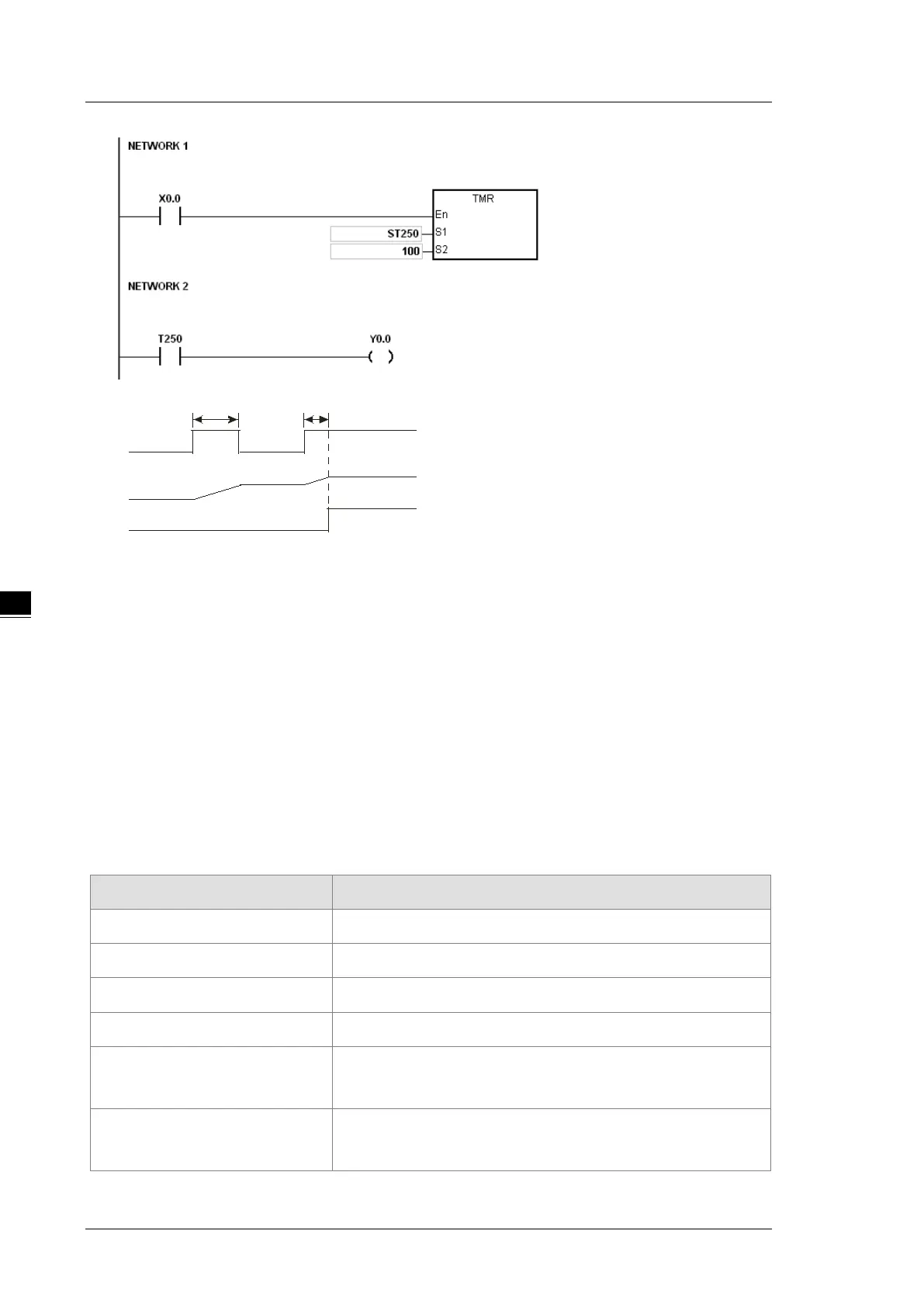

X0.0
T2
Y0.0
SV: K100
T1+T2=10sec
T250(PV)
T1
C. Timer used in the function block
Use the T412–T511 timers for the function block or the interrupt.
When the instruction TMR or END is executed, the timer used in the functional block begins to count.
When the value of the timer matches the timer setting value, the output coil is ON.
If you use the general-purpose timer is used in the function block or the interrupt, and the functional or
interrupt is not executed, the timer cannot count correctly.
5.2.10 16-bit Counters
Characteristics of the 16-bit counter
Item 16-bit counter
Type General type
Number C0–C511
Direction Counting up
Setting value 0–32,767
Specificying the counter setting value
The setting value can be either the constant or the value in the data
register.
Change of the current value
The counter stops counting when the value of the counter matches
the setting value.
