Delta AS300 Series User Manual

AS Series Operation Manual
2-31
_2

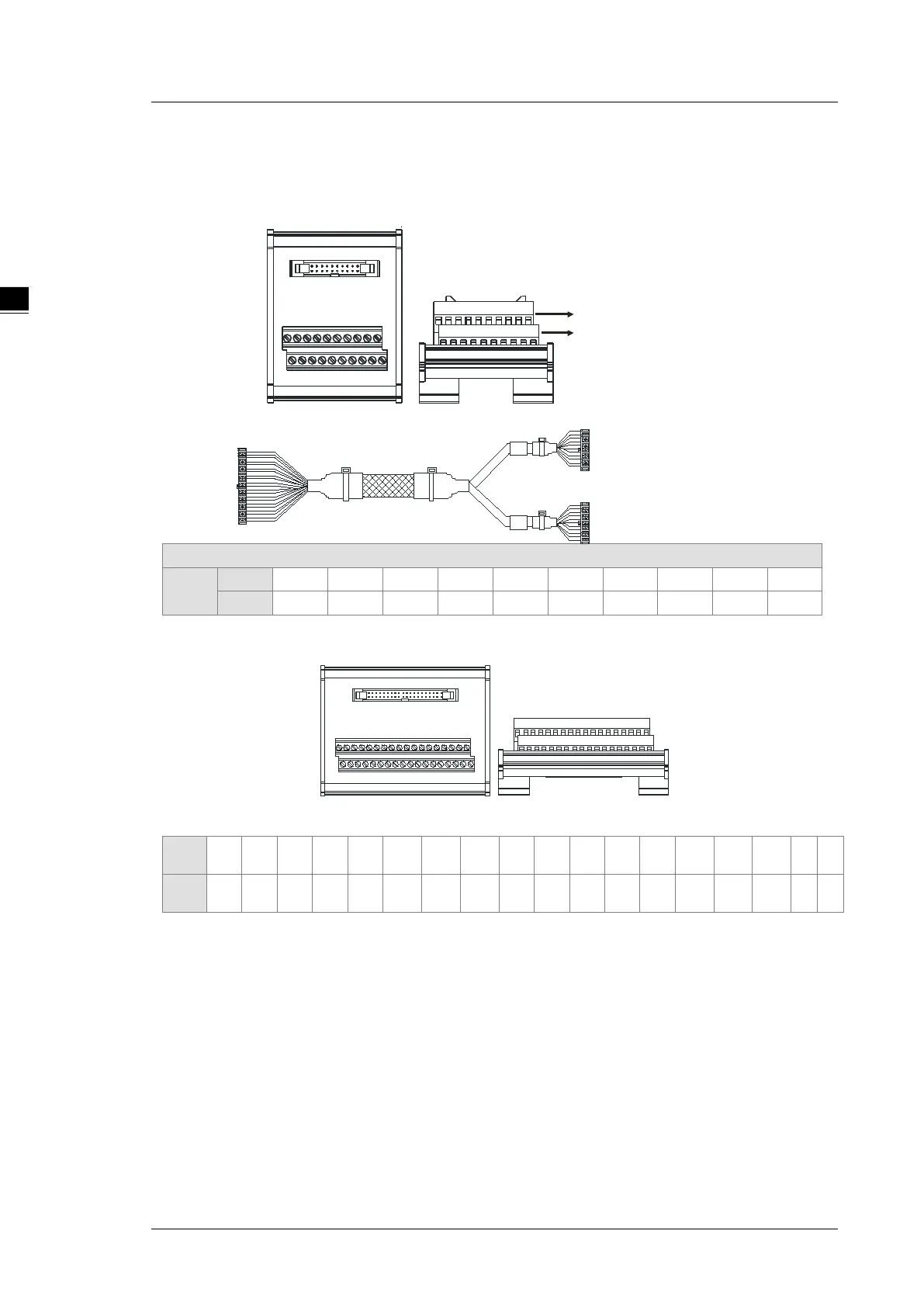

 ML connector and the wiring module
1. AS32AM10N-A/AS64AM10N-A
 The wiring module: UB-10-ID16A
TB1
TB2
AS32AM10N-A/ AS64AM10N-A
#2
TB1
X0.0
X0.2
X0.4
X0.6
X0.8
X0.10
X0.12
X0.14
S/S
-
TB2
X0.1
X0.3
X0.5
X0.7
X0.9
X0.11
X0.13
X0.15
S/S
-
 The wiring module: UB-10-ID32A
AS series terminals:
Upper
row
X0.0 X0.2 X0.4 X0.6 X0.8
X0.10
X0.12
X0.14
X1.0 X1.2 X1.4 X1.6 X1.8
X1.10
X1.12
X1.14
S/S
S/S
Lower
row
X0.1 X0.3 X0.5 X0.7 X0.9
X0.11
X0.13
X0.15
X1.1 X1.3 X1.5 X1.7 X1.9
X1.11
X1.13
X1.15
S/S
S/S
#1
#2

Delta AS300 Series Specifications

General

Brand	Delta
Model	AS300 Series
Category	Control Unit
Language	English
