Delta ASD-A2 Series User Manual

ASDA-A2 Chapter 8 Parameters
Revision February, 2017 8-43
 The Source of External Pulse:
0: Low-speed optical coupler (CN1 Pin: PULSE, SIGN)
1: High-speed differential (CN1 Pin: HPULSE, HSIGN)

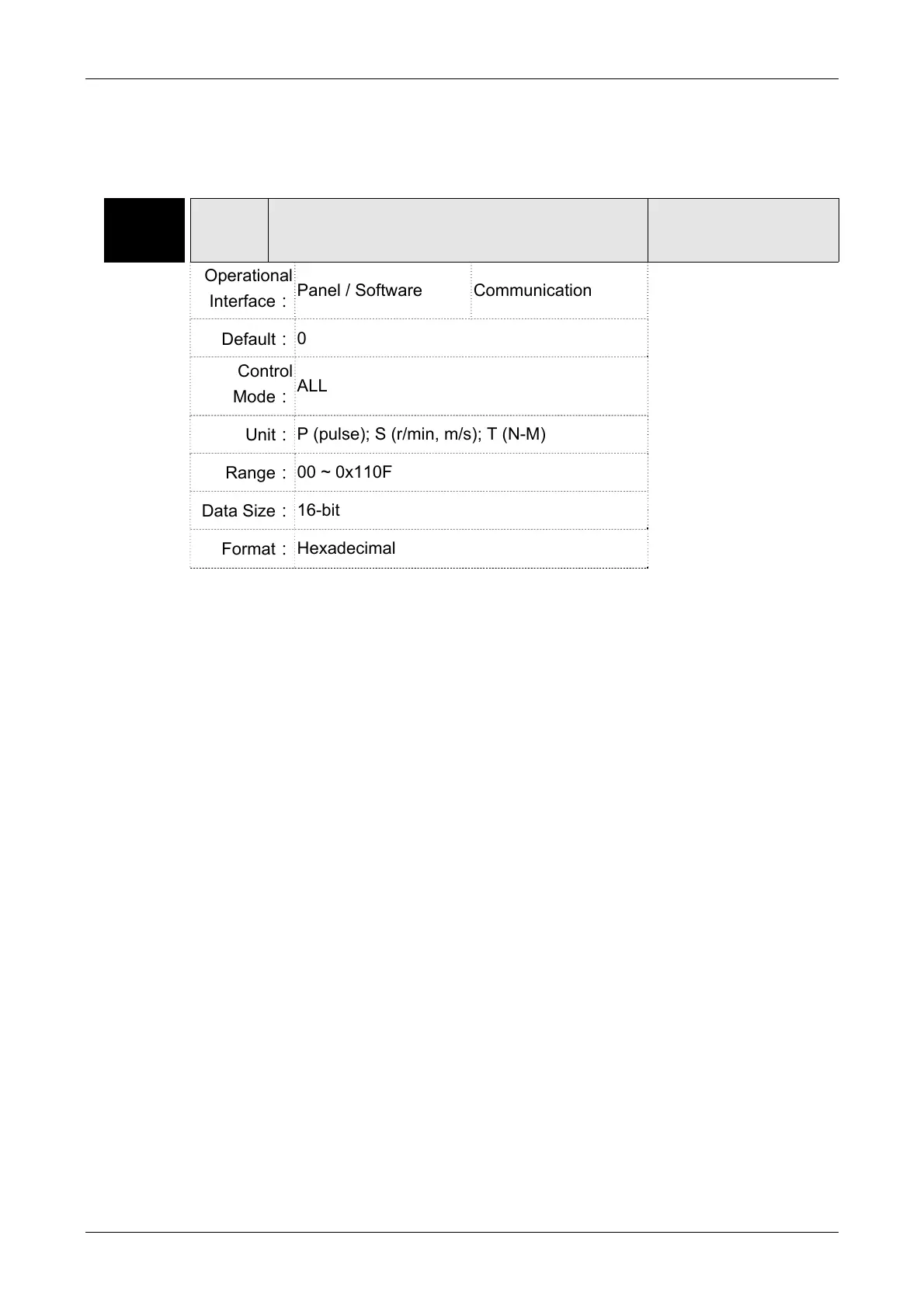

P1-01●
CTL
Input Setting of Control Mode and Control
Command
Address：0102H
0103H
Operational
Interface：
Panel / Software Communication
Related Section:
Section 6.1
Table 8.1
Default：
0
Control
Mode：
ALL
Unit：
P (pulse); S (r/min, m/s); T (N-M)
Range：
00 ~ 0x110F
Data Size：
16-bit
Format：
Hexadecimal

Delta ASD-A2 Series Specifications

General

Control Mode	Position, Speed, Torque
Feedback	Incremental encoder, Absolute encoder
Rated Output Power	0.1 kW to 15 kW
Power Supply	200-230V AC
Communication Interface	RS-485, CANopen
Protection Features	Overload, Overvoltage, Overcurrent, Overheat
