Delta ASD-A2 Series User Manual

Chapter 8 Parameters ASDA-A2
8-96 Revision February, 2017

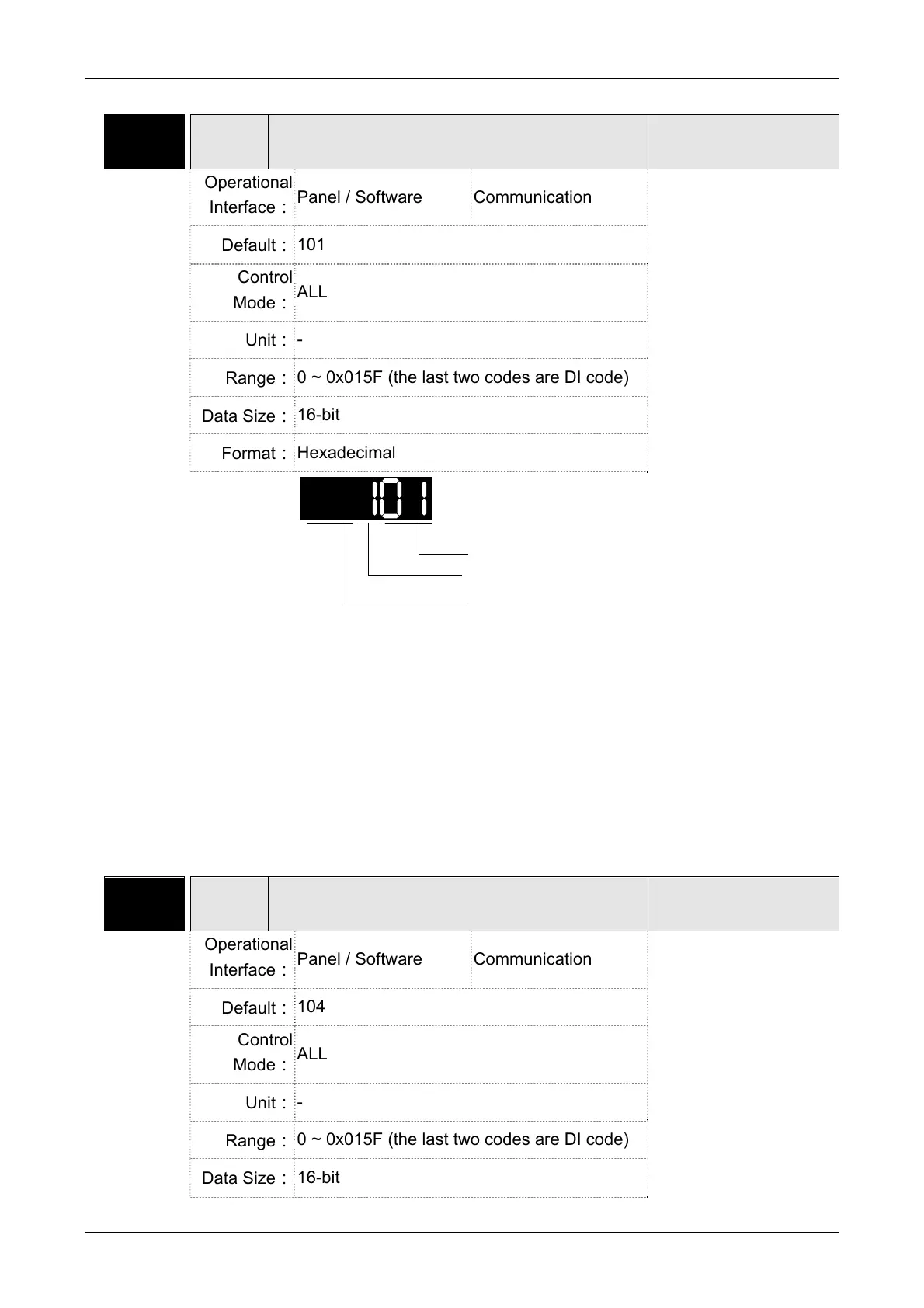

P2-10 DI1 DI1 Functional Planning
Address: 0214H
0215H
Operational
Interface：
Panel / Software Communication
Related Section:
Table 8.1
Default：
101
Control
Mode：
ALL
Unit：
-
Range：
0 ~ 0x015F (the last two codes are DI code)
Data Size：
16-bit
Format：
Hexadecimal
Settings：
Input function selection
Input contact
Not in use
 Input function selection: Please refer to table 8.1
 Input contact: a or b contact
0: Set the input contact as normally closed (b contact)
1: Set the input contact as normally opened (a contact)
(P2-10 ~ P2-17) The setting value of function programmed
When parameters are modified, please re-start the servo drive to
ensure it can work normally.
Note: Parameter P3-06 is used to set how digital inputs (DI) accepts
commands, through external terminal or the communication
which determined by P4-07.
P2-11 DI2 DI2 Functional Planning
Address: 0216H
0217H
Operational
Interface：
Panel / Software Communication
Related Section:
Table 8.1
Default：
104
Control
Mode：
ALL
Unit：
-
Range：
0 ~ 0x015F (the last two codes are DI code)
Data Size：
16-bit

Delta ASD-A2 Series Specifications

General

Control Mode	Position, Speed, Torque
Feedback	Incremental encoder, Absolute encoder
Rated Output Power	0.1 kW to 15 kW
Power Supply	200-230V AC
Communication Interface	RS-485, CANopen
Protection Features	Overload, Overvoltage, Overcurrent, Overheat
