well. While this setting is activated, the current position of the motor
will be reset as the target position of position command (same
function as CCLR).

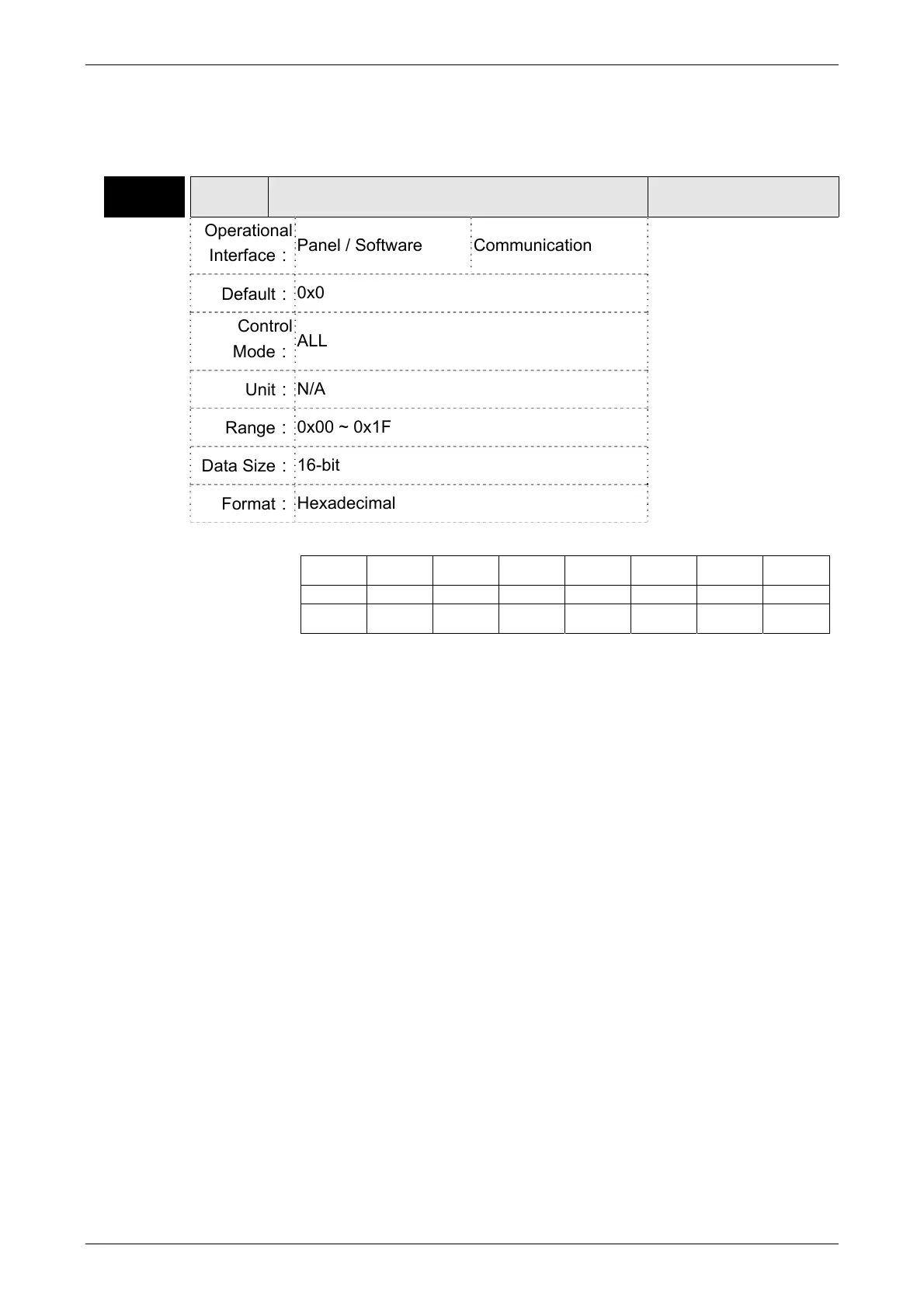

P0-50★
APSTS Absolute Coordinate System Status
Address: 0064H
0065H
Operational
Interface：
Panel / Software Communication
Related Section: N/A
Default：
0x0
Control
Mode：
ALL
Unit：
N/A
Range：
0x00 ~ 0x1F
Data Size：
16-bit
Format：
Hexadecimal
Settings：
Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0
Bit15 Bit14 Bit13 Bit12 Bit11 Bit10 Bit9 Bit8
Bit0: Absolute position status
Bit0=0: Normal
Bit0=1: Absolute position is lost
Bit1: Voltage level of battery
Bit0=0: Normal
Bit0=1: Low battery
Bit2: Status of encoder multiturn
Bit0=0: Normal
Bit0=1: Overflow
Bit3: Status of PUU
Bit0=0: Normal
Bit0=1: Overflow
Bit4: Absolute coordinate system status
Bit0=0: Normal
Bit0=1: Absolute coordinate system has not been set
Bit5 ~ Bit15: Reserved. Must be set to 0.

Delta ASD-A2 Series Specifications

General

Control Mode	Position, Speed, Torque
Feedback	Incremental encoder, Absolute encoder
Rated Output Power	0.1 kW to 15 kW
Power Supply	200-230V AC
Communication Interface	RS-485, CANopen
Protection Features	Overload, Overvoltage, Overcurrent, Overheat
