Delta ASD-A2R-1B43 Series User Manual

Chapter 8 ParametersASDA-A2R Series
Revision December, 2014
8-87

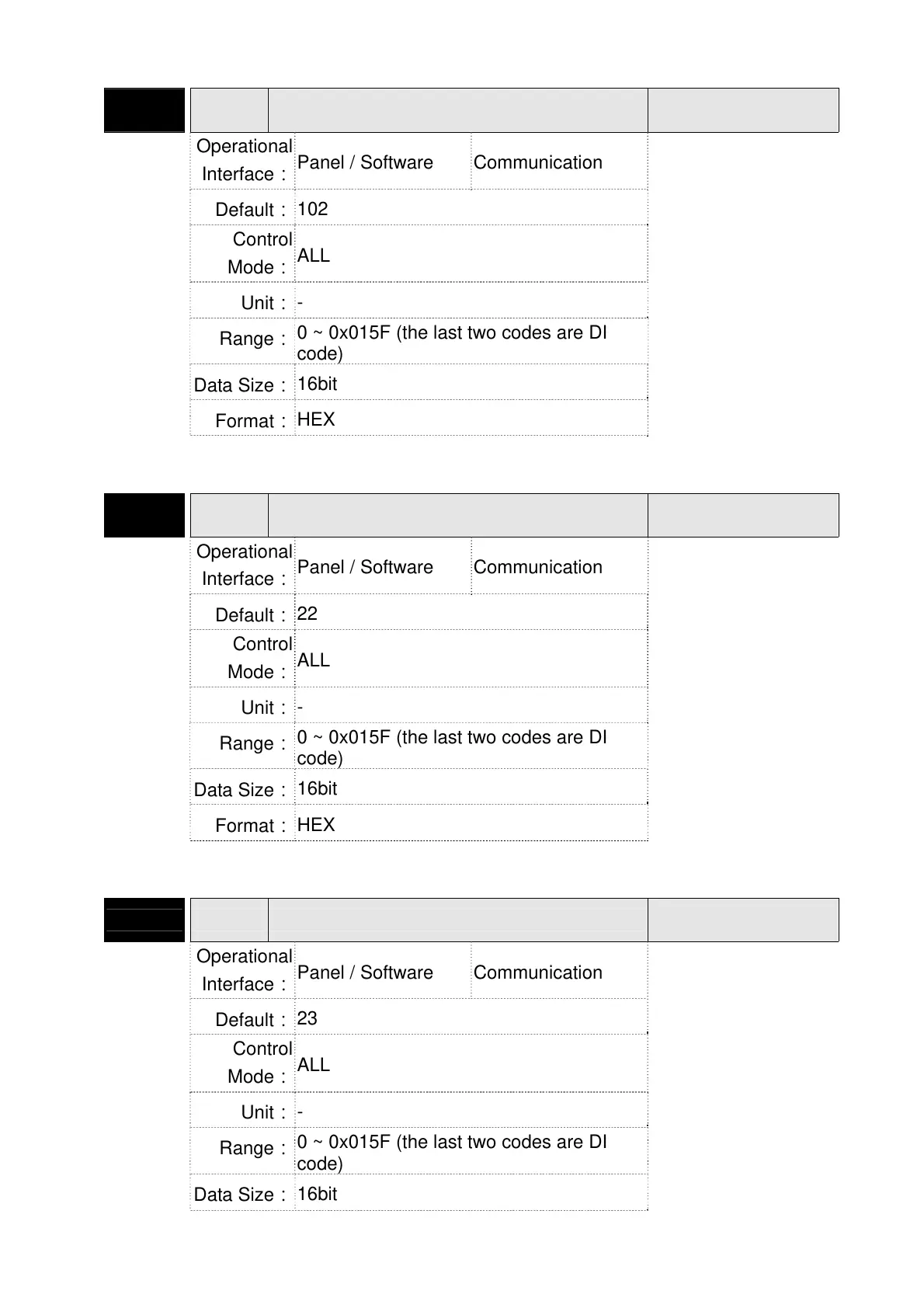

P2-14 DI5 DI5 Functional Planning
Address: 021CH
021DH
Operational
Interface：
Panel / Software Communication
Related Section:
Table 8.1
Default：
102
Control
Mode：
ALL
Unit：
-
Range：
0 ~ 0x015F (the last two codes are DI
code)
Data Size：
16bit
Format：
HEX
Settings：
Please refer to the description of P2-10
P2-15 DI6 DI6 Functional Planning
Address: 021EH
021FH
Operational
Interface：
Panel / Software Communication
Related Section:
Table 8.1
Default：
22
Control
Mode：
ALL
Unit：
-
Range：
0 ~ 0x015F (the last two codes are DI
code)
Data Size：
16bit
Format：
HEX
Settings：
Please refer to the description of P2-10
P2-16 DI7 DI7 Functional Planning
Address: 0220H
0221H
Operational
Interface：
Panel / Software Communication
Related Section:
Table 8.1
Default：
23
Control
Mode：
ALL
Unit：
-
Range：
0 ~ 0x015F (the last two codes are DI
code)
Data Size：
16bit
