Delta ASD-A2R-1B43 Series

Chapter 8 ParametersASDA-A2R Series
Revision December, 2014
8-109

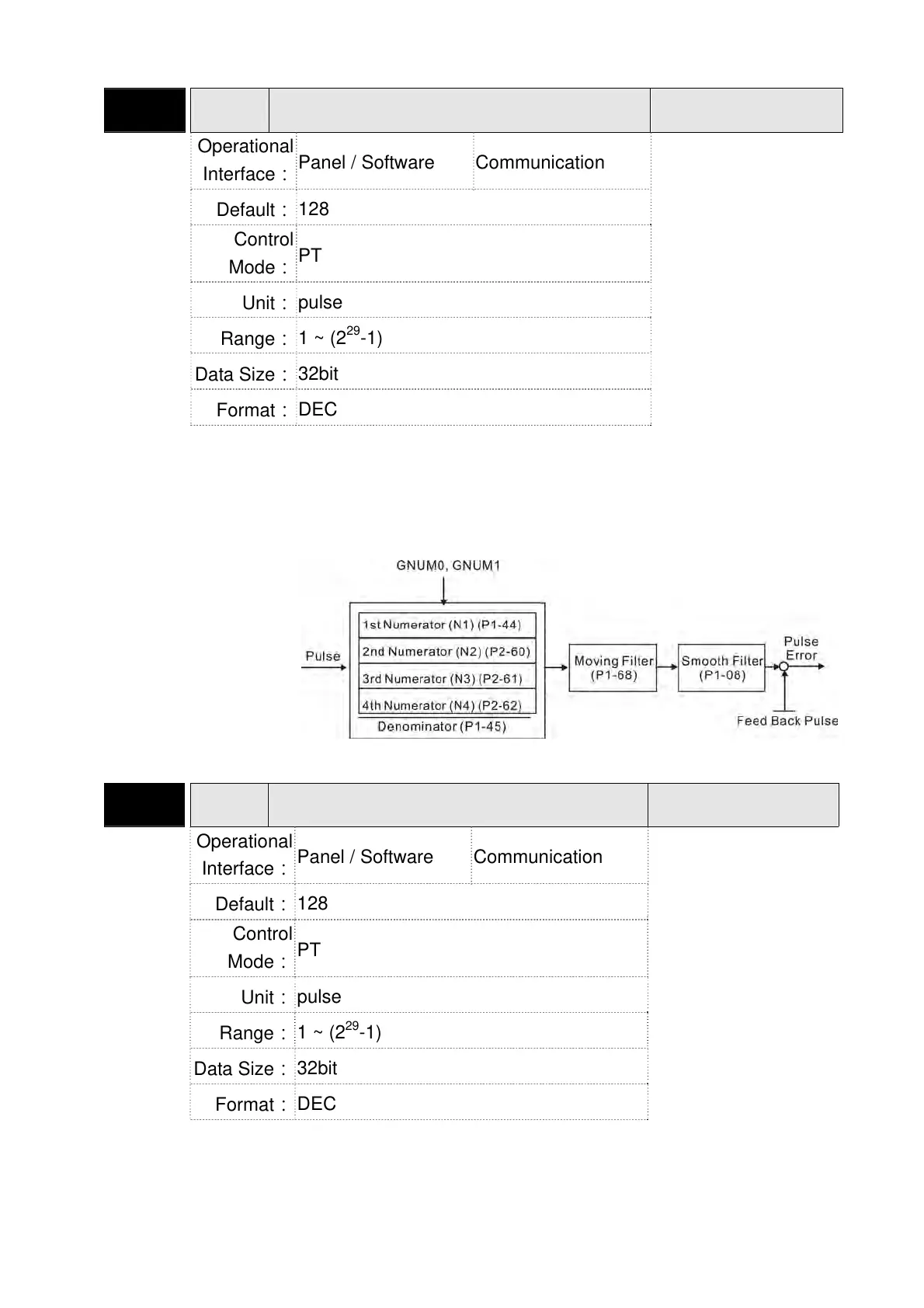

P2-60 GR4 Gear Ratio (Numerator) (N2)
Address: 0278H
0279H
Operational
Interface：
Panel / Software Communication
Related Section: -
Default：
128
Control
Mode：
PT
Unit：
pulse
Range：
1 ~ (2
29
-1)
Data Size：
32bit
Format：
DEC
Settings：
The numerator of electronic gear ratio can be selected via
DI.GNUM0 and DI.GNUM1 (Please refer to table 8.1). If
DI.GNUM0 and DI.GNUM1 are not set, P1-44 will automatically
be the numerator of electronic gear ratio. Please switch GNUM0
and GNUM1 in stop status to avoid the mechanical vibration.
P2-61 GR5 Gear Ratio (Numerator) (N3)
Address: 027AH
027BH
Operational
Interface：
Panel / Software Communication
Related Section: -
Default：
128
Control
Mode：
PT
Unit：
pulse
Range：
1 ~ (2
29
-1)
Data Size：
32bit
Format：
DEC
Settings：
Please refer to the description of P2-60.
