Delta ASD-A2R-1B43 Series User Manual

Chapter 8 ParametersASDA-A2R Series
Revision December, 2014
8-129

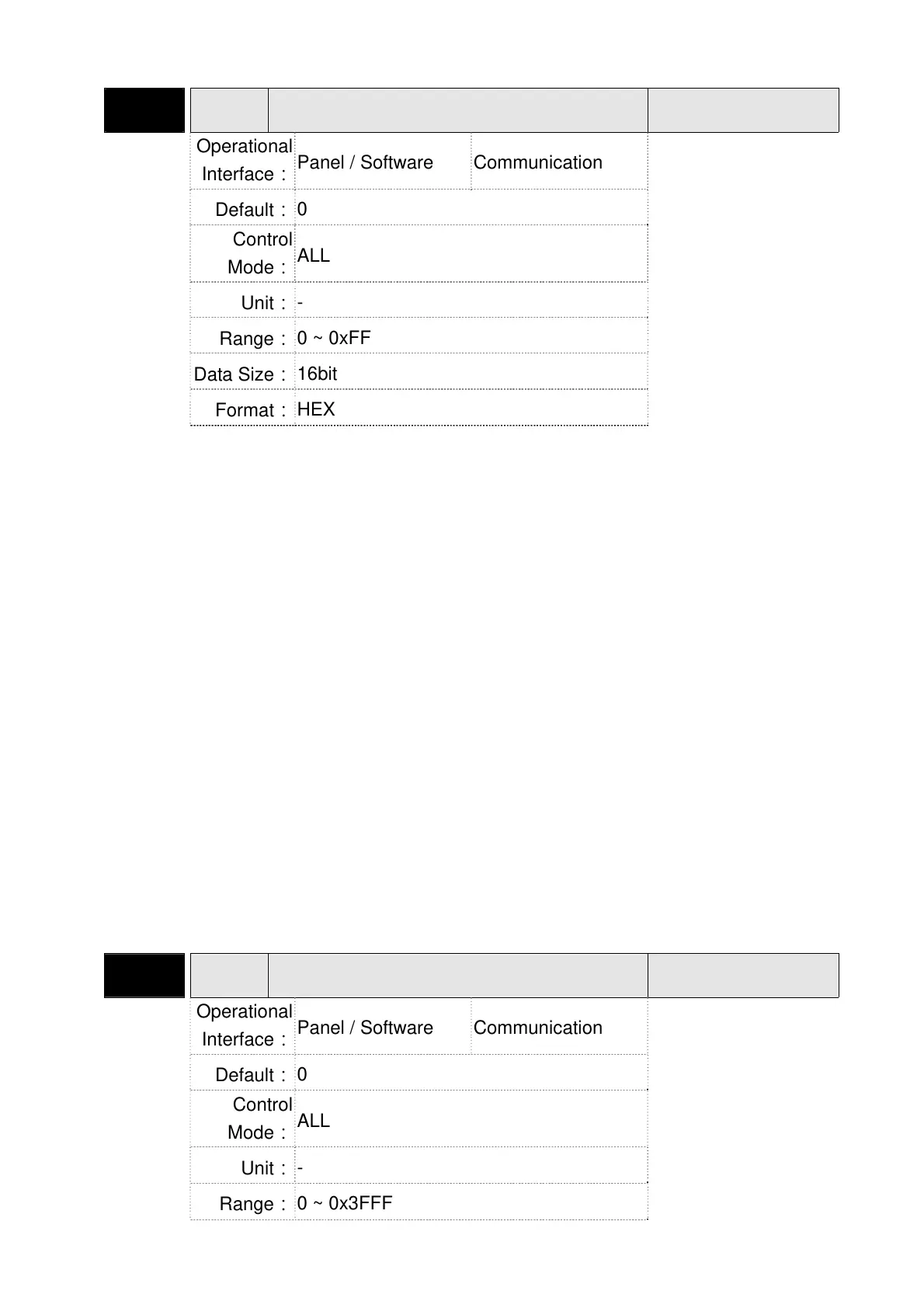

P4-06▲
■
FOT
Digital Output Register (Readable and
Writable)
Address: 040CH
040DH
Operational
Interface：
Panel / Software Communication
Related Section:
4.4.3
Default：
0
Control
Mode：
ALL
Unit：
-
Range：
0 ~ 0xFF
Data Size：
16bit
Format：
HEX
Settings：
bit 00: correspond to DO code=0x30
bit 01: correspond to DO code=0x31
bit 02: correspond to DO code=0x32
bit 03: correspond to DO code=0x33
bit 04: correspond to DO code=0x34
bit 05: correspond to DO code=0x35
bit 06: correspond to DO code=0x36
bit 07: correspond to DO code=0x37
bit 08: correspond to DO code=0x38
bit 09: correspond to DO code=0x39
bit 10: correspond to DO code=0x3A
bit 11: correspond to DO code=0x3B
bit 12: correspond to DO code=0x3C
bit 13: correspond to DO code=0x3D
bit 14: correspond to DO code=0x3E
bit 15: correspond to DO code=0x3F
If P2-18 is set to 0x0130, then the DO#1is bit 0 status of P4-06.
DO Code (0x30~0x3F) can be set via communication DO, and
then write into P4-06.
P4-07■
ITST Multi-function of Digital Input
Address: 040EH
040FH
Operational
Interface：
Panel / Software Communication
Related Section:
Section 4.4.4
Table 9.2
Default：
0
Control
Mode：
ALL
Unit：
-
Range：
0 ~ 0x3FFF
