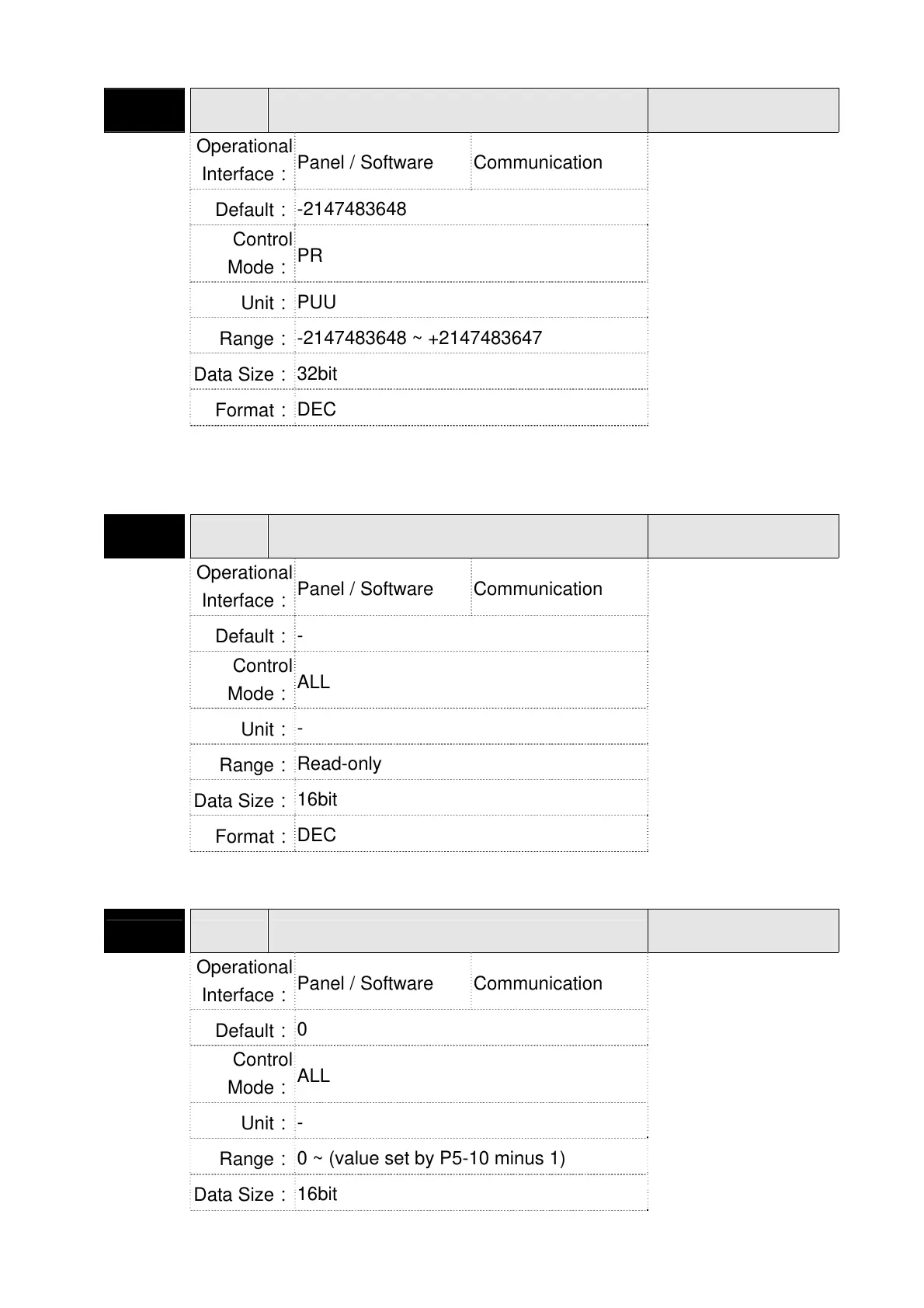

P5-09 SWLN Reverse Software Limit
Address: 0512H
0513H
Operational
Interface：
Panel / Software Communication
Related Section: -
Default：
-2147483648
Control
Mode：
PR
Unit：
PUU
Range：
-2147483648 ~ +2147483647
Data Size：
32bit
Format：
DEC
Settings：
In PR mode, if the motor rotates in reverse direction and its
command position exceeds the setting value of P5-09, it will
trigger AL.285.
P5-10★
AYSZ
Data Array－Data Size
Address: 0514H
0515H
Operational
Interface：
Panel / Software Communication
Related Section:
7.2
Default：
-
Control
Mode：
ALL
Unit：
-
Range：
Read-only
Data Size：
16bit
Format：
DEC
Settings：
Data size (N x 32 bits) means size N of data array
P5-11■
AYID Data Array - Address of Reading / Writing
Address: 0516H
0517H
Operational
Interface：
Panel / Software Communication
Related Section:
7.2
Default：
0
Control
Mode：
ALL
Unit：
-
Range：
0 ~ (value set by P5-10 minus 1)
Data Size：
16bit
