Chapter 9 Communication ASDA-A2R Series
9-2 Revision December, 2014
RS-485

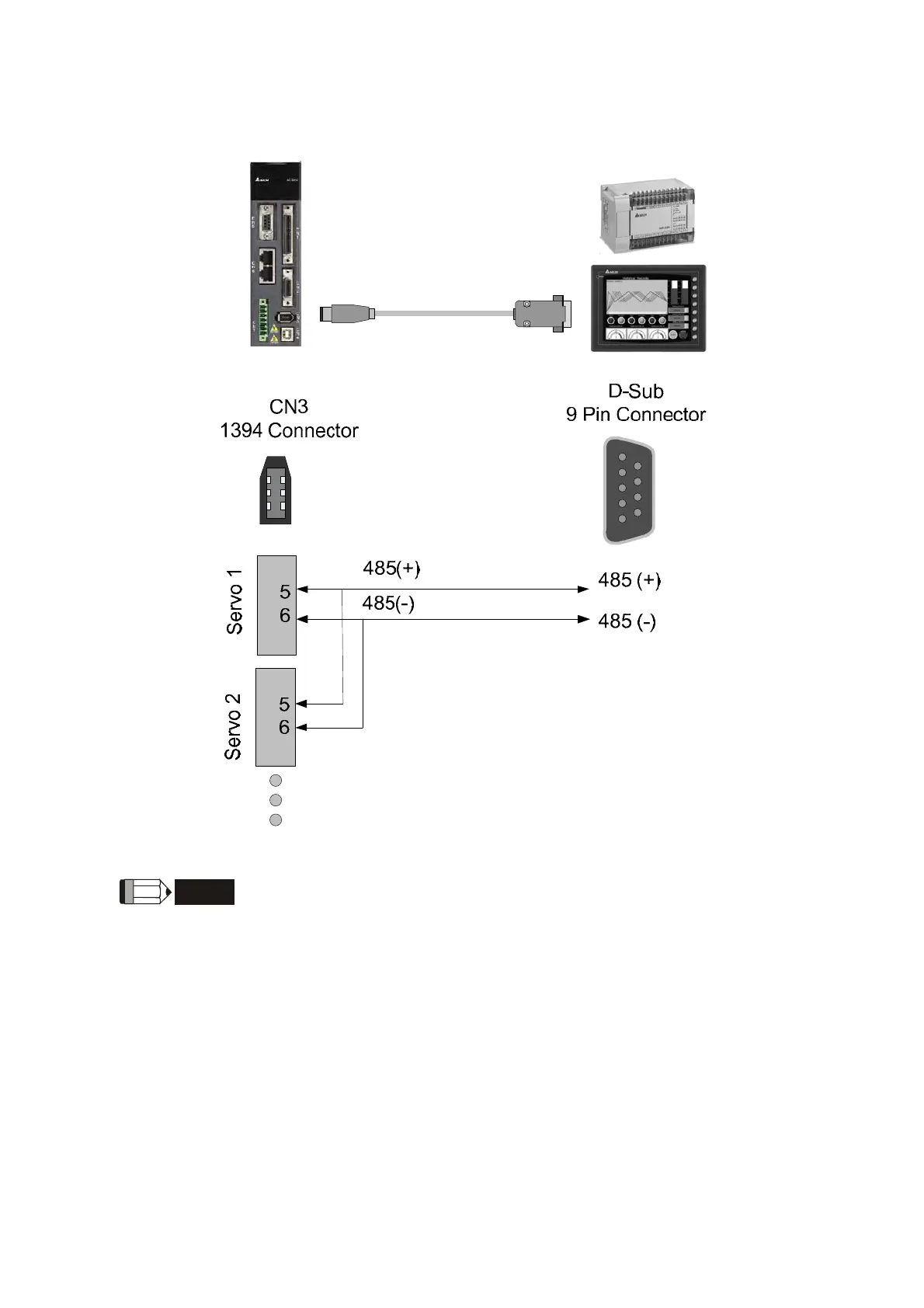

Configuration
NOTE
1） 100 meters of communication cable is suitable for less
interference environment. If the transmission speed is over
38400bps, the length of communication cable should not longer
than 15 meters so as to ensure the accuracy of transmission.
2） Numbers shown in the above diagram represent the pin number
of each connector.
3） Please use the power supply unit whose direct current is over 12
volt.
4） Using RS-485 can connect up to 32 servo drives at the same
time. REPEATER can be used to connect more servo drives. 127
is the maximum.
5） Please refer to Chapter 3.6 for CN3 Pin Definition.
To Next Page
