Chapter 11 Specifications ASDA-A2R Series
Revision December, 2014
11-9

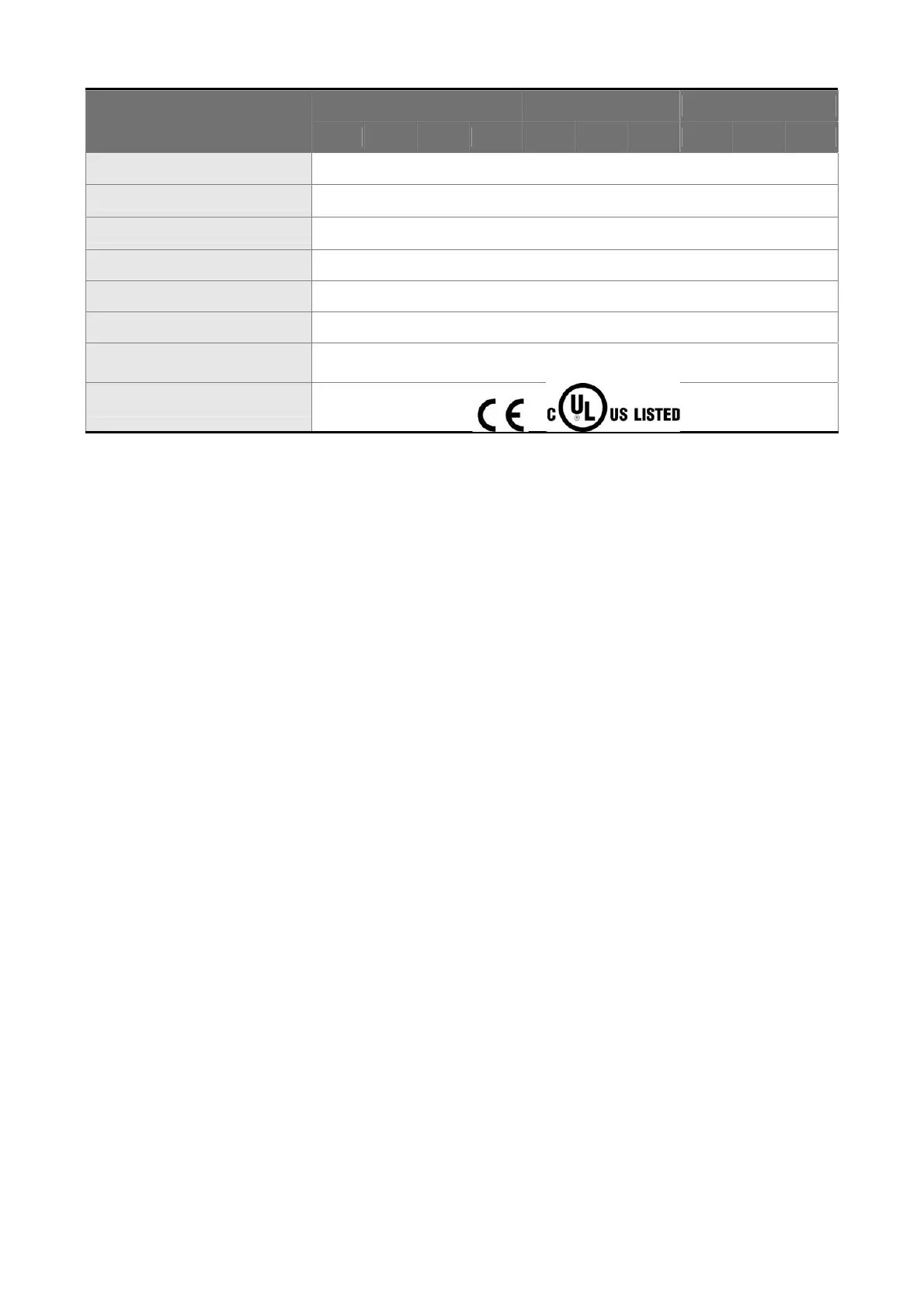

ECMA
E△13 E△18 G△13
05 10 15 20 20 30 35 03 06 09
Vibration grade (μm) 15
Operating temperature (˚C)
0℃ ~ 40℃
Storage temperature (˚C)
-10℃ ~ 80℃
Operating humidity 20 ~ 90%RH (non-condensing)
Storage humidity 20 ~ 90%RH (non-condensing)
Vibration capacity 2.5G
IP Rating
IP65 (use the waterproof connector and shaft seal installation (or oil
seal) model)
Approvals
Note:
*1 The rated torque is the continuous permissible torque between 0~40˚C operating temperature which is
suitable for the following heat sink dimension.
ECMA-_ _ 04 / 06 / 08：250mm x 250mm x 6mm
ECMA-_ _ 10：300mm x 300mm x 12mm
ECMA-_ _ 13：400mm x 400mm x 20mm
ECMA-_ _ 18：550mm x 550mm x 30mm
Material: Aluminum – F40, F60, F80, F100, F130, F180
*2 The built-in brake of the servo motor is for remaining the item in stop status. Do not use it to decelerate or
as the dynamic brake.
