Chapter 3 Wiring ASDA-A2R Series
Revision December, 2014
3-33

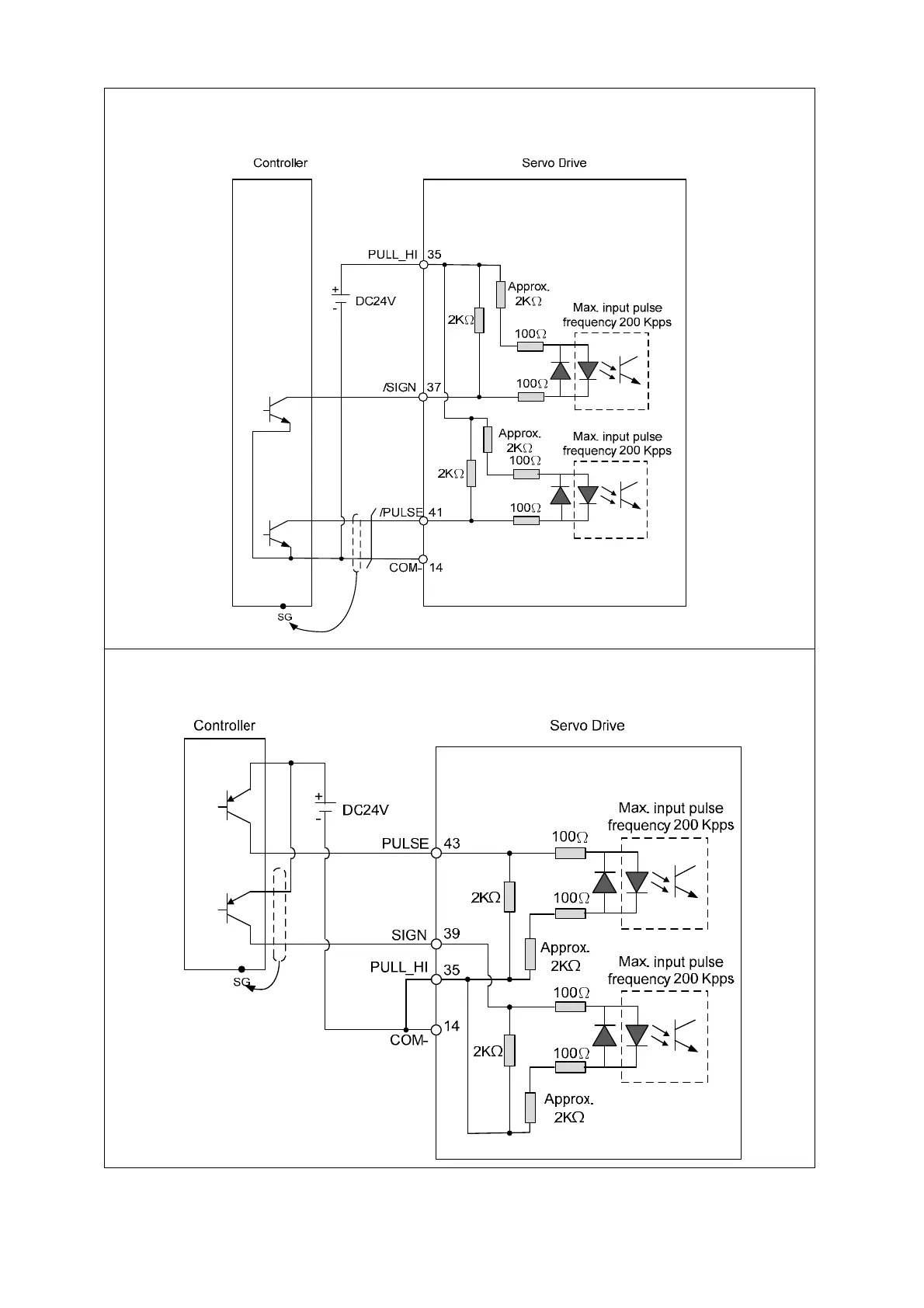

C3-3: The source of pulse input is open-collector NPN equipment and applies the
external power.
C3-4: The source of pulse input is open-collector PNP equipment and applies the
external power.
