Chapter 3 Wiring ASDA-B2
3-8 Revision May, 2018
3.1.5 Specification of Encoder Cable Connector

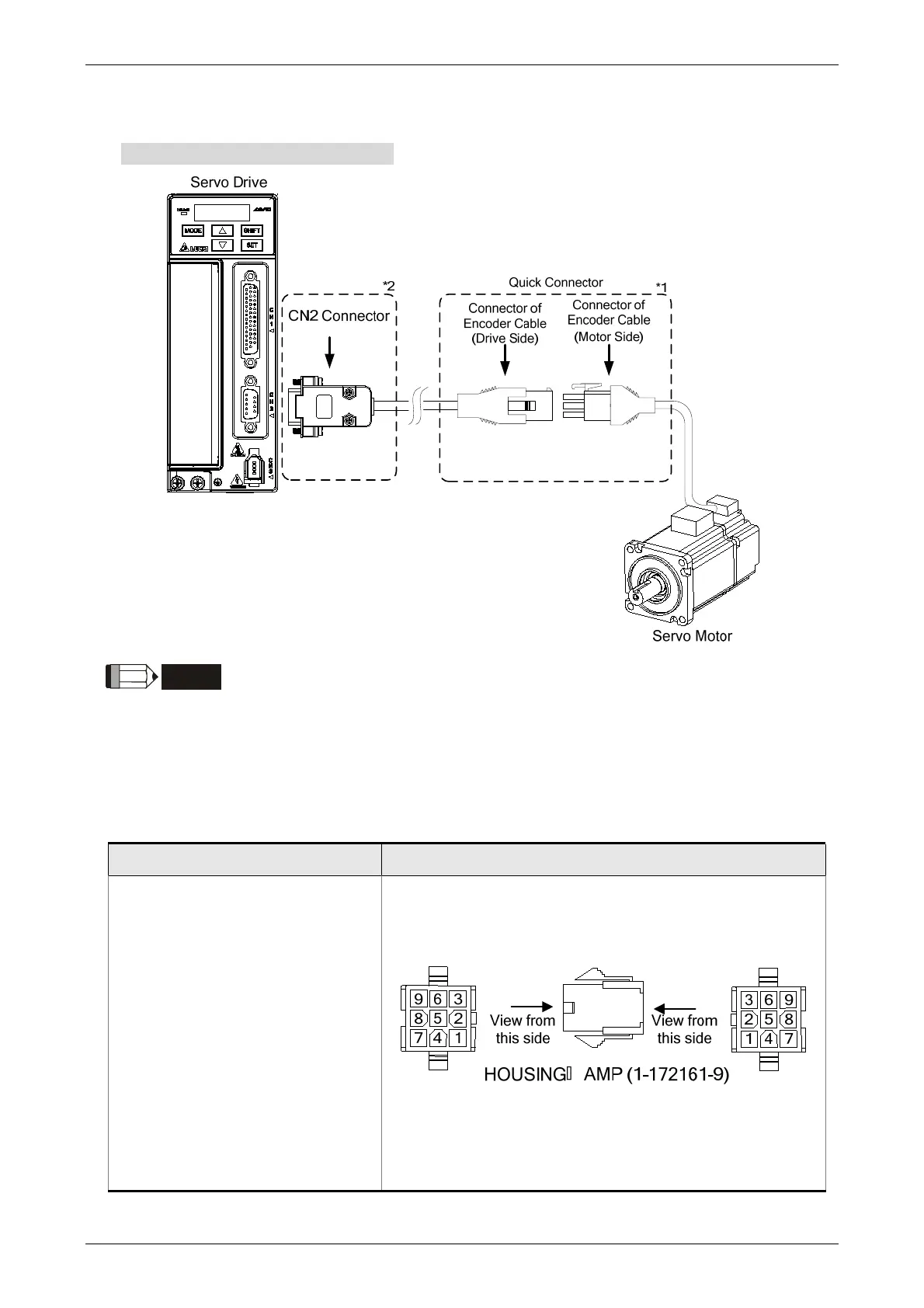

Encoder Connection (Diagram 1)
NOTE
This diagram shows the connection between the servo drive and the
motor encoder. It is not drawn by the practical scale and specification
will be different according to the selected servo drive and motor model.
1.
Please refer to the Section of Specification and Definition of Encoder
Connector.
2. Please refer to section 3.4 CN2 Connector.
Motor Model Connector of Encoder Cable
ECMA-C△0401S (100W)
ECMA-C△0602S (200W)
ECMA-C△0604S (400W)
ECMA-C△0604H (400W)
ECMA-CM0604PS (400W)
ECMA-C△08047 (400W)
ECMA-C△0807S (750W)
ECMA-C
△
0807H (750W)
ECMA-CM0807PS (750W)
ECMA-C△0907S (750W)
ECMA-C△0910S (1000W)
