ASDA-B2 Chapter 3 Wiring
Revision May, 2018 3-33

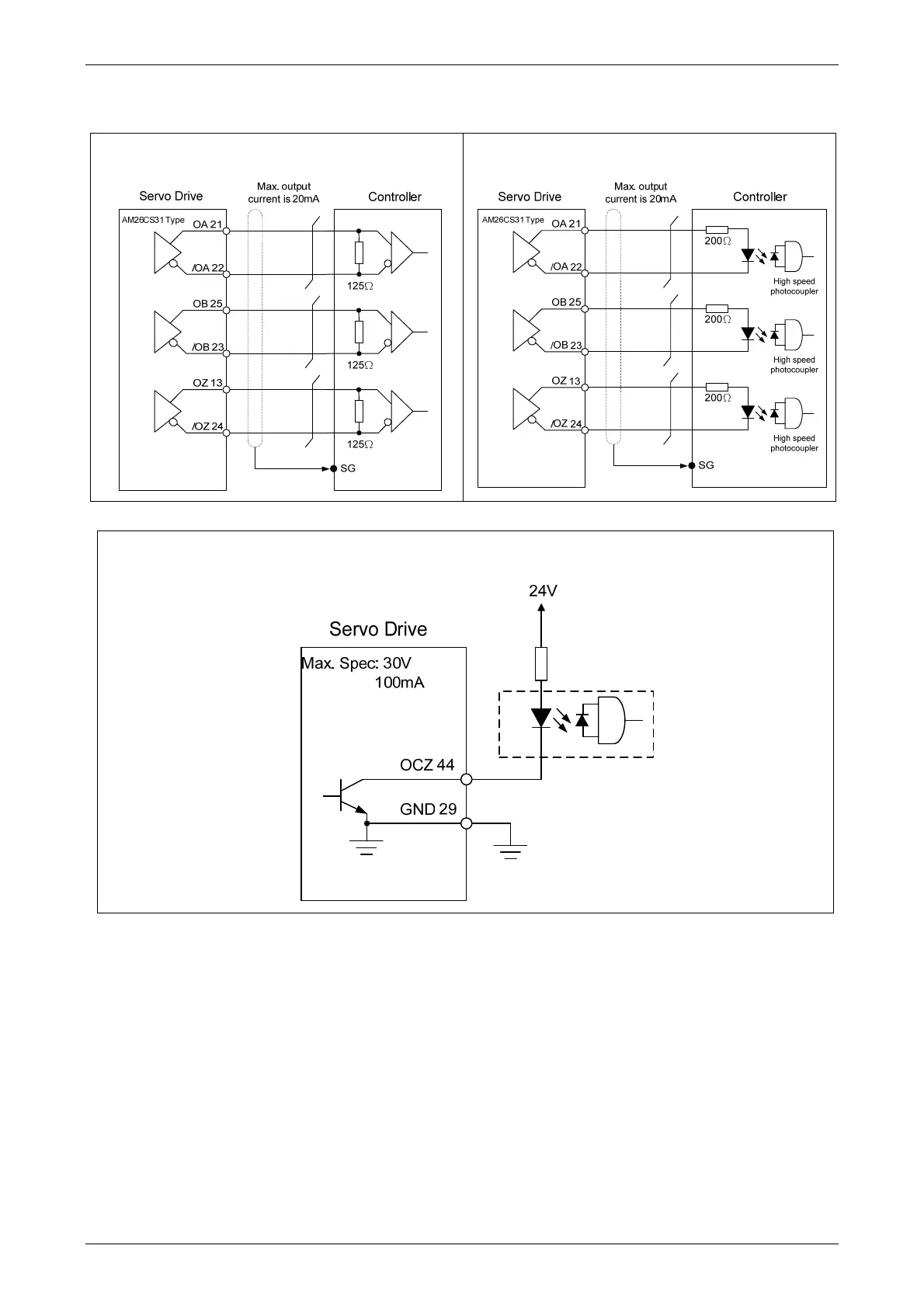

C13: Encoder signal output (Line driver) C14: Encoder signal output (Opto-isolator)
C15: Encoder OCZ output (Open-collector Z-pulse output)
