Chapter 8 Option Cards CFP2000
8-13

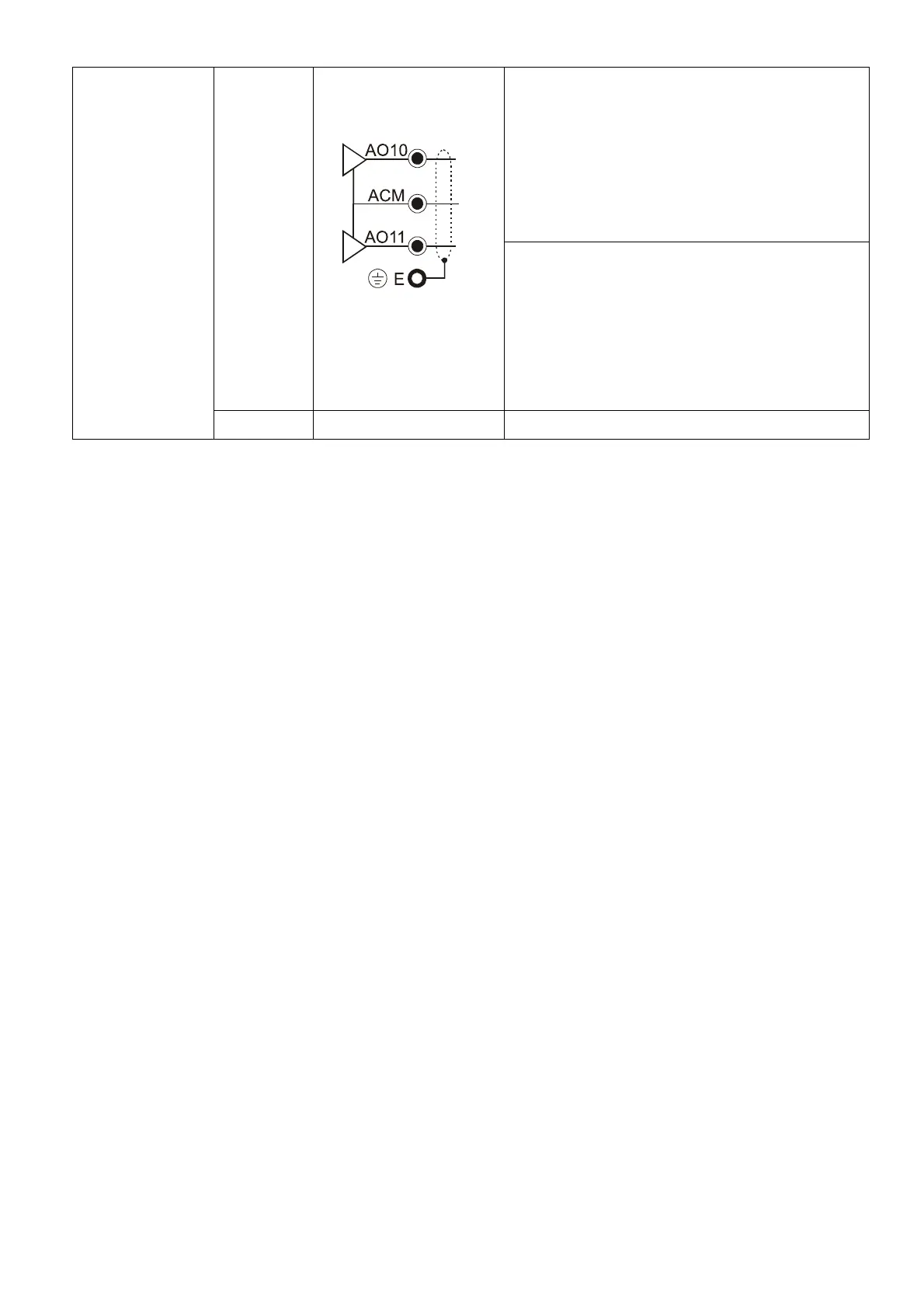

Multi-function analog
output
AVO:
0–10 V Max. output current 2 mA, Max. load 5 kΩ
Output current: 2 mA max
Resolution: 0–10 V corresponds to Max.
operation frequency
Switch: AO10 / AO11 Switch, default 0–10 V
ACO:
0–20 mA Max. Load 500 Ω
Output current: 20 mA max
Resolution: 0–20 mA / 4–20 mA corresponds to
Max. operation frequency
Switch: AO10 / AO11 Switch, default 0–10 V
ACM Analog Signal Common Common for analog terminals
