Delta CFP2000 Series - Dimensions

Chapter 1 IntroductionCFP2000
1-13

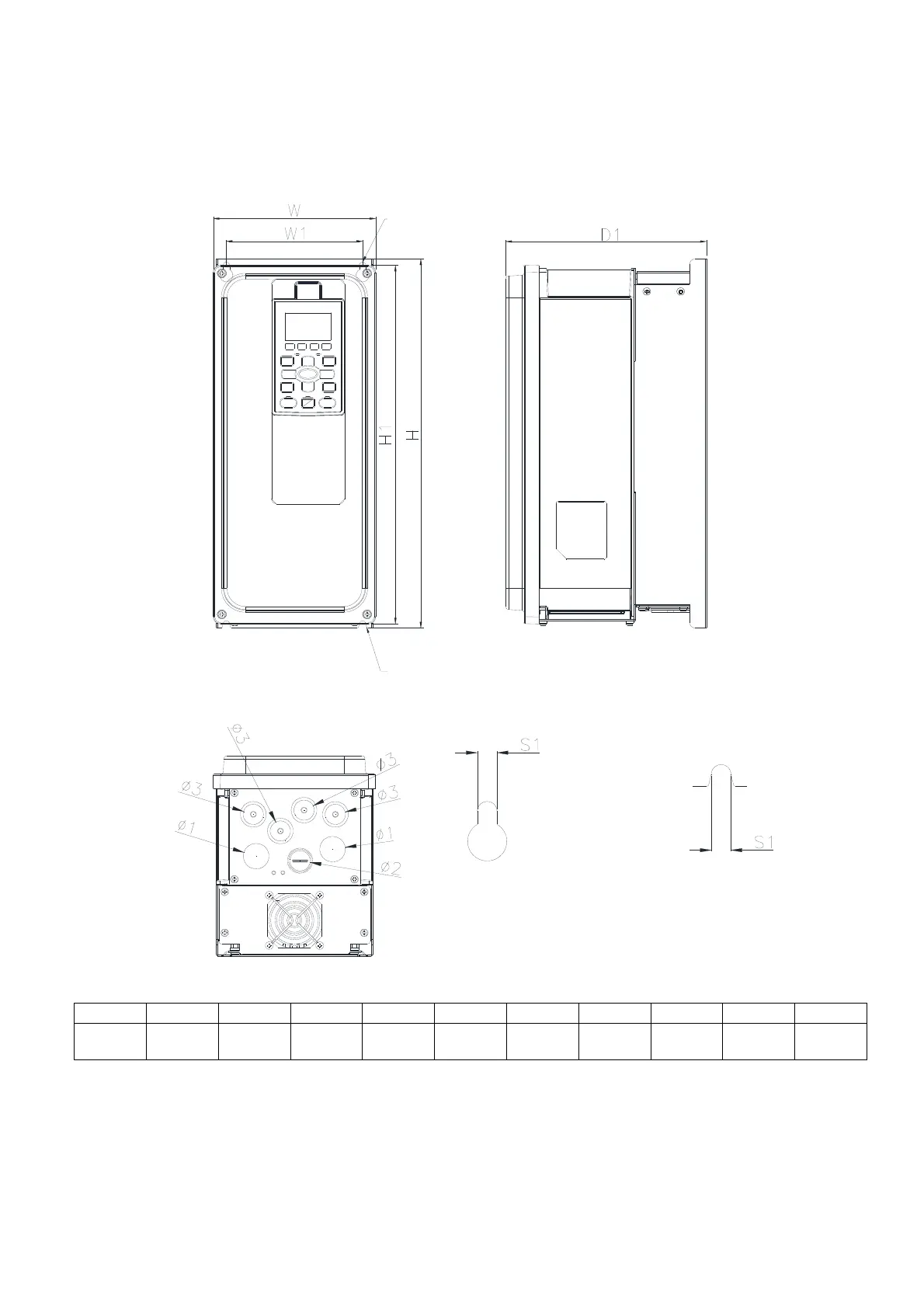

1-6 Dimensions
Frame A
A-1: VFD007FP4EA-52, VFD015FP4EA-52, VFD022FP4EA-52, VFD037FP4EA-52, VFD040FP4EA-52,
VFD055FP4EA-52, VFD075FP4EA-52
DETAIL B
(MOUNTING HOLE)
DETAIL A
(MOUNTING HOLE)
SEE DETAIL B
Unit: mm [inch]
Frame W W1 H H1 D D1 S1 Φ1 Φ2 Φ3
A-1
161.0
[6.34]
135.0
[5.31]
366.4
[14.43]
356.0
[14.02]
-
199.0
[7.83]
6.5
[0.26]
25.4
[1.00]
20.3
[0.80]
20.3
[0.80]
Figure 1-15
Table 1-1
See Detail
A
See Detail B
Detail A
(Mounting Hole)
Detail B
(Mounting Hole)
