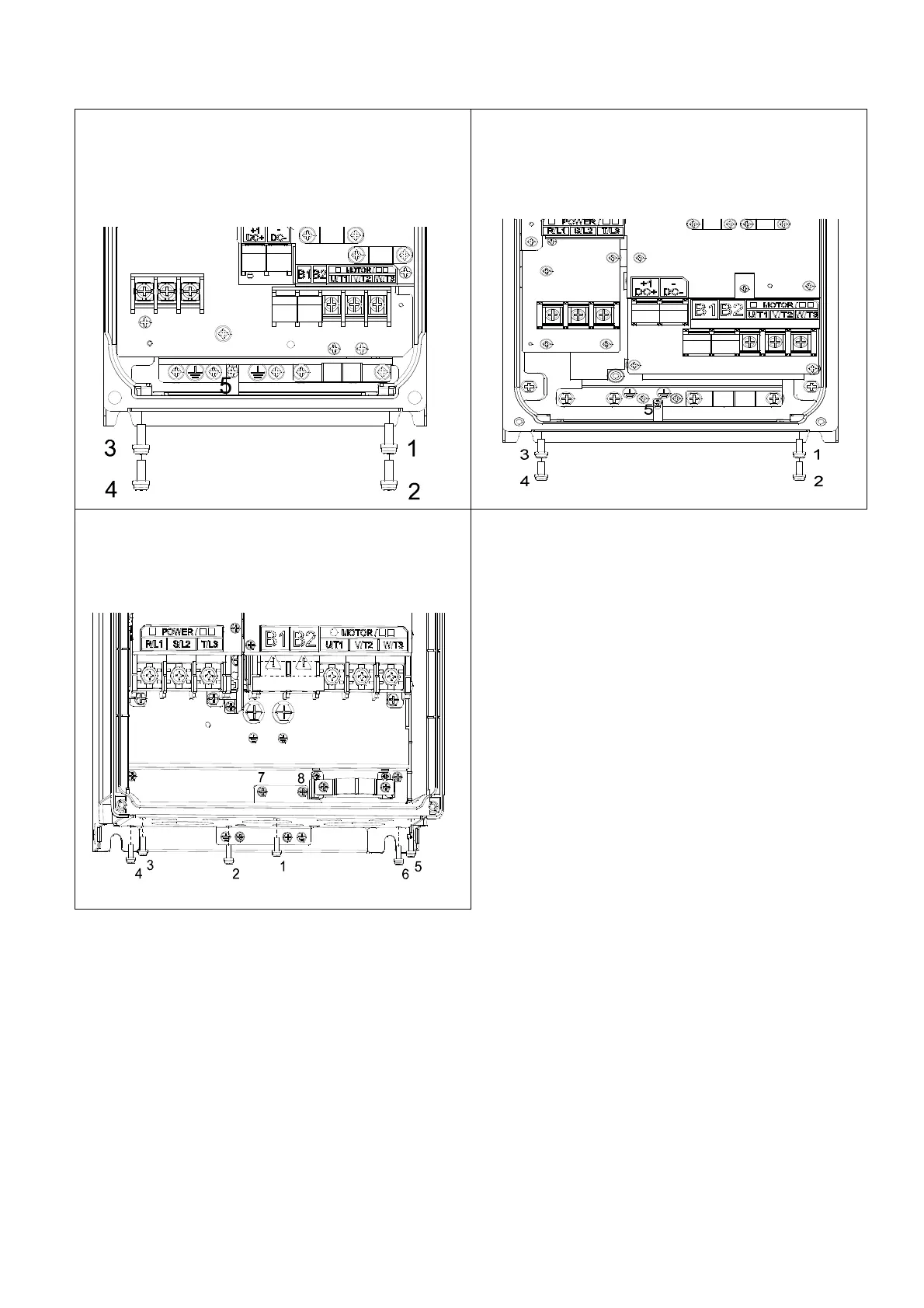

4-3 Wiring Plate Diagram
Frame A
Screw torque:
1–4: [14–16 kg-cm]
5: [6–8 kg-cm]
Frame B
Screw torque:
1–4: [14–16 kg-cm]
5: [6–8 kg-cm]
Frame C
Screw torque:
1–6: [12–15 kg-cm]
7–8: [12–15 kg-cm]
