Chapter 1 IntroductionCFP2000
1-15

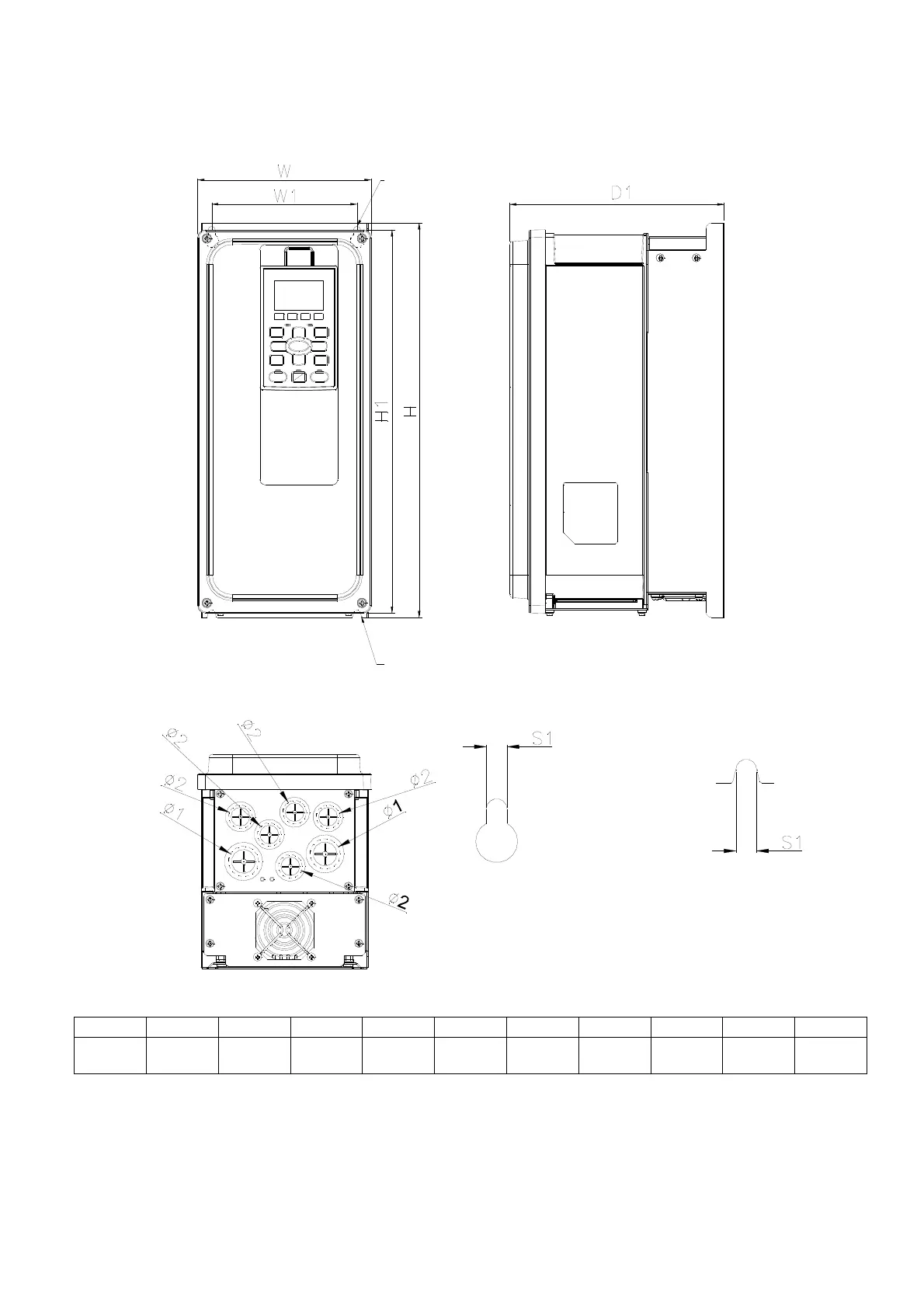

Frame A
A-3: VFD007FP4EA-41, VFD015FP4EA-41, VFD022FP4EA-41, VFD037FP4EA-41, VFD040FP4EA-41,
VFD055FP4EA-41, VFD075FP4EA-41
Unit: mm [inch]
Frame W W1 H H1 D D1 S1 Φ1 Φ2 Φ3
A-3
161.0
[6.34]
135.0
[5.31]
366.4
[14.43]
356.0
[14.02]
_ 199.0
[7.83]
6.5
[0.26]
28.0
[1.10]
22.0
[0.87]
_
Figure 1-17
Table 1-3
See Detail
A
See Detail B
Detail A
(
Mountin
g
Hole
)
Detail B
(
Mountin
g
Hole
)
