Chapter 1 IntroductionCFP2000
1-25

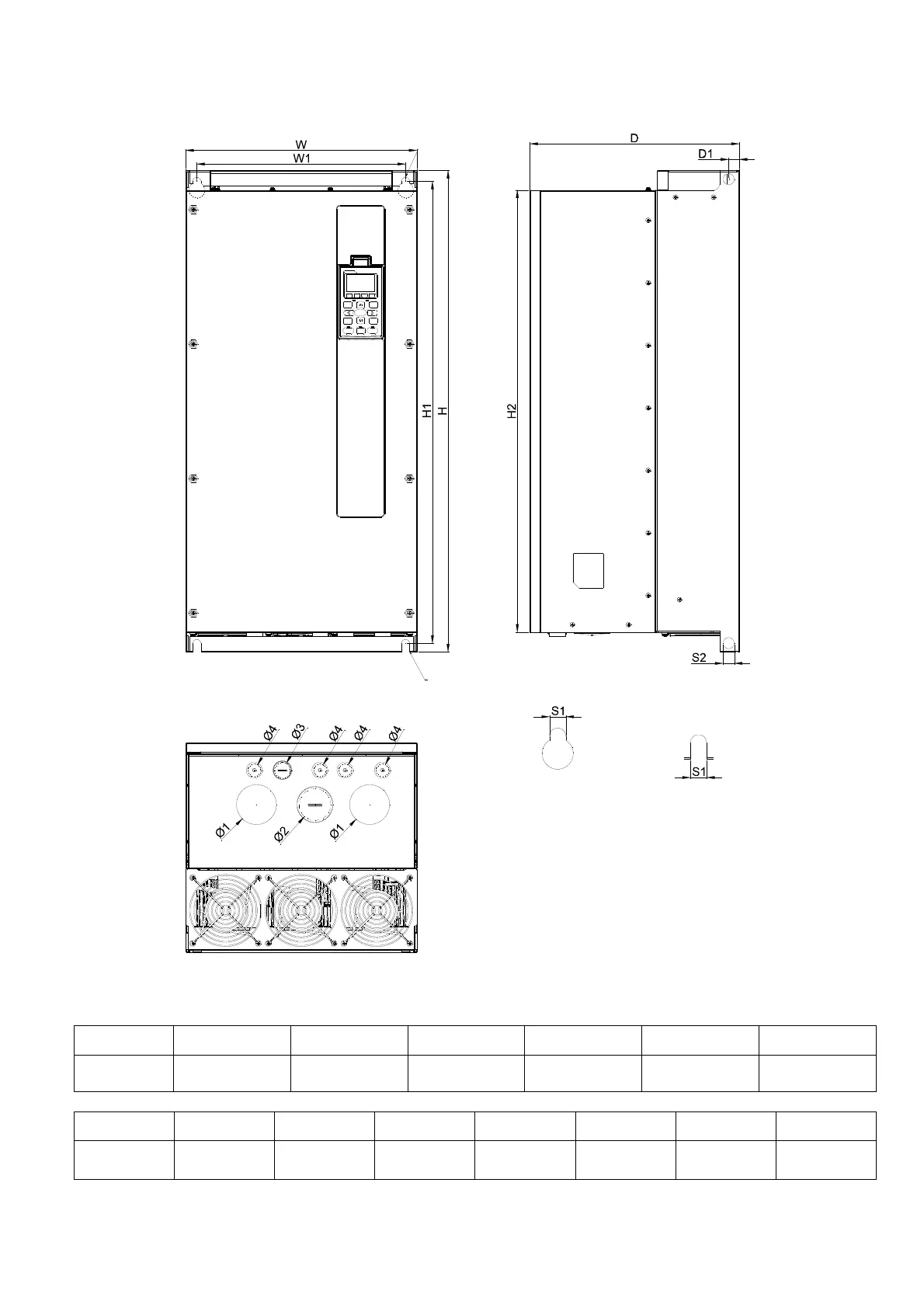

Frame D
D-1: VFD750FP4EA-52, VFD900FP4EA-52
Unit: mm [inch]
Frame W W1 H H1 H2 D
D-1
370.0
[14.57]
334.0
[13.15]
770.0
[30.31]
739.0
[29.09]
707.0
[27.83]
335.0
[13.19]
Frame D1 S1 S2 Φ1 Φ2 Φ3 Φ4
D-1
17.0
[0.67]
13.0
[0.51]
18.0
[0.71]
64.0
[2.52]
51.0
[2.01]
25.4
[1.00]
20.3
[0.80]
Figure 1-27
Table 1-13
See Detail A
See Detail B
Detail A
(Mounting Hole)
Detail B
(Mounting Hole)
