Chapter 3 UnpackingCFP2000
3-6
3-2 The Lifting Hook

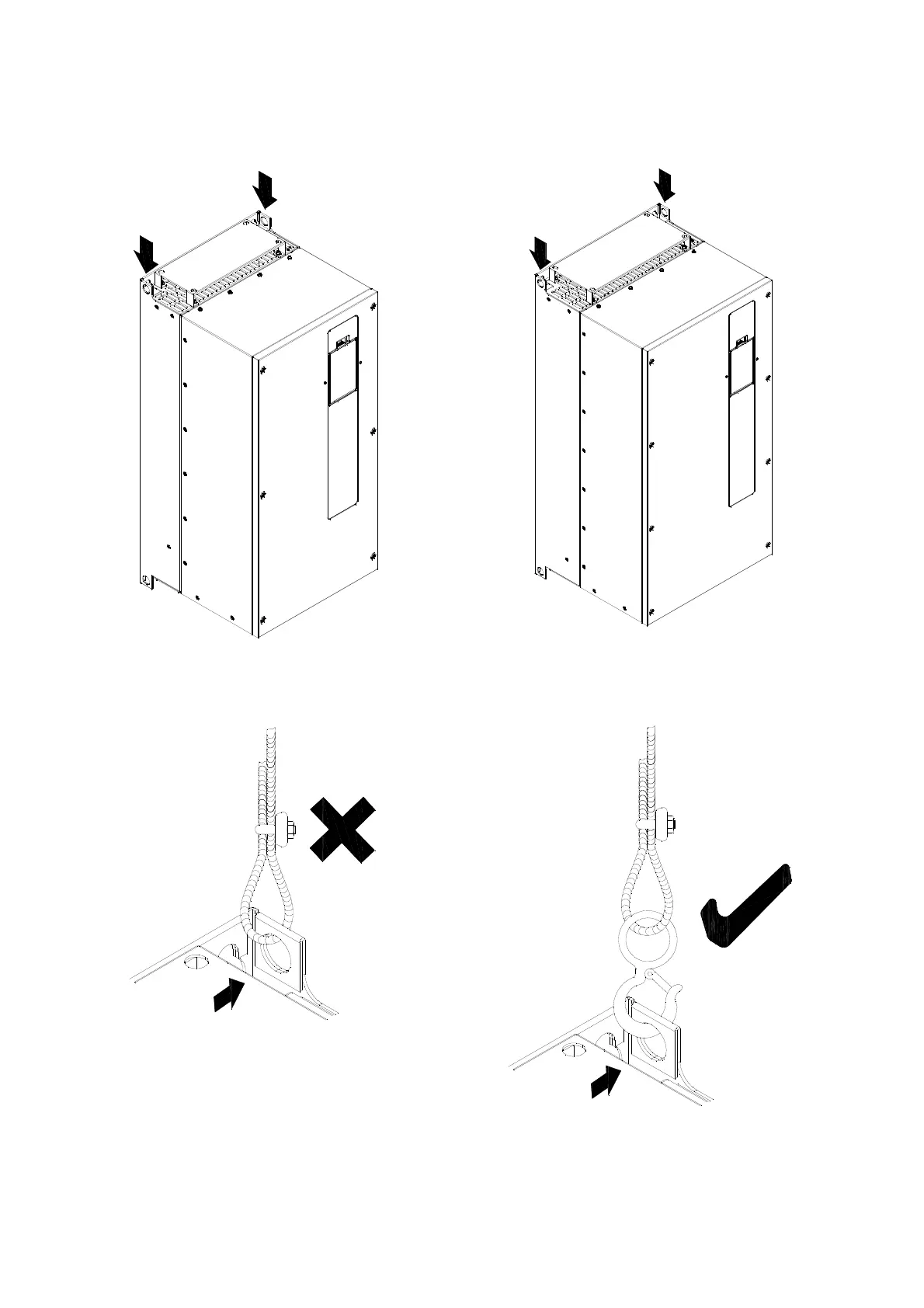

The arrows indicate the location of the lifting holes, as shown in figure below:
Frame D0
Frame D
Ensure the lifting hook properly goes through the lifting hole, as shown in the following diagram.
