Chapter 6 Control TerminalsCFP2000
6-6
Frame D
Applicable models:
VFD750FP4EA-41/-52/-52S, VFD900FP4EA-41/-52/-52S
Screw torque: 14–16 kg-cm / [12.1–13.9 lb-in] / [1.4–1.6 Nm]
1) Remove the keypad. (As shown in figure 6-16)
2) Loosen the screw and press the tabs on both sides to remove the cover. (As shown in figure 6-17)

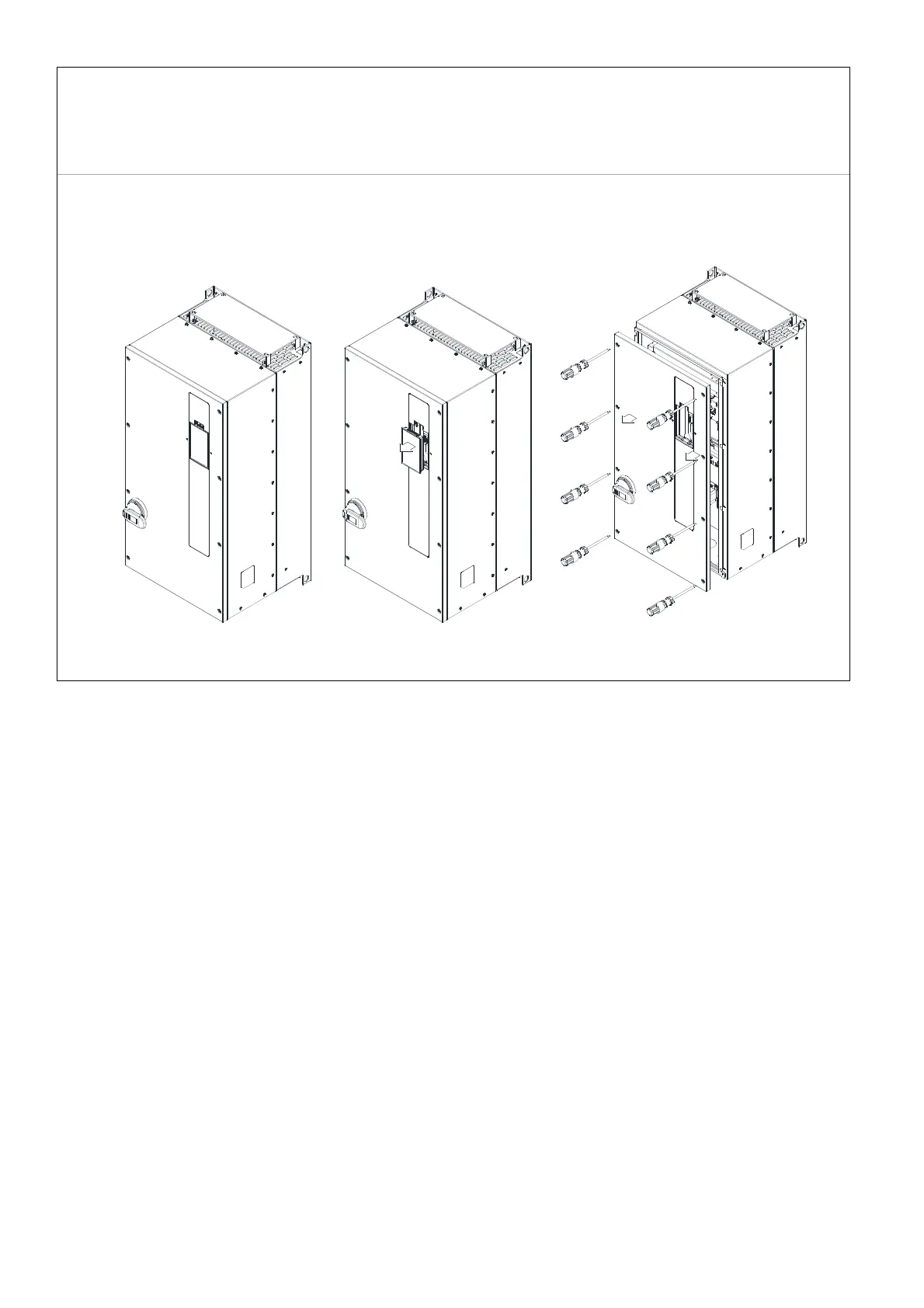

Figure 6-15 Figure 6-16 Figure 6-17
To Next Page
