Delta CP2000 Series

Chapter 7 Optional AccessoriesCP2000
7-19
Unit: mm
Input AC reactor
Delta part #
Dimensions

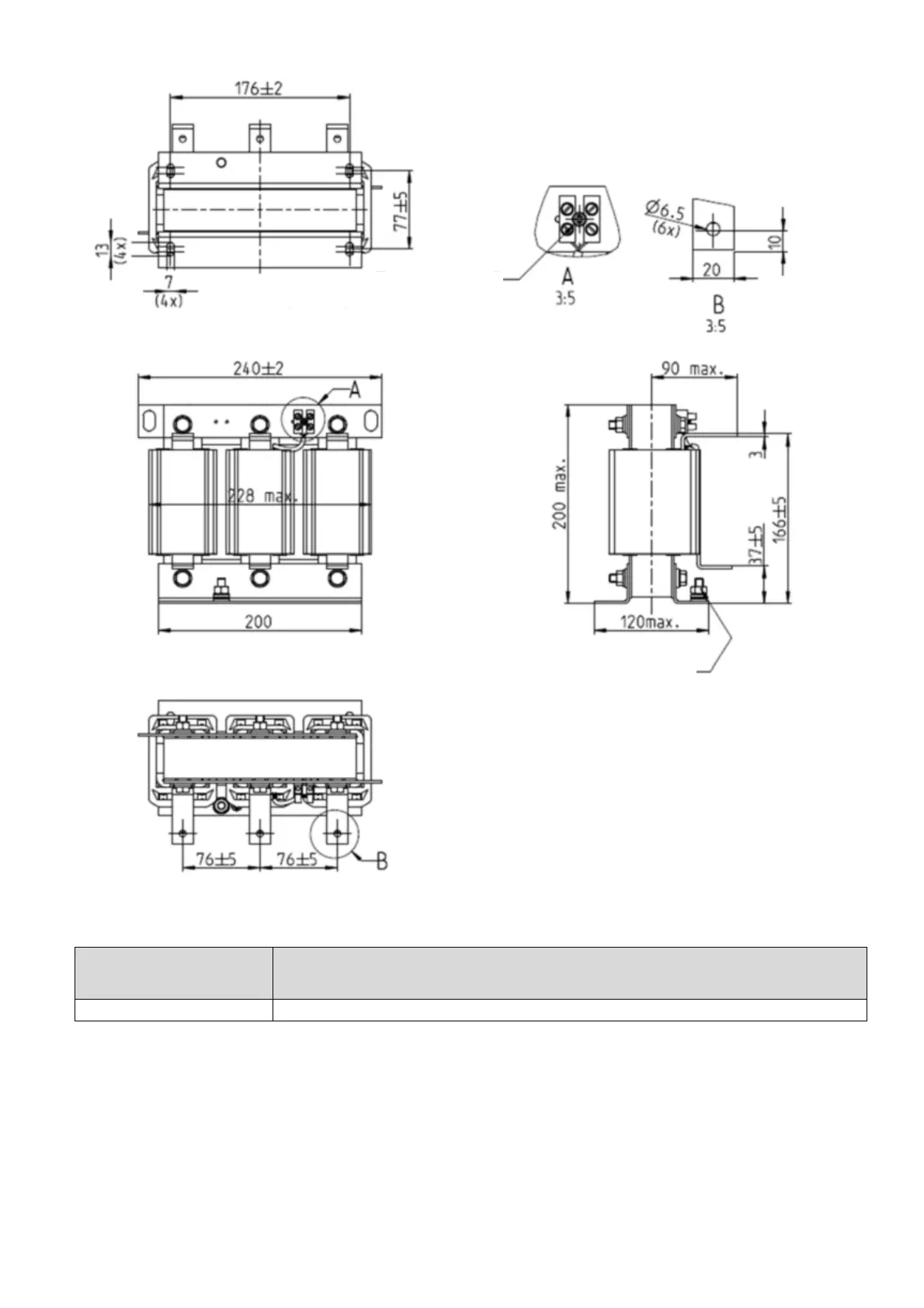

DR075AP170 Refer to the diagram above
Terminals: 4 mm
2
Tightening torque: 8.2–10.2 kg-cm /
[7.1–8.9 lb-in] / [0.8–1.0 Nm]
PE M8 x 23
Tightening torque: 6±0.3 Nm
Figure 7-10
Table 7-26
