Delta CP2000 Series

Chapter 1 IntroductionCP2000
1-8
1-6 Dimensions
Frame A
VFD007CP23A-21; VFD015CP23A-21; VFD022CP23A-21; VFD037CP23A-21; VFD055CP23A-21;
VFD007CP43A-21; VFD015CP43B-21; VFD022CP43B-21; VFD037CP43B-21; VFD040CP43A-21;
VFD055CP43B-21; VFD075CP43B-21; VFD007CP4EA-21; VFD015CP4EB-21; VFD022CP4EB-21;
VFD037CP4EB-21; VFD040CP4EA-21; VFD055CP4EB-21; VFD075CP4EB-21; VFD015CP53A-21;
VFD022CP53A-21; VFD037CP53A-21

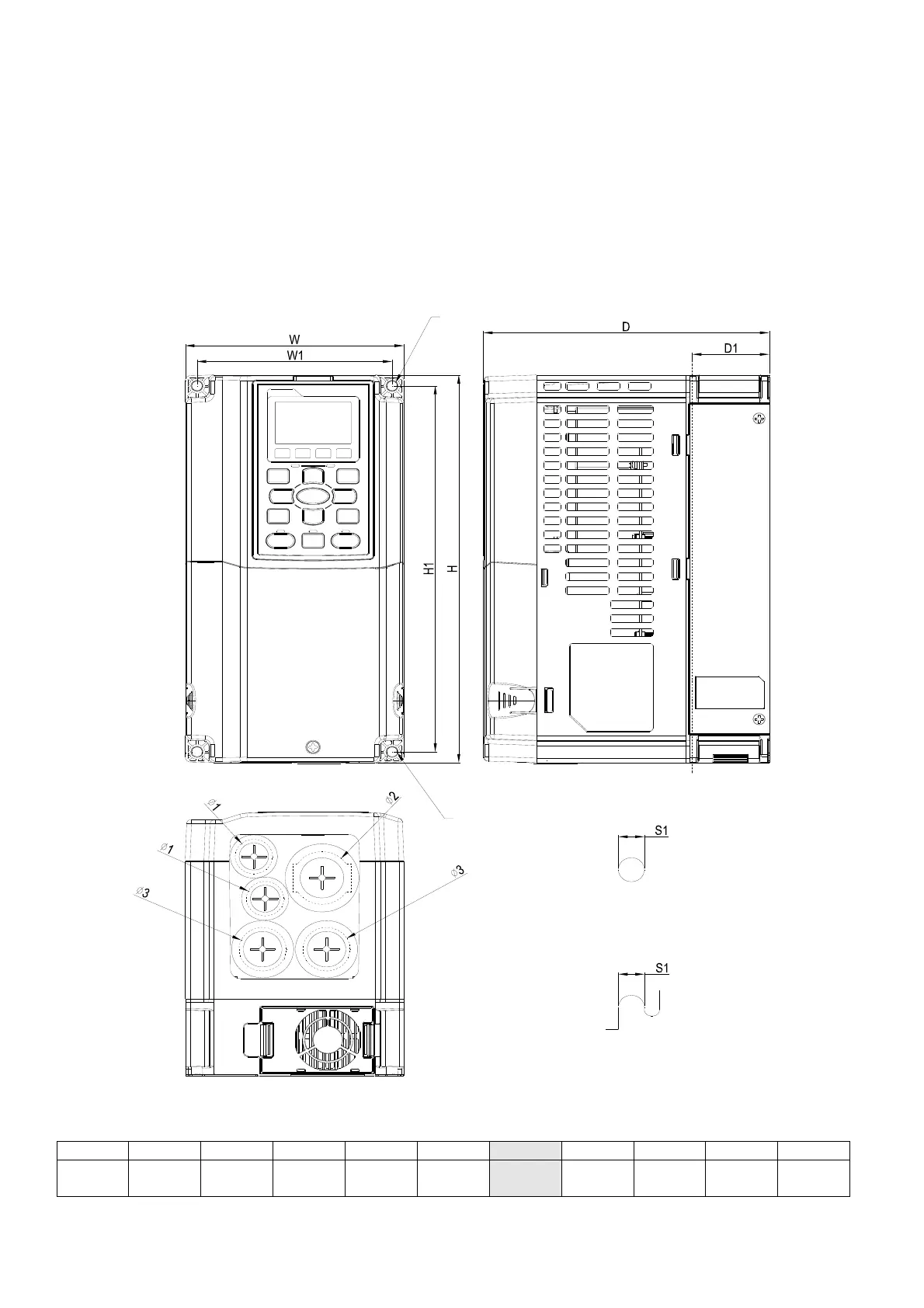

Figure 1-14
Unit: mm [inch]
Frame W H D W1 H1
D1* S1 Φ1 Φ2 Φ3
A
130.0
[5.12]
250.0
[9.84]
170.0
[6.69]
116.0
[4.57]
236.0
[9.29]
45.8
[1.80]
6.2
[0.24]
22.2
[0.87]
34.0
[1.34]
28.0
[1.10]
D1*: Flange mounting
See Detail
A
See Detail B
Detail A (Mounting Hole)
Detail B (Mounting Hole)
