Delta CP2000 Series User Manual

Chapter 8 Option CardsCP2000
8-15
8-8 CMC-DN01 -- Communication card, DeviceNet
8-8-1 Functions
1. Based on the high-speed communication interface of Delta HSSP protocol, able to conduct
immediate control to AC motor drive.
2. Supports Group 2 only connection and polling I/O data exchange.
3. For I/O mapping, supports Max. 32 words of input and 32 words of output.
4. Supports EDS file configuration in DeviceNet configuration software.
5. Supports all baud rates on DeviceNet bus: 125 Kbps, 250 Kbps, 500 Kbps and extendable
serial transmission speed mode.
6. Node address and serial transmission speed can be set up on AC motor drive.
7. Power supplied from AC motor drive.

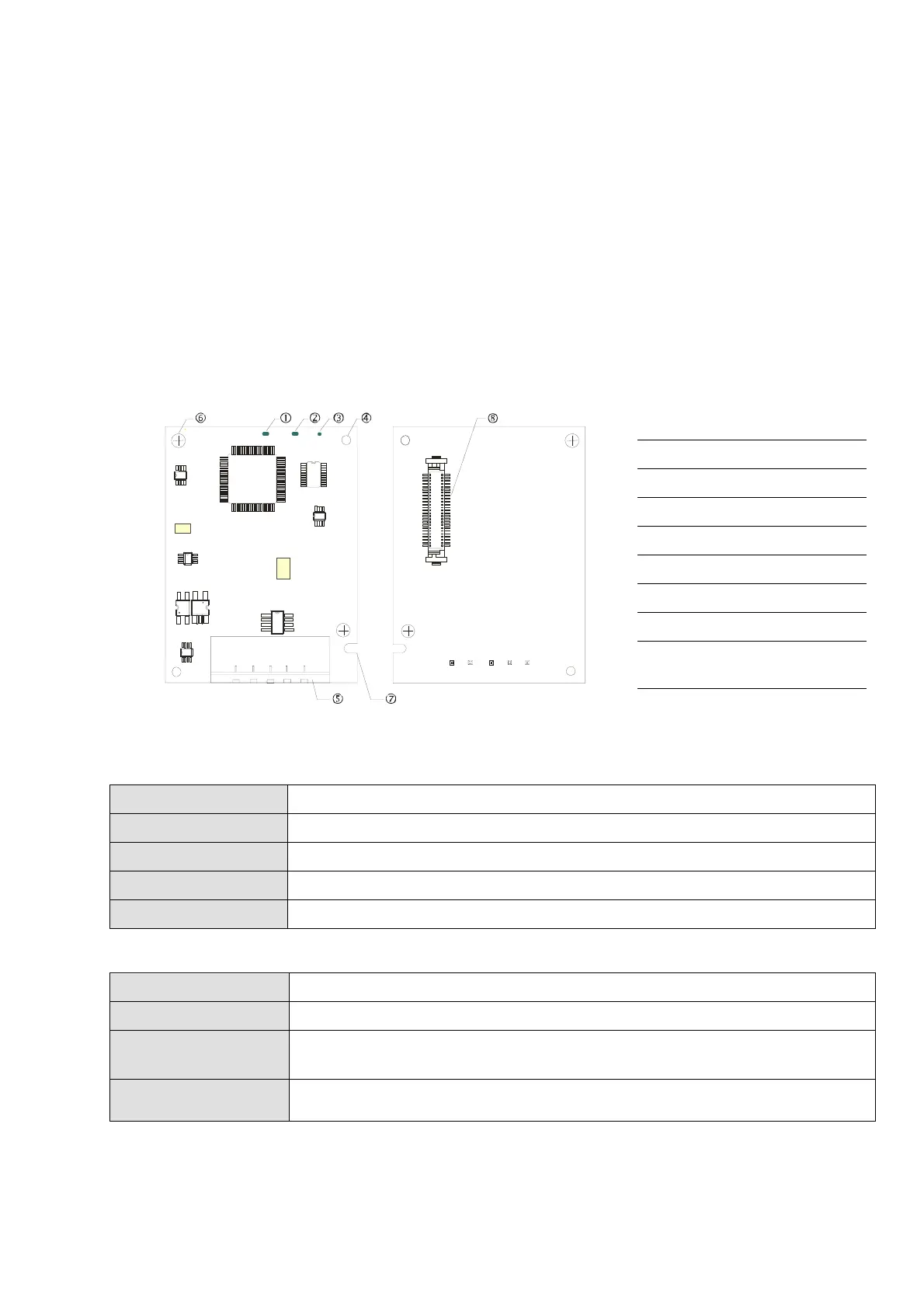

8-8-2 Product Profile
1. NS indicator
2. MS indicator
3. POWER indicator
4. Positioning hole
5. DeviceNet connection port
6. Screw fixing hole
7. Fool-proof groove
8. AC motor drive connection
port
8-8-3 Specifications
DeviceNet Connector
Interface 5-PIN open removable connector of 5.08 mm PIN interval
Transmission method
CAN
Transmission cable Shielded twisted pair cable (with 2 power cables)
Transmission speed
125 Kbps, 250 Kbps, 500 Kbps and extendable serial transmission speed mode
Network protocol DeviceNet protocol
AC Motor Drive Connection Port
Interface
50 PIN communication terminal
Transmission method SPI communication
Terminal function
1. Communicating with AC motor drive
2. Transmitting power supply from AC motor drive
Communication
protocol
Delta HSSP protocol

Delta CP2000 Series Specifications

General

Output Voltage	0 ~ Input Voltage
Communication Interface	RS-485
Storage Temperature	-20°C to 60°C
Input Voltage	200-240V AC, 380-480V AC
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
