Delta CP2000 Series User Manual

Chapter 7 Optional AccessoriesCP2000
7-30
Input AC reactor
Delta part #
A A1 B B1 B2 C D D1*D2 E C1 G1 G2 H
DR073AP334 228 240 215 40 170 133 8.5 7*13 152 75 176 200 97
DR091AP267 228 240 245 40 195 133 8.8 7*13 152 90 176 200 97
DR110AP221 228 240 245 40 195 138 8.5 7*13 152 75 176 200 102
Terminals: 4 mm
2
Tightening torque: 8.2–10.2 kg-cm /
[7.1–8.9 lb-in] / [0.8–1.0Nm]
PE M8 x 23
Tightening torque: 6±0.3 Nm
Unit: mm

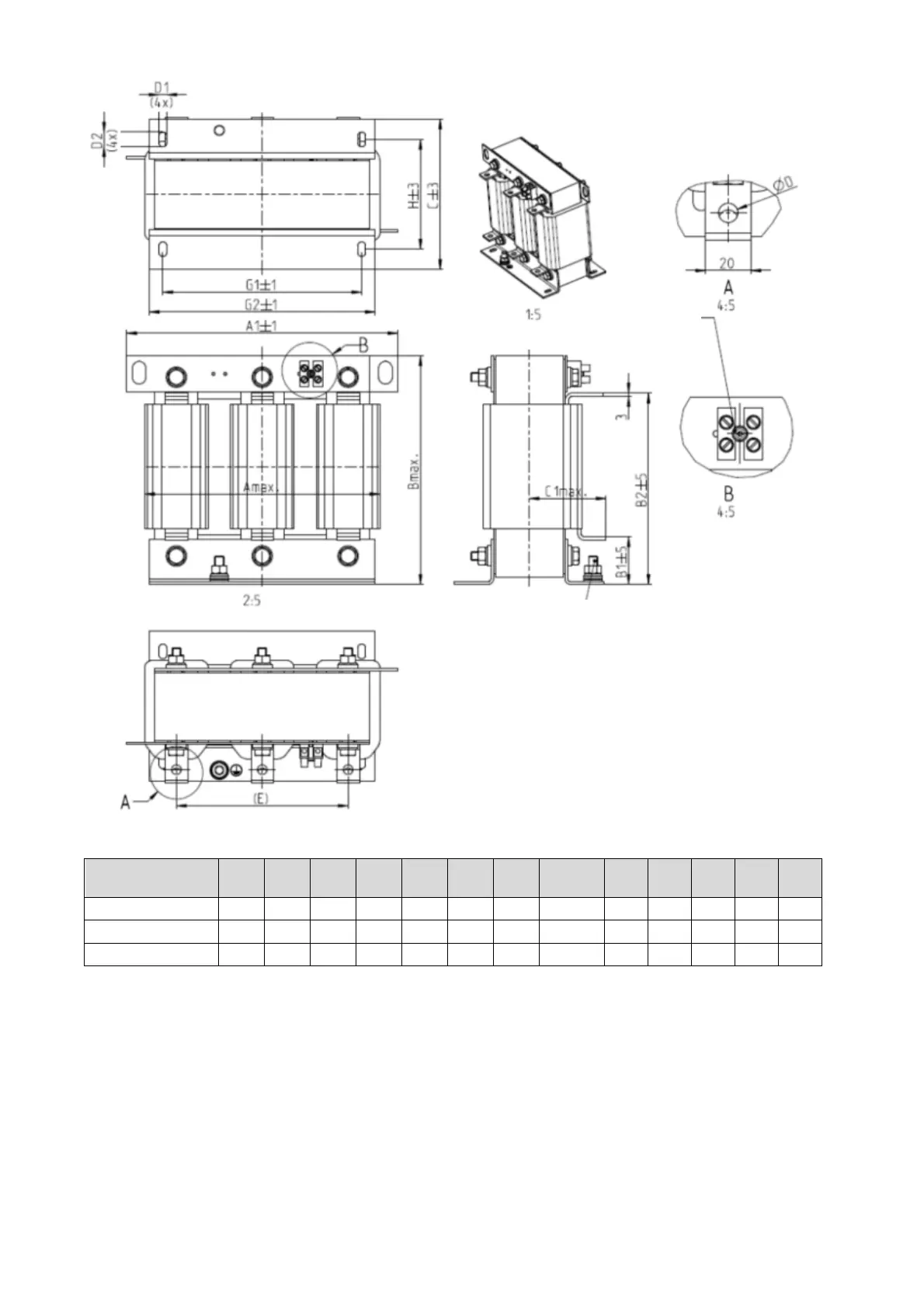

Figure 7-21
Table 7-37

Delta CP2000 Series Specifications

General

Output Voltage	0 ~ Input Voltage
Communication Interface	RS-485
Storage Temperature	-20°C to 60°C
Input Voltage	200-240V AC, 380-480V AC
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
