Chapter 7 Optional AccessoriesCP2000
7-96
Frame B
Model『MKC-BFKB』Capacitor Fan
Applicable model
VFD075CP23A-21; VFD110CP23A-21; VFD110CP43B-21; VFD110CP4EB-21; VFD150CP23A-21;
VFD150CP43B-21; VFD150CP4EB-21; VFD185CP43B-21; VFD185CP4EB-21; VFD055CP53A-21;
VFD075CP53A-21; VFD110CP53A-21; VFD150CP53A-21
Disconnect fan power and pull out the fan by using flathead screwdriver. (As shown in the larger picture)
Frame C
Model『MKC-CFKM』Heat Sink Fan
Applicable model
Single fan kit applicable models (only fan kit 1 is required to be installed):
VFD220CP43A-21; VFD220CP4EA-21; VFD300CP43B-21; VFD300CP4EB-21; VFD370CP43B-21;
Dual fan kit applicable models (both fan kit 1 and 2 are required to be installed):
VFD185CP23A-21; VFD220CP23A-21; VFD300CP23A-21; VFD370CP4EB-21
Model『MKC-CFKM1』Heat Sink Fan
Applicable model
VFD185CP63A-21; VFD220CP63A-21; VFD300CP63A-21; VFD370CP63A-21

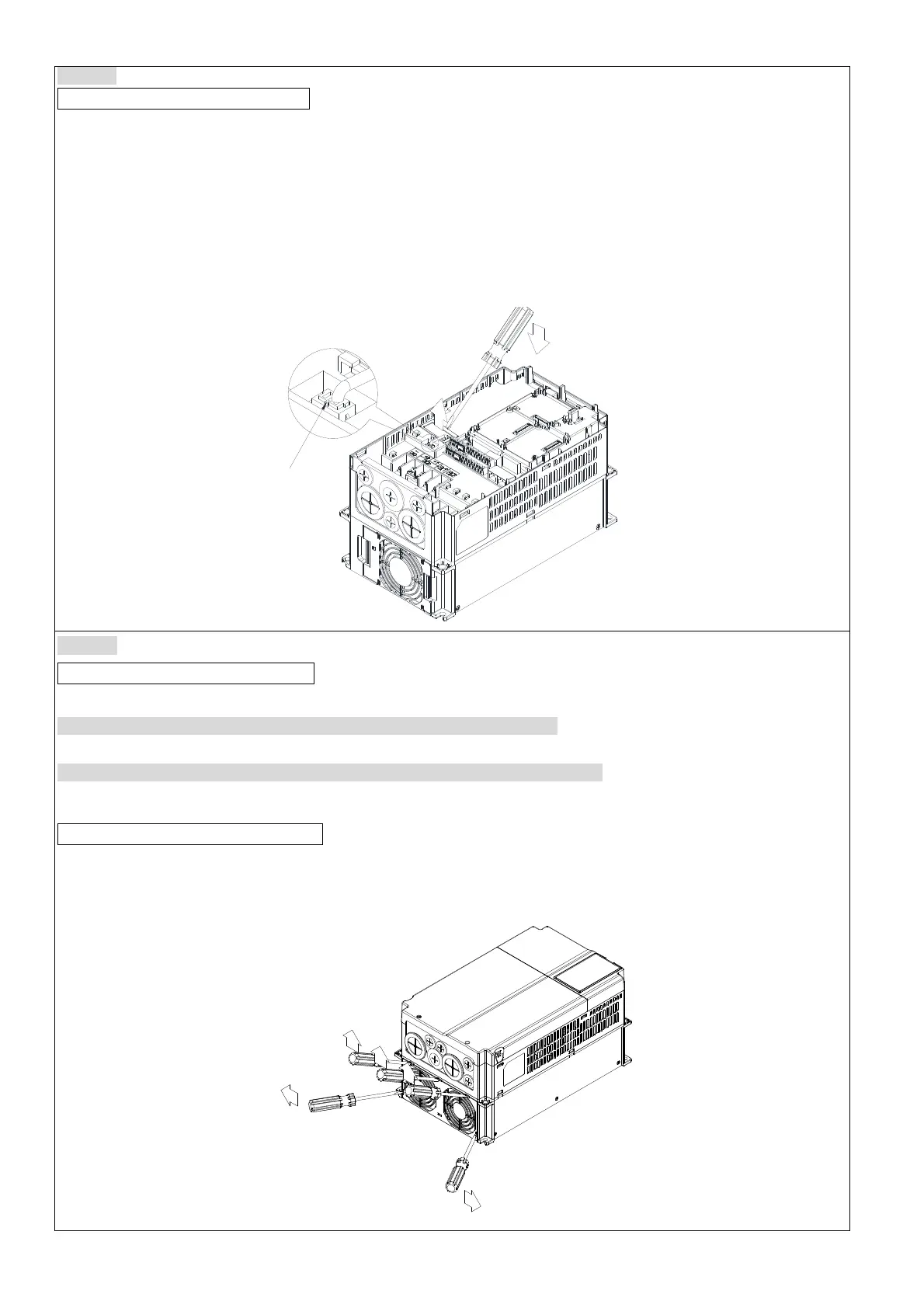

1. (As shown Figure 1) Before removing the fan, remove the cover by using a slotted screwdriver.
Figure 1
Disconnect fan power and pull out the
fan by flathead screwdriver
Pay attention to direction of the
latch during the installation
