Delta CP2000 Series User Manual

Chapter 12 Description of Parameter SettingsCP2000
12.1-02-9
time for confirmation. The confirmation prevents interference that could cause error in the input to
the digital terminals. In the meanwhile, it delays the response time, though confirmation improves
accuracy.


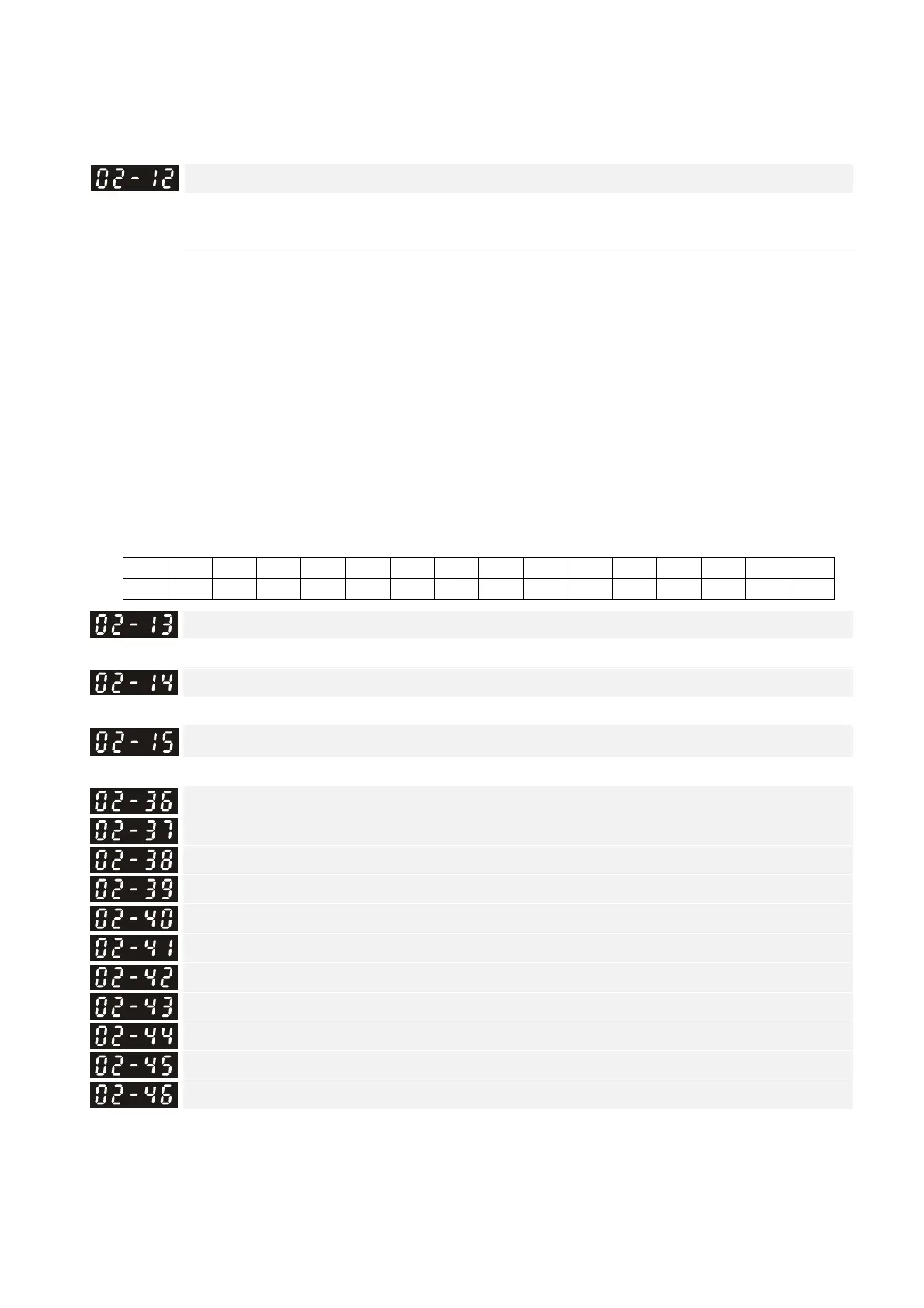

Multi-function Input Mode Selection
Default: 0000h
Settings 0000h–FFFFh (0: N.O.; 1: N.C.)
 The parameter setting is in hexadecimal.
 This parameter sets the status of the multi-function input signal (0: normal open；1: normal close)
and it is not affected by the status of SINK / SOURCE.
 bit2–bit15 correspond to MI1–MI14.
 The default for bit0 is FWD terminal, and the default for bit1 is REV terminal. You cannot use this
parameter to change the input mode.
 You can change the terminal ON / OFF status through communications.
For example, MI1 is set to 1 (multi-step speed command 1), MI2 is set to 2 (multi-step speed
command 2). Then the forward + 2
nd
step speed command=1001
2
=9
10
. As long as Pr.02-12=9 is
set through communications, there is no need to wire any multi-function terminal to run forward
with the second step speed.
bit15 bit14 bit13 bit12 bit11 bit10 bit9 bit8 bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0
MI15 MI14 MI13 MI12 MI11 MI10 MI8 MI7 MI6 MI5 MI4 MI3 MI2 MI1 REV FWD
Multi-function Output 1 (Relay1)
Default: 11
Multi-function Output 2 (Relay2)
Default: 1
Multi-function Output 3 (Relay3)
Default: 66
Output Terminal of I/O Extension Card (MO10) or (RA10)
Output Terminal of I/O Extension Card (MO11) or (RA11)
Output Terminal of I/O Extension Card (RA12)
Output Terminal of I/O Extension Card (RA13)
Output Terminal of I/O Extension Card (RA14)
Output Terminal of I/O Extension Card (RA15)
Output Terminal of I/O Extension Card (MO16 Virtual Terminal)
Output Terminal of I/O Extension Card (MO17 Virtual Terminal)
Output Terminal of I/O Extension Card (MO18 Virtual Terminal)
Output Terminal of I/O Extension Card (MO19 Virtual Terminal)
Output Terminal of I/O Extension Card (MO20 Virtual Terminal)
Default: 0
Settings
0: No function
1: Indication during RUN

Delta CP2000 Series Specifications

General

Output Voltage	0 ~ Input Voltage
Communication Interface	RS-485
Storage Temperature	-20°C to 60°C
Input Voltage	200-240V AC, 380-480V AC
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
