Delta CP2000 Series

Chapter 3 UnpackingCP2000
3-23

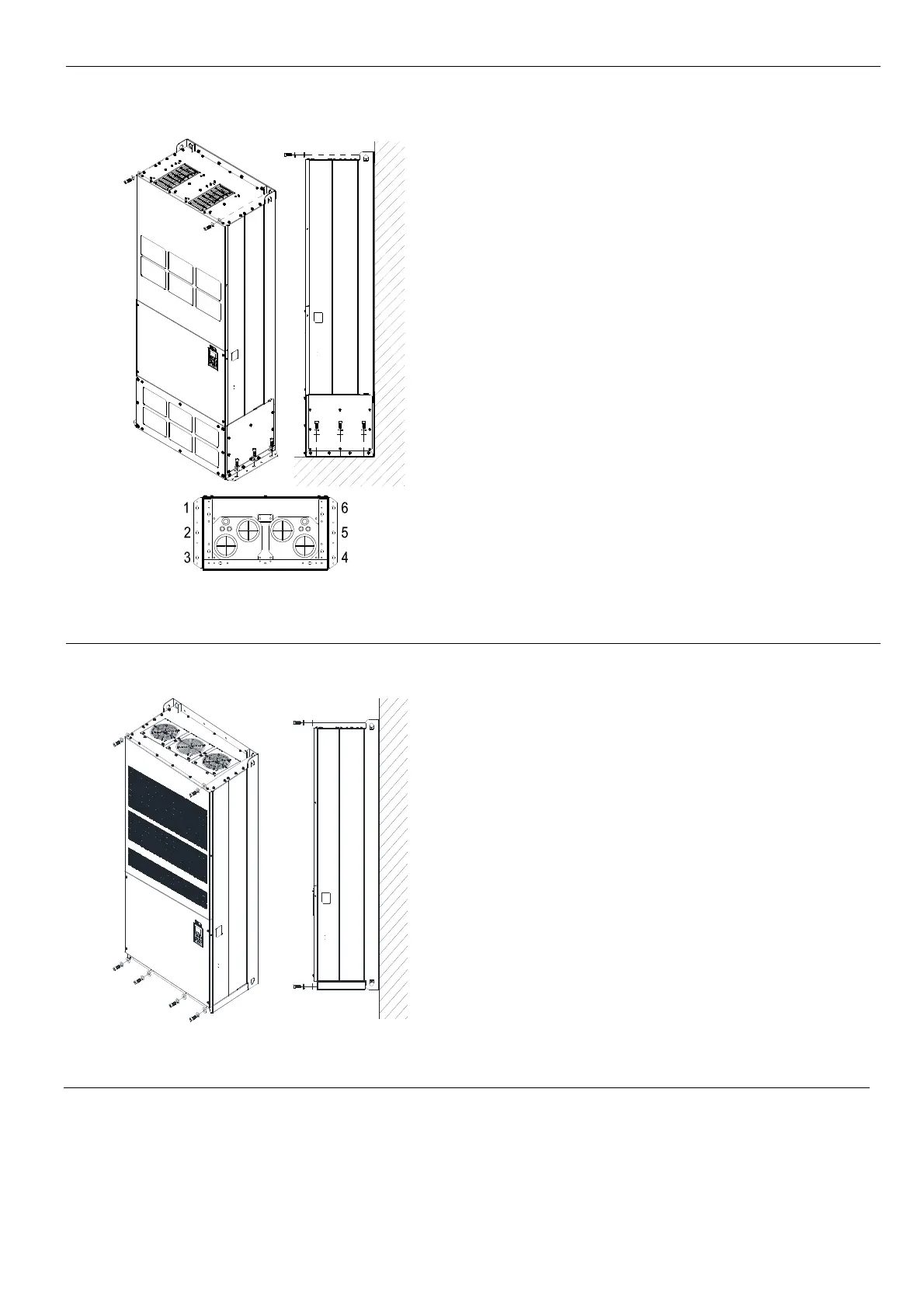

H3：VFDXXXXCPXXC-21
Fix the drive from the outside
Screw M12*8
Torque: 340–420 kg-cm / [295.1–364.6 lb-in.] /
[33.3–41.2 Nm]
Figure 3-75
H1: VFDXXXXCP63A-00
Screw M12*6
Torque: 340–420 kg-cm / [295.1–364.6 lb-in.] /
[33.3–41.2 Nm]
Figure 3-76
Fix the drive from the outside
