Delta CP2000 Series

Chapter 16 PLC Function Applications│CP2000
16-89

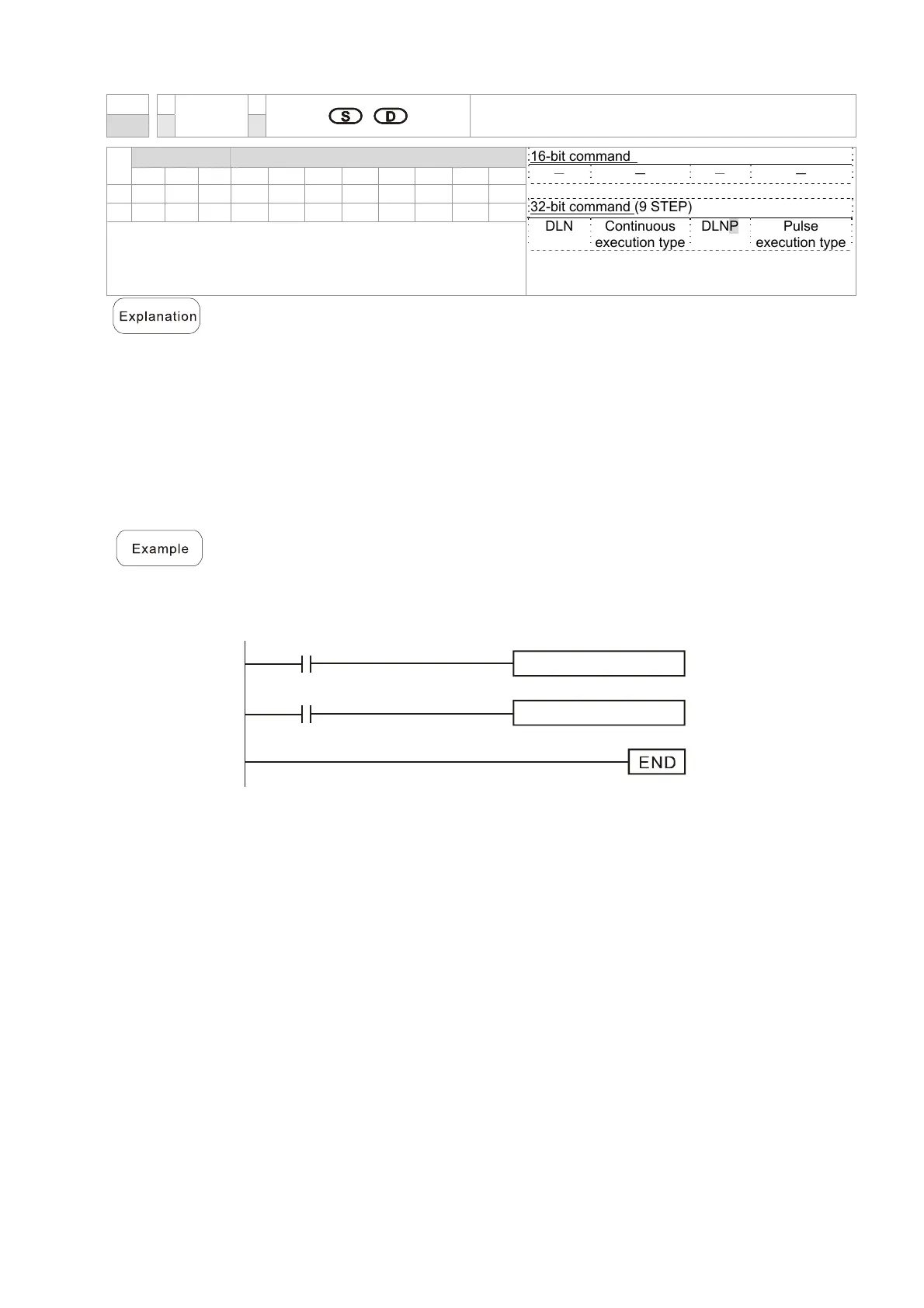

API
LN
Binary floating point number obtain logarithm
125
D P
Bit device Word device
16-bit command
－ － － －
32-bit command (9 STEP)
DLN Continuous
execution type
DLNP Pulse
execution type
Flag signal: none
X Y M K H KnX KnY KnM T C D
S
＊ ＊ ＊
D
＊
Notes on operand usage:
Please refer to the function specifications table for each device in
series for the scope of device usage
 S: operation source device. D: operation results device.
 Taking e =2.71828 as a base, S is the exponent in the EXP operation.
 [ D +1，D ]=EXP
[
S +1，S
]
 Valid regardless of whether the content of S has a positive or negative value. The
designated register D must have a 32-bit data format. This operation is performed
using floating-point numbers, and S must therefore be converted to a floating
point number.
 Content of operand D =e
S
; e=2.71828， S is the designated source data
 When M0 is On, the value of (D1, D0) will be converted to a binary floating point
number, which will be stored in register (D11, D10).
 When M1 is On, the EXP operation is performed on the exponent of (D11, D10);
its value is a binary floating point number stored in register (D21, D20).
M0
M1
DFLT D0 D10
DLN D10 D20
