4 Temperature Measurement Module DVP04PT-E2
DVP-ES2 Module Manual
-22

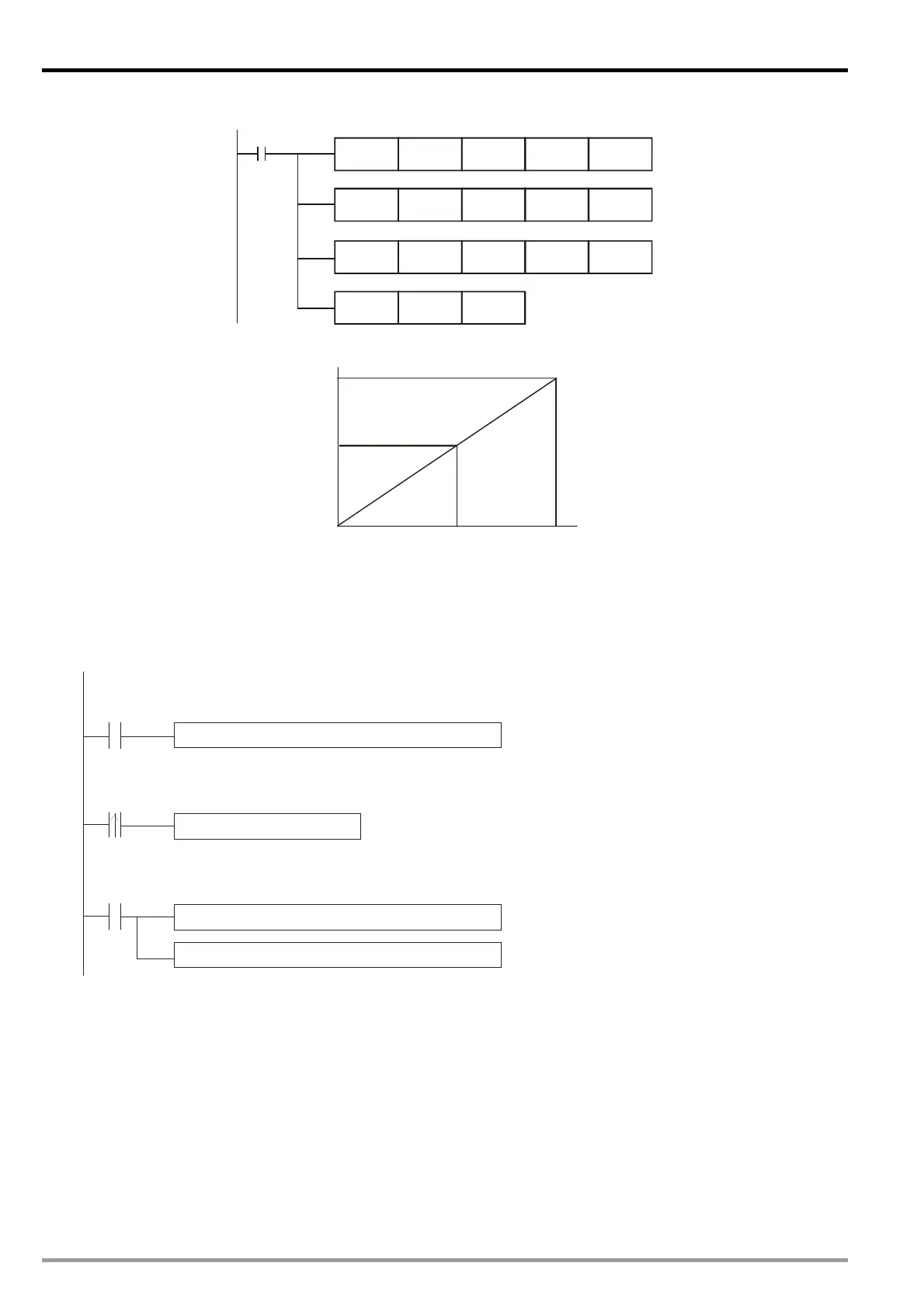

4. Program:
M1
FROM K0 K134 D10
K1
MOV D10 D9910
TOP
K0 K129 K32000
K1
TOP
K0 K130 K0
K1
5. The relation between digital input and output current:
Digital input
32000
(100%)
16000
(50%)
0
(0%)
4mA
12mA
20mA
Output
current
4.9.3 PID Application Example
Tar get s:
1. Set up target temperature.
2. Set up "auto-tuning”, enable PID function and wait for the completion of "auto-tuning”
3. Once the “auto-tuning” is completed, you only need to enable manual PID for the next time.
M100
TOP
K0 K120
D500 K1
Enable M100 to set up target temperature in D500.
Read average temperature at C 1 every 1 second.H
M1013
MOV
D9900 D0
M0
Set up PID auto-tuning and PID RUN at M0.
TOP
K0 K136
K1
K1
TOP
K0 K135
K1
K1
To Next Page
