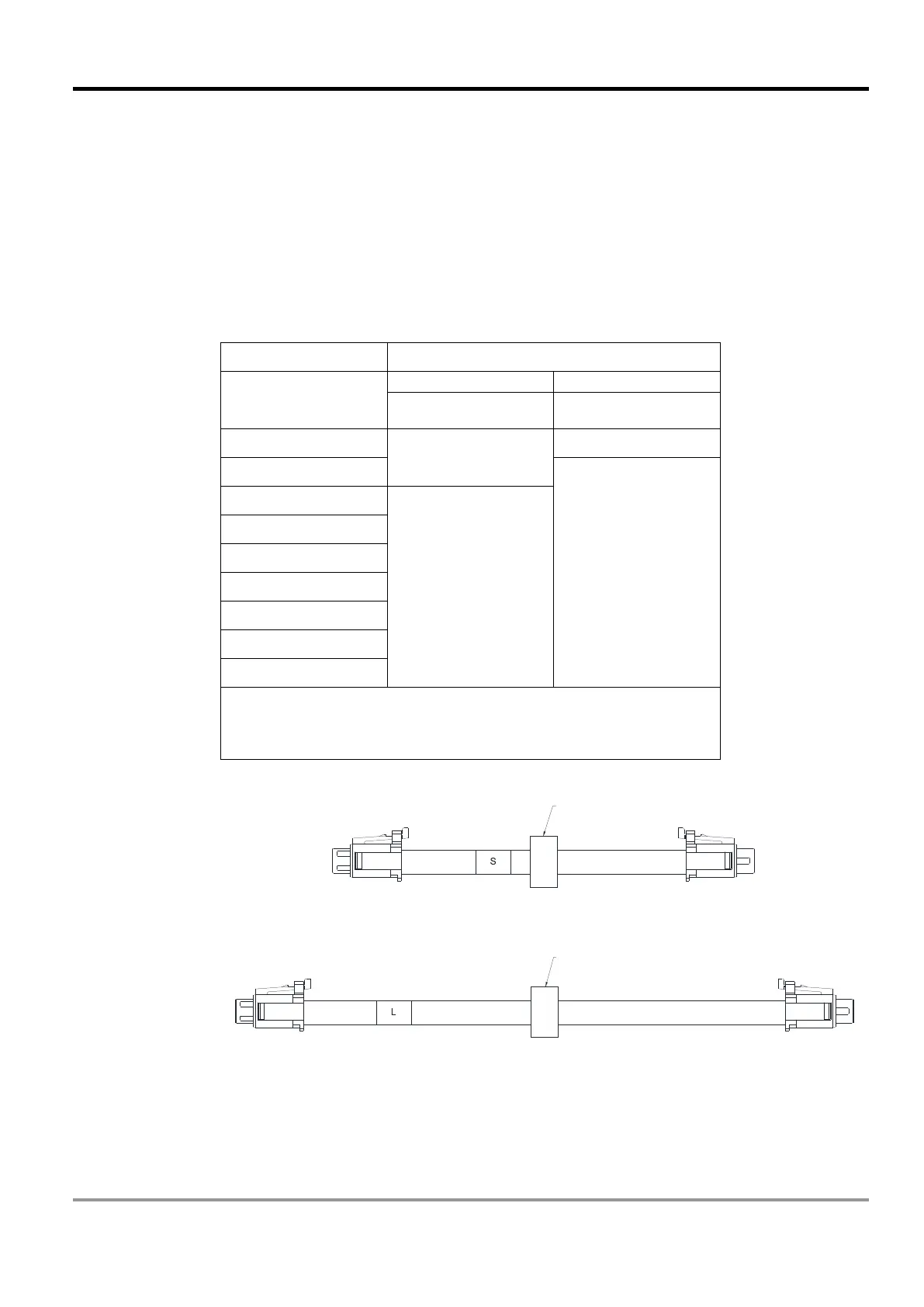

2.2 Install and Remove Option Cards
2.2.1 Communication Cable and Grounding
 Communication Cable
You have to order a communication card together with a communication cable, otherwise you won’t
be able to use the communication card. Verify the communication card model name and the mounting
position to mount that communication card, then select the right communication cable. There are two
kinds of communication cable, select the right cable in the table below according to the mounting
position.
Communication card CMM-EC02 / CMM-EC03 *
Frame
Mounting Position 1
Mounting Position 2
Communication
cable
Communication
cable
A
CBM-CL01A
CBM-CL01A
B
CBM-CL02A
C
CBM-CL02A
D
E
F
G
H
I
NOTE: CMM-EC02/ CMM-EC03 communication card is shipped with
a mounting box. Order CBM-CL01A or CBM-CL02A together with
CMM-EC02/ CMM-EC03 according to the mounting position.
CBM-CL01A
Fig 2-5
CBM-CL02A
Fig 2-6
Core
Core
